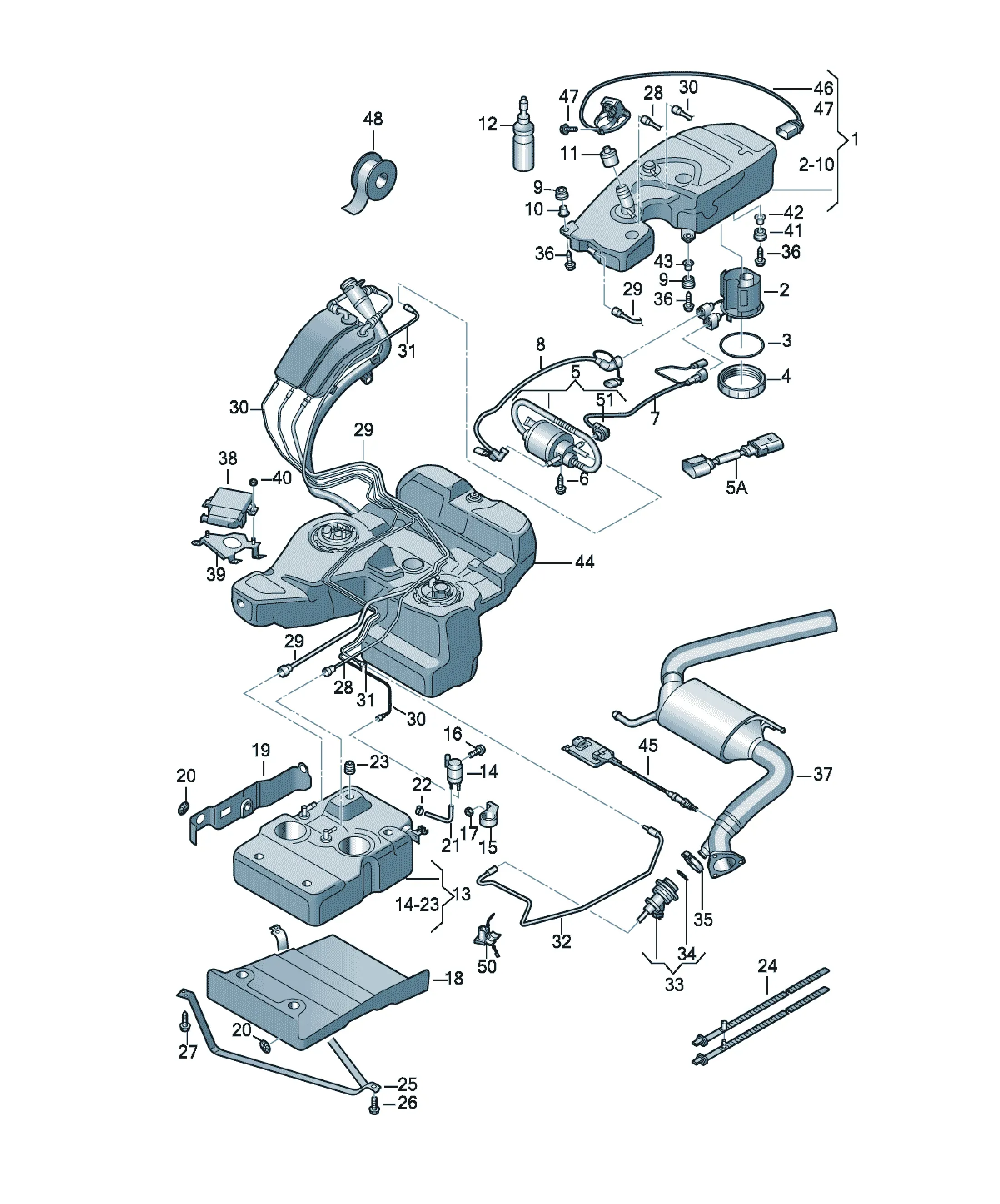

AdBlue reduction agent system

[Name] [QTY]

Filling hose for AdBlue urea solution 1

Items supplied

Operating instructions 1

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CNRB 1

D - 22.04.2013>> - 26.08.2013

Replacements: 4L0131878R

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CLZB 1

D - 28.05.2012>> - 26.08.2013

Replacements: 4L0131878S

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CNRB 1

D - 26.08.2013>>

Items supplied

4L0131911B Supply line for reduction agent feed 1

4L0131912B Supply line for reduction agent return 1

4L0131880D Reduction agent tank Active 1

4L0131899M Pump for reduction agent 1

8R0131975 Union nut 1

4L0131907D Storage container 1

8K0131357 O-ring 125X5 1

8K0201840F Rubber bush 2

4L0201693A bush 1

N 90996102 Hex collared bolt M5X25 1

4L0201840 Rubber bush 1

4L0201693 bush 1

4L0201693B bush 1

4L0133093A switch with loom 1

N 10721301 Hexagon socket head panel bolt 3X12 1

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CLZB 1

D >> - 28.05.2012

Replacements: 4L0131878P

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CNRB 1

D - 09.07.2012>> - 22.04.2013

Replacements: 4L0131878T

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CNRB 1

D >> - 09.07.2012

Replacements: 4L0131878Q

[Name] [Note] [Model info] [QTY]

Reduction agent tank Active CLZB 1

D - 26.08.2013>>

Items supplied

4L0131911B Supply line for reduction agent feed 1

4L0131912B Supply line for reduction agent return 1

4L0131880D Reduction agent tank Active 1

4L0131899M Pump for reduction agent 1

8R0131975 Union nut 1

4L0131907D Storage container 1

8K0131357 O-ring 125X5 1

8K0201840F Rubber bush 2

4L0201693A bush 1

N 90996102 Hex collared bolt M5X25 1

4L0201840 Rubber bush 1

4L0201693 bush 1

4L0201693B bush 1

[Name] [QTY]

Rubber bush 2

[Name] [QTY]

End cap 1

17/19 SW UMFANG BORDWERKZEUG

D - 23.06.2014>>

[Name] [QTY]

End cap 1

D >> - 23.06.2014

Replacements: 4L0131980D

[Name] [Note] [QTY]

Urea solution AdBlue 10 Ltr. 1

[Name] [Note] [QTY]

Urea solution AdBlue 1890ML X

[Name] [Note] [QTY]

Urea solution AdBlue 5 ltr. 1

also use: 000 012 499 1

Accompanying details: 000012499

[Name] [Note] [QTY]

Urea solution AdBlue 200ltr. 1

Replacements: G 052910D9

[Name] [Note] [QTY]

Reduction agent tank Passive 1

D >> - 01.09.2014

Replacements: 4L0131877D

Items supplied

4L0131879B Reduction agent tank lower 1

4L0131901 Transfer pump for reduction agent 1

4L0018941 underrun bar 1

4L0201307A Heat shield plate 1

N 10160205 Hex collared bolt M6X25 1

N 01100614 Hexagon nut M6 1

7M0813549A Rubber bush 1

N 90335004 Clamping washer 5X30 6

8K0131853TA angled hose 1

N 10198301 Ear crimp hose clamp 13.3X7X0.6 2

8K0201274B Damping 4

[Name] [Note] [QTY]

Reduction agent tank Passive 1

D - 01.09.2014>>

[Name] [QTY]

Transfer pump for reduction agent 1

D - 01.09.2014>>

Replacements: 4L0131901C

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Transfer pump for reduction agent 1

D >> - 01.09.2014

Replacements: 4L0131901A

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Rubber bush 2

[Name] [Note] [QTY]

Hex collared bolt M5X25 1

[Name] [Note] [QTY]

Hexagon nut M5 1

[Name] [QTY]

underrun bar 1

[Name] [QTY]

Heat shield plate 1

[Name] [Note] [QTY]

Storage container 1

also use: 8K0 131 357 1

8K0 131 975 1

Accompanying details: 8K0131357; 8K0131975

[Name] [QTY]

Clip X

[Name] [QTY]

angled hose 1

[Name] [Note] [QTY]

clamp 11,9X7X0,6 1

[Name] [QTY]

Damping 5

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

tensioning strap 1

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M10X45 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X40 2

[Name] [Note] [QTY]

Breather line 1

D - 13.08.2012>>

use if required: >>D13.08.2012

4L0 131 980 B 1

Accompanying details: 4L0131980B

[Name] [QTY]

Breather line 1

D >> - 13.08.2012

Replacements: 4L0131987H

[Name] [QTY]

Filler line for reducing agent 1

[Name] [Note] [QTY]

O-ring 125X5 1

[Name] [QTY]

Transfer line for reducing agent 1

[Name] [QTY]

Metering line from pump for reducing agent 1

D >> - 27.08.2012

Replacements: 4L0131983D

[Name] [QTY]

Metering line from pump for reducing agent 1

D - 27.08.2012>>

[Name] [QTY]

Metering line for reducing agent injector 1

D >> - 20.08.2012

Replacements: 4L0131984C

[Name] [QTY]

Metering line for reducing agent injector 1

D - 20.08.2012>>

[Name] [Note] [Model info] [QTY]

Injector for reduction agent CLZB 1

also use: 3C0 253 725 1

Accompanying details: 3C0253725

mating connector

4L0972571 flatcontact housing with cable 2 pin 1

Injector for reduction agent black

L=5281MM

[Name] [Note] [Model info] [QTY]

Injector for reduction agent CNRB 1

also use: 3C0 253 725 1

(for modified vehicles)

Accompanying details: 3C0253725

Items supplied

Injector for reduction agent 1

3C0253115A Seal 1

DOSIEREINHEIT SCR-SYSTEM

mating connector

7L0973702 Flat contact housing 2 pin 1

With seal

[Name] [Note] [Model info] [QTY]

Injector for reduction agent CNRB 1

also use: 3C0 253 725 1

Accompanying details: 3C0253725

mating connector

4L0972571 flatcontact housing with cable 2 pin 1

Injector for reduction agent black

L=5281MM

[Name] [QTY]

Seal 1

[Name] [QTY]

clamp 1

[Name] [Note] [QTY]

Hex collared bolt M6X32 3

[Name] [Note] [QTY]

Exhaust pipe *

see illustration: 253-050

[Name] [QTY]

Control unit for reduction agent metering system 1

[Name] [QTY]

Retainer for control unit 1

[Name] [QTY]

Union nut 1

[Name] [Note] [QTY]

Hexagon nut M5 1

[Name] [QTY]

Rubber bush 2

[Name] [QTY]

bush 1

[Name] [QTY]

bush 1

[Name] [Note] [QTY]

Fuel tank *

see illustration: 201-000

[Name] [Note] [QTY]

NOx-Sensor for emissions control *

see illustration: 906-015

[Name] [QTY]

switch with loom 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 3X12 1

[Name] [Note] [QTY]

webbing adhesive tape 25X1,2X5000 1

[Name] [QTY]

Pump for reduction agent 1

Contains:

Pressure sensor

Replacements: 4L0131899M

[Name] [Note] [QTY]

Cable tie with holder for plastic pin: 5X300 6

5

only for: 4L0 131 984

[Name] [QTY]

Pressure sensor 1

Replacements: 8K0131225D

[Name]

Not for this model

[Name] [Note] [QTY]

Hex collared bolt M5X25 1

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent feed CNRB 1

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent feed CLZB 1

D - 25.06.2012>>

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent feed CLZB 1

D >> - 25.06.2012

Replacements: 4L0131911B

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent return CLZB 1

D >> - 25.06.2012

Replacements: 4L0131912B

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent return CNRB 1

[Name] [Note] [Model info] [QTY]

Supply line for reduction agent return CLZB 1

D - 25.06.2012>>

[Name] [QTY]

bush 1
