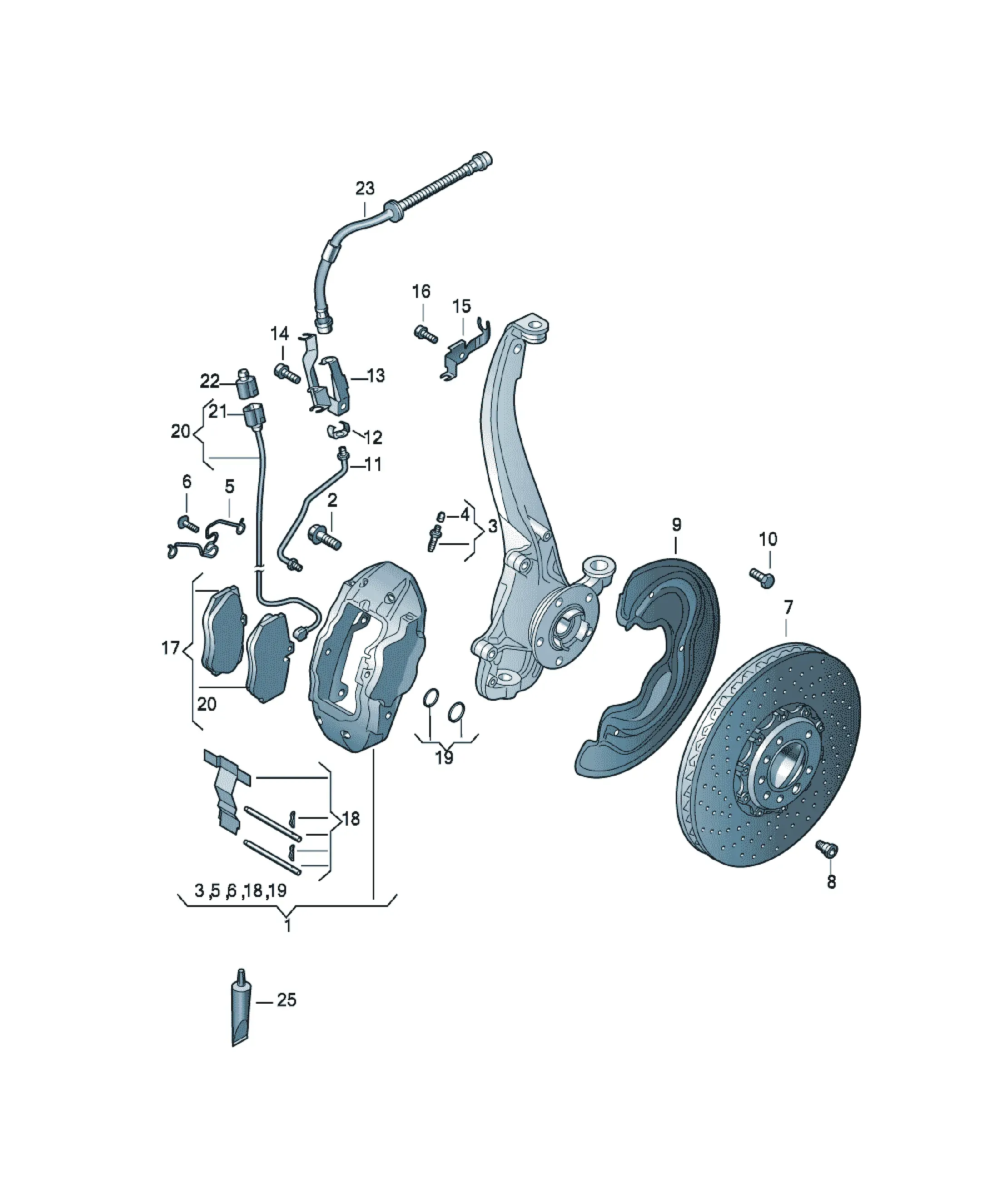

Brake caliper

Assembly diagrams

2 diagrams

Parts

34 parts

4L0615108B Offers

[Name] [Note] [QTY]
caliper without brake pads right 1
4L0615107B Offers

[Name] [Note] [QTY]
caliper without brake pads left 1
N90308607 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X14 8
4L0614161 Offers

[Name] [Note] [QTY]
brake pipe from brake hose to piston housing left 1
4L0614162 Offers

[Name] [Note] [QTY]
brake pipe from brake hose to piston housing right 1
4D0611715B Offers

[Name] [QTY]
retaining spring 2
7L0971004A Offers

[Name] [Note] [QTY]
Bracket right 1
Replacements: 7P6971004
7L0971003A Offers

[Name] [Note] [QTY]
Bracket left 1
Replacements: 7P6971003
N90308607 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X14 8
7P0614514B Offers

[Name] [Note] [QTY]
Bracket right 1
D - 14.05.2012>>
7L0614514A Offers

[Name] [Note] [QTY]
Bracket right 1
D >> - 14.05.2012
7P0614513B Offers

[Name] [Note] [QTY]
Bracket left 1
D - 14.05.2012>>
7L0614513A Offers

[Name] [Note] [QTY]
Bracket left 1
D >> - 14.05.2012
N10335202 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X12 2
4L0698151B Offers

[Name] [Note] [QTY]
1 set of brake pads for disk brake 420X40MM 1
repair set
4F0615115R disc brake pad left inner 1
4F0615115S disc brake pad left outer 1
4F0615115T disc brake pad right inner 1
4F0615115AA disc brake pad right outer 1
4L0615437 contacts 2
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
4F0698269A Offers

[Name] [QTY]
1 set attachment parts 1
repair set
3W0615157 Cup expander spring 2
3W0615145 Locking pin 4
3W0615307 split pin 4
4F0698471B Offers

[Name] [QTY]
Set of gaskets for brake caliper housing 2
repair set
seal ring 8
Seal 8
N90685403 Offers

[Name] [Note] [QTY]
Hexagon bolt M16X1,5X48 4
4L0615437 Offers

[Name] [QTY]
contacts 2
brake pad wear indicator
1J0973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
black
only to be used for: 7L0 907 637
counterpart to: 1J0 973 802
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973802 Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 2
black
counterpart to: 1J0 973 702
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
Flat male connector with detent lug 1,5
000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 1,5
000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
Flat male connector with detent lug 1,5
[Name] [Note]
Brake hose
see illustration: 611-020
Use item: 1
G052150A2 Offers

[Name] [Note] [QTY]
Lithium lubricating grease 180G X
1K0615273A Offers

[Name] [Note] [QTY]
Breather valve M10X1X29MM 4
211611483 Offers

[Name] [QTY]
dust cap 4
4L0615384A Offers

[Name] [Note] [QTY]
Cable holder left a. right 2
N90995303 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M8X12 4
4L0615302E Offers

[Name] [Note] [QTY]
Ceramic brake disc (vented) 420X40MM 5/130 1
punched
D - 06.06.2011>> right
Replacements: 4L0615302D
4L0615301C Offers

[Name] [Note] [QTY]
Ceramic brake disc (vented) 420X40MM 5/130
punched
also use: 4L0 615 302 C 1
D >> - 06.06.2011 left 1
Accompanying details: 4L0615302C
Replacements: 4L0615301E
4L0615302C Offers

[Name] [Note] [QTY]
Ceramic brake disc (vented) 420X40MM 5/130 1
punched
also use: 4L0 615 301 C 1
D >> - 06.06.2011 right
Accompanying details: 4L0615301C
Replacements: 4L0615302E
4L0615301E Offers

[Name] [Note] [QTY]
Ceramic brake disc (vented) 420X40MM 5/130
punched
D - 06.06.2011>> left 1
Replacements: 4L0615301D
N91028202 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M12X1,5X16X19 2
4L0407722A Offers

[Name] [Note] [QTY]
Cover plate for brake disc right 1
4L0407721A Offers

[Name] [Note] [QTY]
Cover plate for brake disc left 1
