Audio-video system

CD changer

Assembly diagrams

17 diagrams

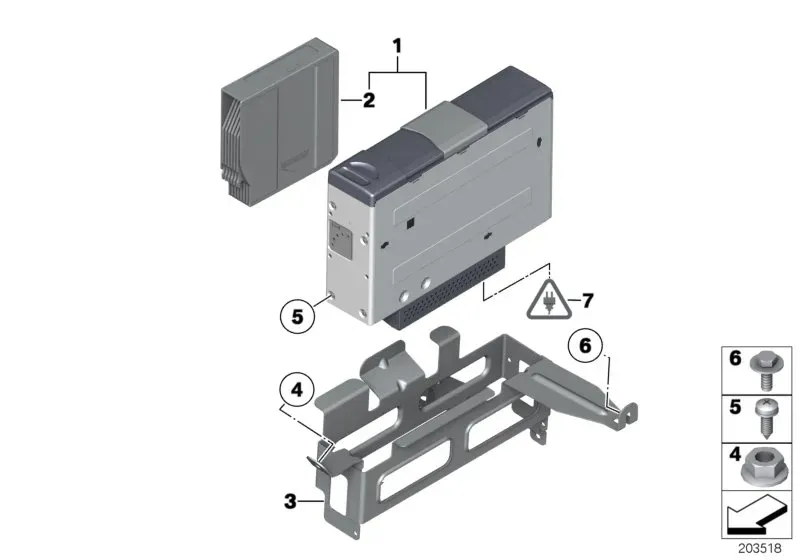

CD changer diagram

Parts

12 parts

Socket housing
61136901844 Offers

?
For vehicles to 03.2013
QTY: X
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
Bushing contact MQS with cable
61130005197 Offers

0,2- 0,5 QMM
For vehicles to 03.2013
QTY: X
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.006
Old part number: 61130030851
Bushing contact MQS with cable
61130056960 Offers

0,5-0,75 MM² AG
For vehicles to 03.2013
QTY: X
Reconditioned part number: ?
Replaceability: Replaceable in both directions
Weight: ?
Old part number: 61130006663
Envelope f optical waveguide
61138387214 Offers

2POL. /SCHWARZ
For vehicles to 03.2013
QTY: X
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 61130411826
65129196669 Offers

?
For vehicles to 03.2013
QTY: 1
Replaceability: Retroactively replaceable
Weight: 1864.070
Old part number: 65129181326
65129188893 Offers

?
For vehicles to 03.2013
QTY: 1
New part number: 65129196669
Replaceability: Retroactively replaceable
Weight: 1864.070
Old part number: 65129143439
65128364931 Offers

?
For vehicles to 03.2013
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.177
Old part number: 65120141196
65152990910 Offers

?
For vehicles to 03.2013
QTY: 1
Reconditioned part number: ?
Weight: 0.644
Old part number: ?
07119904022 Offers

M6-8-ZNFE SW
For vehicles to 03.2013
QTY: 2
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.003
Old part number: 88100397344
07119904307 Offers

M4X6
For vehicles to 03.2013
QTY: 4
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 88100390324
07119902932 Offers

M5X14
For vehicles to 03.2013
QTY: 3
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.004
Old part number: 88100412932
61136905200 Offers

?
For vehicles to 03.2013
QTY: 1
only in conjunction with
Reconditioned part number: ?
Weight: 0.003
Old part number: ?
