Audio-video system

Car radio

Assembly diagrams

15 diagrams

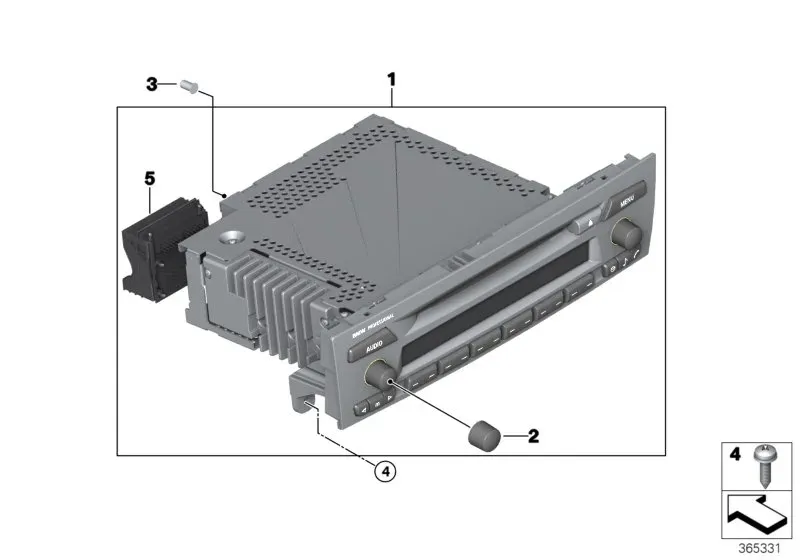

Car radio diagram

Parts

8 parts

Bushing contact MQS with cable
61130005197 Offers

0,2- 0,5 QMM
QTY: 24
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.006
Old part number: 61130030851
Bushing contact MQS with cable
61130056960 Offers

0,5-0,75 MM² AG
QTY: 24
Reconditioned part number: ?
Replaceability: Replaceable in both directions
Weight: ?
Old part number: 61130006663
Repair kit, socket housing
61132471240 Offers

12 POL.
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: ?
Old part number: 61138387204
Socket housing
61136905788 Offers

8 POL.
QTY: 2
Reconditioned part number: ?
Weight: 0.003
Old part number: ?
Socket contact ELO-Power 2,8x0,63
61138364832 Offers

0,5-1,0 MM²
QTY: 24
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.001
Old part number: 61130397203
Socket housing
61138384550 Offers

12 POL.
QTY: 2
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
Covering cap
61138387206 Offers

12 POL.
QTY: 1
Reconditioned part number: ?
Weight: 0.002
Old part number: ?
61138384580 Offers

16 POL.
QTY: 1
only in conjunction with
Reconditioned part number: ?
Weight: 0.017
Old part number: ?
