Fuel line

Fuel rail and injectors

Assembly diagrams

2 diagrams

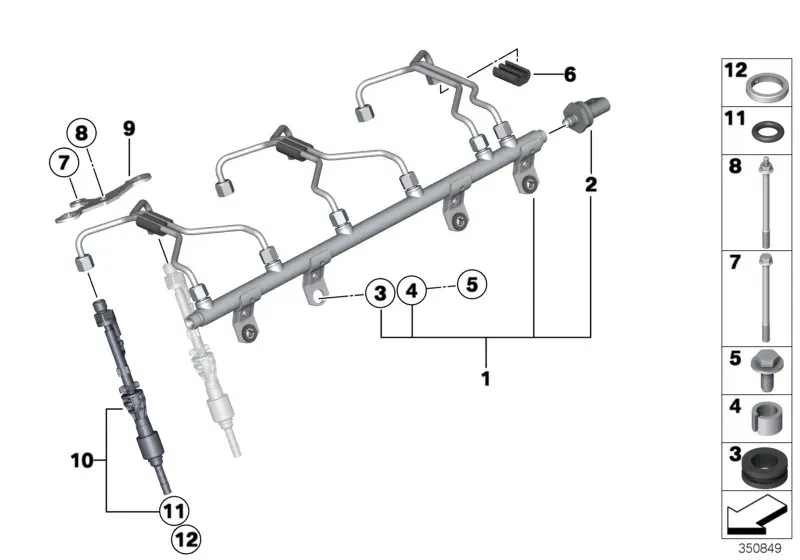

Fuel rail and injectors diagram

Parts

12 parts

Injector spacer sleeve
13537577649 Offers

?
QTY: 6
Reconditioned part number: ?
Weight: 0.003
Old part number: ?
13537649710 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.825
Old part number: 13537628049
13537620946 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.054
Old part number: 13537537319
13537628063 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
13537628064 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
13537583747 Offers

M7X18-U1-ZNFESW
QTY: 4
Reconditioned part number: ?
Weight: 0.010
Old part number: ?
13537582343 Offers

?
QTY: 3
Reconditioned part number: ?
Weight: 0.005
Old part number: ?
13537603841 Offers

M7X90
QTY: 3
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.026
Old part number: 13537545904
13537603773 Offers

M7X90
QTY: 3
Reconditioned part number: ?
Weight: 0.030
Old part number: ?
13647595405 Offers

?
QTY: 3
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.049
Old part number: 13537568600
13647597870 Offers

EU5
QTY: 6
Necessary for repair
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.115
Old part number: 13537568607
13537591006 Offers

?
QTY: 6
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
