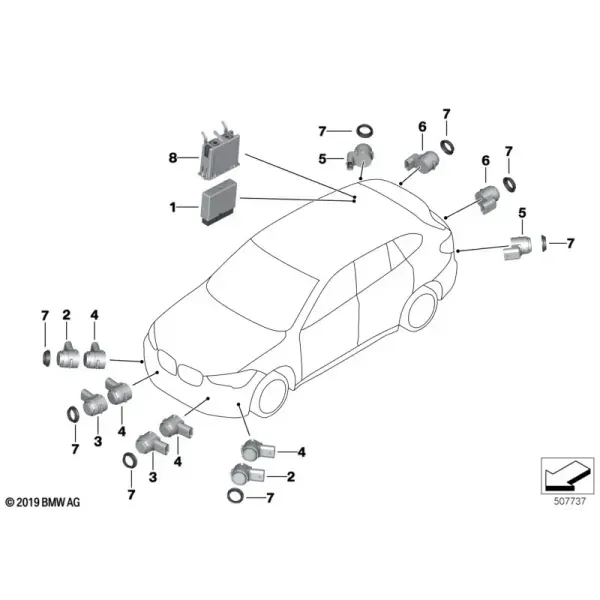

Parking assistance

Front Bumper Trim

Assembly diagrams

3 diagrams

Front Bumper Trim diagram

Parts

26 parts

Front bumper (primed)
51118090114 Offers

× 1
Front bumper (primed)
51118090117 Offers

× 1
Middle trim primed
51118092582 Offers

× 1
Towing eye cover (primed)
51118089905 Offers

× 1
Lower front bumper trim, painted
51118069089 Offers

× 1
Front bumper spoiler
51118072905 Offers

× 1
PDC/PMA front sensor mounting kit
51118090130 Offers

× 1
Left fog light bracket
51118069091 Offers

× 1
Right fog light bracket
51118069092 Offers

× 1
Headlight washer cover (primed) left
51118089909 Offers

× 1
Headlight washer cover (primed) right
51118089910 Offers

× 1
Left front bumper insert
51117428997 Offers

× 1
Front bumper insert right
51117428998 Offers

× 1
Left front bumper guide
51117428995 Offers

× 1
Right front bumper guide
51117428996 Offers

× 1
Pan head screw
07149321070 Offers

× 1
Screw
07129907535 Offers

× 1
Blind rivet
51718219511 Offers

× 1
Self-tapping screw with hexagon head
07119904288 Offers

× 1
Cross-recess screw for plastic
07146959892 Offers

× 1
Adhesive block
51187134021 Offers

× 1
Pan head screw
07146986938 Offers

× 1
Flat head screw
07119906254 Offers

× 1
Flat head screw with washer
07147406384 Offers

× 1
Fillister head screw with washer
07145A48F73 Offers

× 1
Rivet with expansion sleeve
16136753087 Offers

× 1
