Valves, sensors

Fuel rail and injectors

Assembly diagrams

4 diagrams

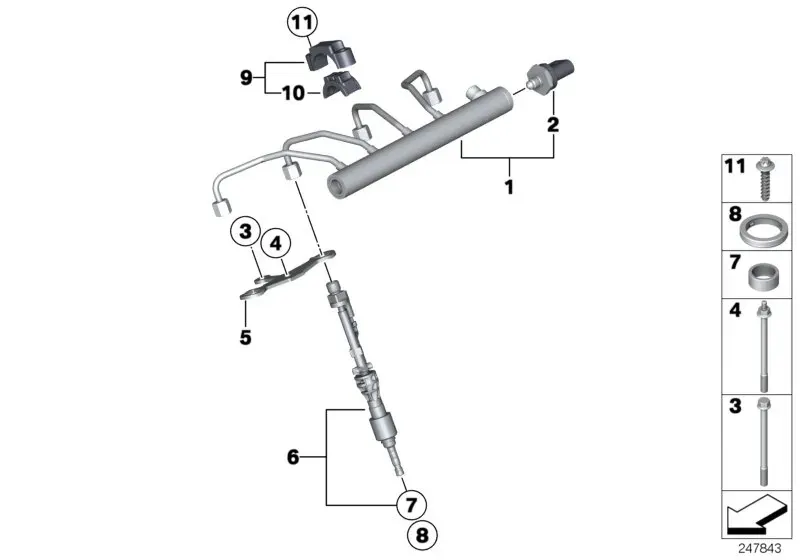

Fuel rail and injectors diagram

Parts

11 parts

Injector spacer sleeve
13537577649 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 0.003
Old part number: ?
13537585411 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.521
Old part number: ?
13537620946 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.054
Old part number: 13537537319
13537603841 Offers

M7X90
QTY: 2
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.026
Old part number: 13537545904
13537603773 Offers

M7X90
QTY: 2
Reconditioned part number: ?
Weight: 0.030
Old part number: ?
13647595405 Offers

?
QTY: 2
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.049
Old part number: 13537568600
13648625397 Offers

EU6
QTY: 4
Necessary for repair
Reconditioned part number: ?
Replaceability: Not retroactively replaceable
Weight: 0.150
Old part number: 13647597870,13537568607
13537591006 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
11127605327 Offers

?
QTY: 2
Reconditioned part number: ?
Weight: 0.015
Old part number: ?
11127593333 Offers

?
QTY: 4
Reconditioned part number: ?
Weight: 0.004
Old part number: ?
11127605328 Offers

K7X30
QTY: 4
Reconditioned part number: ?
Weight: 0.008
Old part number: ?
