Axle beam, axle suspension

Rear axle differential

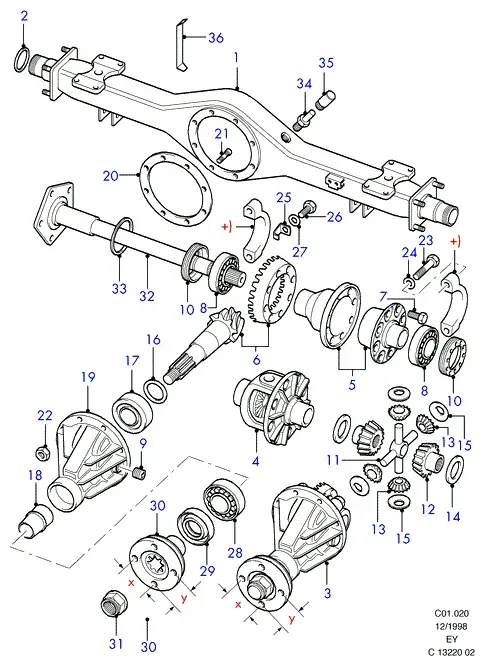

Assembly diagrams

7 diagrams

Parts

55 parts

6671894 Offers

Engineering number: 92VB 4010 EA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Housing - Rear Axle
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
1740192 Offers

Engineering number: E0A 4067
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Ring - Adjusting
(+)"Europe/MAL/VN"
1061921 Offers

Engineering number: 72VB 4211 AB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Spider - Differential Gear
(+)"Europe/MAL/VN"
Rear Axle Less Limited Slip Diff
6465216 Offers

Engineering number: 92VB 4236 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 2
description: Gear - Differential Side
(+)"Europe/MAL/VN"
Rear Axle Less Limited Slip Diff
6082703 Offers

Engineering number: 69CG 4215 CA
Date of manufacture: 01/08/1994 - 31/08/2000
: 4
description: Pinion - Differential
(+)"Europe/MAL/VN"
Rear Axle Less Limited Slip Diff
1422686 Offers

Engineering number: 2950E 4228 B
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Shim - Differential Gear
(+)"Europe/MAL/VN"
1486704 Offers

Engineering number: 70AG 4230 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 4
description: Washer - Differential Pinion Thrust
(+)"Europe/MAL/VN"
Rear Axle Less Limited Slip Diff
6465022 Offers

Engineering number: 92VB 4661 HA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.075-0.076"/1.895-1.920MM
(+)"Europe/MAL/VN"
6465026 Offers

Engineering number: 92VB 4661 MA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.079-0.080"/1.995-2.020MM
(+)"Europe/MAL/VN"
6465028 Offers

Engineering number: 92VB 4661 RA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.081-0.082"/2.045-2.070MM
(+)"Europe/MAL/VN"
6465020 Offers

Engineering number: 92VB 4661 FA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.073-0.074"/1.845-1.870MM
(+)"Europe/MAL/VN"
6465016 Offers

Engineering number: 92VB 4661 BA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.069-0.070"/1.745-1.770MM
(+)"Europe/MAL/VN"
6465019 Offers

Engineering number: 92VB 4661 EA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.072-0.073"/1.820-1.845MM
(+)"Europe/MAL/VN"
6465029 Offers

Engineering number: 92VB 4661 SA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.082-0.083"/2.070-2.095MM
(+)"Europe/MAL/VN"
6465025 Offers

Engineering number: 92VB 4661 LA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.078-0.079/1.970-1.995 MM
(+)"Europe/MAL/VN"
6465017 Offers

Engineering number: 92VB 4661 CA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.070-0.071"/1.770-1.795MM
(+)"Europe/MAL/VN"
6465015 Offers

Engineering number: 92VB 4661 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.068-0.069"/1.720-1.745MM
(+)"Europe/MAL/VN"
6465030 Offers

Engineering number: 92VB 4661 TA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.083-0.084"/2.095-2.120MM
(+)"Europe/MAL/VN"
6465027 Offers

Engineering number: 92VB 4661 NA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.080-0.081"/2.020-2.045MM
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
6465023 Offers

Engineering number: 92VB 4661 JA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.076-0.077"/1.920-1.945MM
(+)"Europe/MAL/VN"
6465021 Offers

Engineering number: 92VB 4661 GA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.074-0.075:/1.870-1.895MM
(+)"Europe/MAL/VN"
6465024 Offers

Engineering number: 92VB 4661 KA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.077-0.078"/1.945-1.970MM
(+)"Europe/MAL/VN"
6465018 Offers

Engineering number: 92VB 4661 DA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Shim - Driving Pinion
0.071-0.072"/1.795-1.820MM
(+)"Europe/MAL/VN"
6510926 Offers

Engineering number: 92VB 4617 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Bearing - Driving Pinion
(+)"Europe/MAL/VN"
6597300 Offers

Engineering number: 90GG 4662 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Spacer - Pinion Bearing
(+)"Europe/MAL/VN"
6719728 Offers

Engineering number: 92VB 4017 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Carrier Assy - Differential
(+)"Europe/MAL/VN"
1061716 Offers

Engineering number: 92VB 4233 B2C
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Seal Assy - Oil
(+)"Europe/MAL/VN"
7347007 Offers

Engineering number: 95VB 4035 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Gasket - Housing
(+)"Europe/MAL/VN"
6184936 Offers

Engineering number: E404830 S
Date of manufacture: 08/08/1994 - 31/08/2000
: 8
description: Bolt - Knurled
3/8" UNF
(+)"Europe/MAL/VN"
6463449 Offers

Engineering number: 114621 ES76A1
Date of manufacture: 08/08/1994 - 31/08/2000
: 8
description: Nut - Hex.
3/8" UNF
(+)"Europe/MAL/VN"
1606676 Offers

Engineering number: E400264 S
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Bolt - Hex.Head
1/2"UNC x 2"
(+)"Europe/MAL/VN"
1576068 Offers

Engineering number: 34909 S79
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Lockwasher - Tooth
1/2"
(+)"Europe/MAL/VN"
1740213 Offers

Engineering number: E0A 4143 B
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Plate - Locking
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
1583040 Offers

Engineering number: 304626 S80
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bolt - Hex.Head
5/16" UNC x 1/2"
(+)"Europe/MAL/VN"
1613374 Offers

Engineering number: E630173 S71M
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Lockwasher
5/16"
(+)"Europe/MAL/VN"
6510925 Offers

Engineering number: 92VB 4615 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bearing - Driving Pinion
(+)"Europe/MAL/VN"
1131733 Offers

Engineering number: RM93VB 4200 DA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Differential And Carrier Assy
X = 48MM/Y = 83MM
Exchange Part (Re-Manufactured)
Before ordering, please read the information in the blue envelope!
5.13
(+)"Europe/VN"
Rear Axle Less Limited Slip Diff
6098947 Offers

Engineering number: 81VB 4851 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Flange
X = 67MM/Y = 60MM
28 Spline
(+)"Europe/MAL/VN"
6781566 Offers

Engineering number: 93VB 4851 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Flange
X = 48MM/Y = 83MM
(+)"Europe/MAL/VN"
6465942 Offers

Engineering number: E422037 S80
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Nut - Hex. - Flanged
3/4" UNF
(+)"Europe/MAL/VN"
6463842 Offers

Engineering number: 92VB 4235 DA
Date of manufacture: 01/08/1994 - 31/08/2000
: 2
description: Shaft Assy - Rear Axle
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
Rear Axle Less Limited Slip Diff
6463841 Offers

Engineering number: 92VB 4235 CA
Date of manufacture: 01/08/1994 - 31/08/2000
: 2
description: Shaft Assy - Rear Axle
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
Rear Axle Limited Slip Differential
1402712 Offers

Engineering number: 2950E 1187 B
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: "O" Ring
(+)"Europe/MAL/VN"
1455116 Offers

Engineering number: W708293 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Adaptor - Axle Ventilation
(+)"Europe/MAL/VN"
7233796 Offers

Engineering number: 95VB 4022 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Vent Assy - Rear Axle
(+)"Europe/MAL/VN"
1072865 Offers

Engineering number: 86VB 4K217 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Baffle
(+)"Europe/MAL/VN"
1131738 Offers

Engineering number: RM93VB 4K343 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Differential Assy
Exchange Part (Re-Manufactured)
(+)"Europe/VN"
Rear Axle Limited Slip Differential
1131737 Offers

Engineering number: RM93VB 4202 AB
Date of manufacture: 01/02/1998 - 31/08/2000
: 1
description: Differential Assy
Exchange Part (Re-Manufactured)
(+)"Europe/VN"
Rear Axle Less Limited Slip Diff
6774740 Offers

Engineering number: 93VB 4K343 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Differential Assy
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
Rear Axle Limited Slip Differential
1668727 Offers

Engineering number: 93VB 4204 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Case - Differential
(+)"Europe/MAL/VN"
6464541 Offers

Engineering number: 92VB 4209 CA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Gear And Pinion Assy - Driving
Before ordering, please read the information in the blue envelope!
5.13
(+)"Europe/MAL/VN"
6095082 Offers

Engineering number: E400248 S
Date of manufacture: 08/08/1994 - 31/08/2000
: 8
description: Bolt - Hex.Head
3/8" UNF x 22 Durlock
(+)"Europe/MAL/VN"
1668917 Offers

Engineering number: W701264 S309
Date of manufacture: 08/08/1994 - 31/08/2000
: 8
description: Bolt - Hex.Head
M8 x 60MM
(+)"Europe/MAL/VN"
6519088 Offers

Engineering number: 92VB 4220 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bearing Assy - Differential
(+)"Europe/MAL/VN"
1475553 Offers

Engineering number: E450100 S76
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Plug - Filler
1/2" x 1/4"
(+)"Europe/MAL/VN"
