Position lights

Marker lamps

Assembly diagrams

11 diagrams

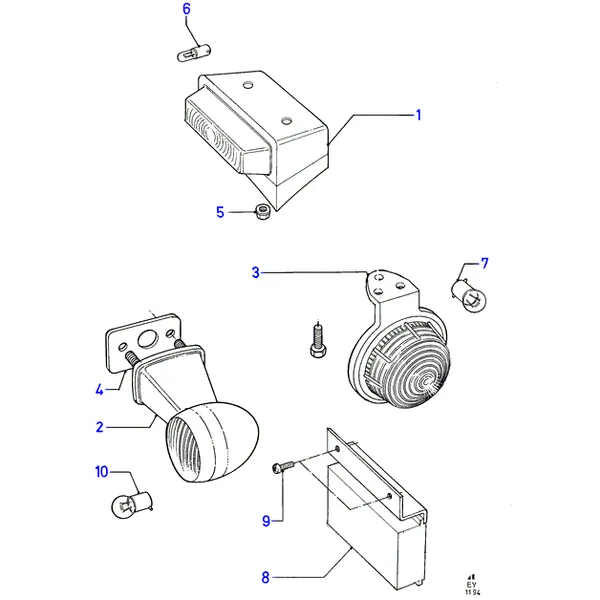

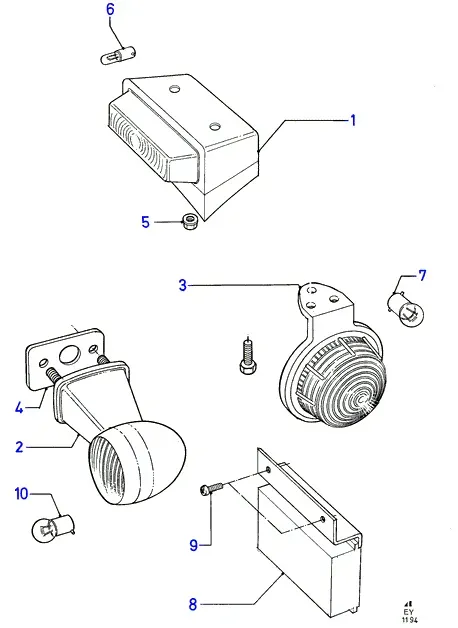

Marker lamps diagram

Parts

7 parts

6533435 Offers

Engineering number: 91VB 15K490 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Lamp Assy - Roof Marker
RH
(+)"Europe/Dom/Mal"
6533437 Offers

Engineering number: 91VB 15K491 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Lamp Assy - Roof Marker
LH
(+)"Europe/Dom/Mal"
1103609 Offers

Engineering number: 92VB 15442 AC
Date of manufacture: 08/08/1994 - 31/10/1999
: 1
description: Lamp Assy - Rear Width Marker
(+)"CH/D/DK/F/GB/I"
1459628 Offers

Engineering number: W700579 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Nut - Hex.
M5 x 7MM
(+)"Europe/Dom/Mal"
1591848 Offers

Engineering number: 81AG 13466 DA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bulb
12 Volt 4 WATT
(+)"Europe/Dom/Mal"
6090984 Offers

Engineering number: 81AG 13466 BA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bulb
12V - 5W
(+)"Europe/Dom/Mal"
6783473 Offers

Engineering number: W700787 S307
Date of manufacture: 08/08/1994 - 31/08/2000
: 8
description: Screw - Pan Head
(+)"Europe/Dom/Mal"
