Alternator

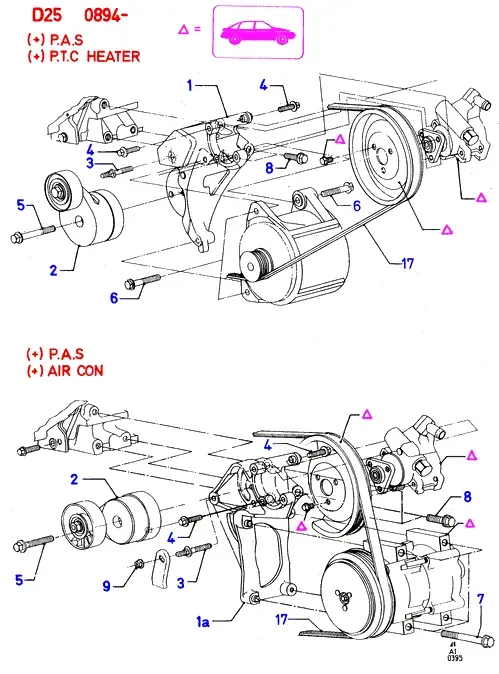

Alternator mounting

Assembly diagrams

4 diagrams

Parts

19 parts

1021293 Offers

Engineering number: 884F 3C631 AC
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Bracket
Less Ptc Heater
With Power Steering
1428647 Offers

Engineering number: E800157 S437
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Bolt - Hex.Head
M8 X 25MM
6004135 Offers

Engineering number: E600226 S72
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Bolt - Hex.Head
M8 x 130MM
6160457 Offers

Engineering number: E802648 S201
Date of manufacture: 01/08/1991 - 31/08/2000
: 3
description: Bolt - Hex.Head
M10
6129192 Offers

Engineering number: E800366 S72
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Bolt - Hex.Head
M8 X 45MM
6172584 Offers

Engineering number: E826428 S72
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Nut - Special
M8
1038062 Offers

Engineering number: 93VB 3K738 AD
Date of manufacture: 01/10/1992 - 31/08/2000
: 1
description: Bracket - Pump Support
1000459 Offers

Engineering number: 974F 6C301 AA
Date of manufacture: 01/10/1996 - 31/08/2000
: 1
description: Driving Belt
Less Ptc Heater
With Power Steering
1040754 Offers

Engineering number: 97WF 6C301 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Driving Belt
With Power Steering
1031370 Offers

Engineering number: E830898 S309
Date of manufacture: 01/01/1996 - 31/08/2000
: AR
description: Washer
7324746 Offers

Engineering number: 944F 3L596 AC
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bracket
With Power Steering
6992642 Offers

Engineering number: 944F 6A228 BA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Pulley Assy - Tension
With Power Steering
7100199 Offers

Engineering number: W702700 S309
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Stud
M8 x 40 + M8 x 16
Before ordering, please read the information in the blue envelope!
With Power Steering
1372612 Offers

Engineering number: W500025 S437
Date of manufacture: 01/08/1994 - 31/08/2000
: 4
description: Bolt - Hex.Head
M8 x 30MM
6992647 Offers

Engineering number: W500526 S309
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bolt - Hex.Head
M10 X 70MM
1373840 Offers

Engineering number: W702236 S439
Date of manufacture: 01/08/1994 - 31/08/2000
: 3
description: Bolt - Hex.Head
M10 x 55MM
1382115 Offers

Engineering number: W701331 S442
Date of manufacture: 01/08/1994 - 31/08/2000
: 4
description: Bolt - Hex.Head
M8 X 103MM
4660216 Offers

Engineering number: W500033 S437
Date of manufacture: 01/08/1994 - 31/08/2000
: 3
description: Bolt - Hex.Head
M10 X 25MM
1404957 Offers

Engineering number: W520102 S442
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Nut - Flanged
M8
