Interior upholstery

Interior and seats

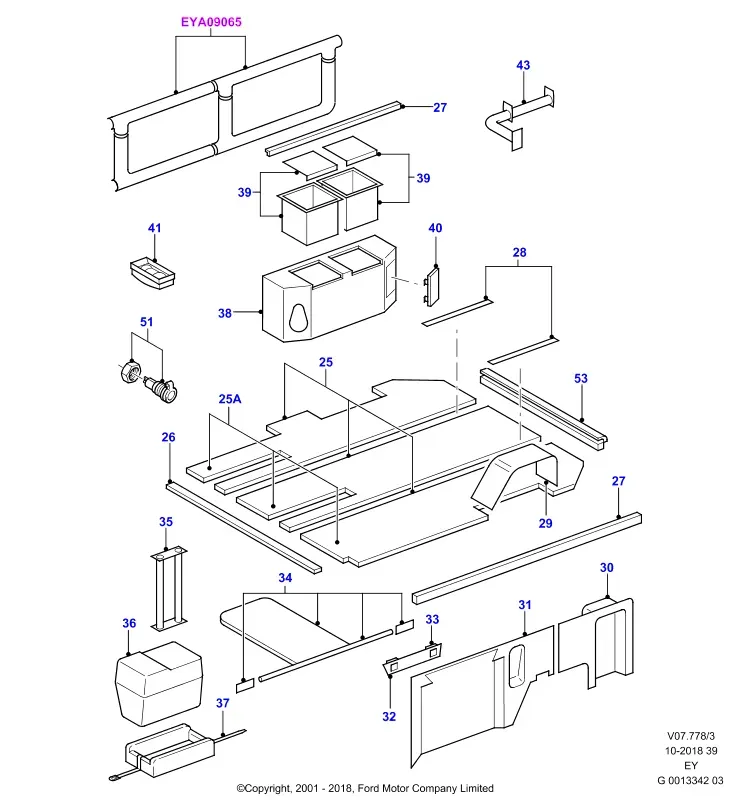

Assembly diagrams

12 diagrams

Parts

111 parts

1062072 Offers

Engineering number: V98VB B600M04 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 1
RH
Flash
(+)"Europe"
1062047 Offers

Engineering number: V98VB B600M06 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 2
LH
Flash
(+)"Europe"
1062049 Offers

Engineering number: V98VB B600M07 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 2
RH
Flash
(+)"Europe"
1029669 Offers

Engineering number: V96VB B600M06 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Row 2
LH
Lightning
GLX
(+)"Europe"
1062073 Offers

Engineering number: V98VB B600M05 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 1
LH
Flash
(+)"Europe"
1029659 Offers

Engineering number: V96VB B600M04 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Row 1
RH
Lightning
GLX
(+)"Europe"
1029408 Offers

Engineering number: V96VB B600M05 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Row 1
LH
Lightning
GLX
(+)"Europe"
1029668 Offers

Engineering number: V96VB B600M07 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Row 2
RH
Lightning
GLX
(+)"Europe"
1037700 Offers

Engineering number: V96VB V600K66 AAYCM6
: 2
description: Panel
Row 1
LH
(+)"Europe"
1040569 Offers

Engineering number: V96VB V600K66 DAYCM6
: 2
description: Panel
Row 2
LH
(+)"Europe"
1035716 Offers

Engineering number: V96VB V600K65 FAYCM6
: 2
description: Panel
Row 2
RH
(+)"Europe"
1035715 Offers

Engineering number: V96VB V600K65 EAYCM6
: 2
description: Panel
Row 1
RH
(+)"Europe"
1040692 Offers

Engineering number: V96VB V600K66 CAYCM6
: 2
description: Panel
Row 1
(+)"Europe"
1040693 Offers

Engineering number: V96VB V600K66 FAYCM6
: 2
description: Panel
Row 2
(+)"Europe"
1029691 Offers

Engineering number: V96VB B644A22 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Armrest Assy
RH
Lightning
GLX
(+)"Europe"
1029690 Offers

Engineering number: V96VB B644A22 AB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Armrest Assy
RH
Acadian
(+)"Europe"
1029693 Offers

Engineering number: V96VB B644A23 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Armrest Assy
LH
Lightning
GLX
(+)"Europe"
1029692 Offers

Engineering number: V96VB B644A23 AB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Armrest Assy
LH
Acadian
(+)"Europe"
1029697 Offers

Engineering number: V96VB 13770 DB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Cover Assy - Armrest
RH
Lightning
GLX
(+)"Europe"
1029696 Offers

Engineering number: V96VB 13770 CB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Cover Assy - Armrest
LH
Acadian
(+)"Europe"
1029695 Offers

Engineering number: V96VB 13770 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Cover Assy - Armrest
RH
Lightning
GLX
(+)"Europe"
1029694 Offers

Engineering number: V96VB 13770 AB
Date of manufacture: 01/08/1995 - 31/08/2000
: 4
description: Cover Assy - Armrest
RH
Acadian
(+)"Europe"
1062053 Offers

Engineering number: V98VB B611A08 BA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 2
description: Headrest - Cover And Pad
Row 1
Flash
(+)"Europe"
1029710 Offers

Engineering number: V96VB B611A08 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Headrest - Cover And Pad
Row 2
(Acadian GLX (+)"Europe" or Lightning GLX (+)"Europe")
1040298 Offers

Engineering number: V96VB B600M61 AA
: 1
description: Seat Assy - Rear Passenger - Triple
Row 3
(+)"Europe"
1117060 Offers

Engineering number: V98VB B62900 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Cover
Back Assy - Seat
Flash
(+)"Europe"
1062062 Offers

Engineering number: V98VB B62900 BA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: AR
description: Cover
Cushion Assy - Seat
Flash
(+)"Europe"
1062063 Offers

Engineering number: V98VB B62900 CA1BXI
Date of manufacture: 01/12/1997 - 31/08/2000
: AR
description: Cover
Back Assy - Seat
Flash
(+)"Europe"
1033958 Offers

Engineering number: V96VB B62900 HB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Cover
Back Assy - Seat
Lightning
GLX
(+)"Europe"
1033956 Offers

Engineering number: V96VB B62900 GB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Cover
Cushion Assy - Seat
Lightning
GLX
(+)"Europe"
1036273 Offers

Engineering number: V96VB T61198 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Handle - Seat Back Adjusting
(+)"Europe"
1024955 Offers

Engineering number: V96VB V61755 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Handle - Seat Track Control
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1036986 Offers

Engineering number: V96VB B605K25 BAYCM6
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel
(+)"Europe"
1036983 Offers

Engineering number: V96VB B605K25 AAYCM6
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel
LH
(+)"Europe"
1036984 Offers

Engineering number: V96VB B605K26 AAYCM6
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel
RH
(+)"Europe"
1024956 Offers

Engineering number: V96VB B67340 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel
(+)"Europe"
1062066 Offers

Engineering number: V98VB V62900 FA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 2
description: Cover Assy
Cushion Assy - Seat
Row 1
Flash
(+)"Europe"
1033948 Offers

Engineering number: V96VB V62900 GB
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Cover Assy
Cushion Assy - Seat
Row 1
Lightning
GLX
(+)"Europe"
1062071 Offers

Engineering number: V98VB V62900 JA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 2
description: Cover Assy
Cushion Assy - Seat
Row 2
Flash
(+)"Europe"
1033952 Offers

Engineering number: V96VB V62900 LB
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Cover Assy
Cushion Assy - Seat
Row 2
Lightning
GLX
(+)"Europe"
1062064 Offers

Engineering number: V98VB V62900 EA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 2
description: Cover Assy
Back Assy - Seat
Row 1
Flash
(+)"Europe"
1062067 Offers

Engineering number: V98VB V62900 HA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 2
description: Cover Assy
Back Assy - Seat
Row 2
Flash
(+)"Europe"
1033954 Offers

Engineering number: V96VB V62900 MB
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Cover Assy
Back Assy - Seat
Row 2
Lightning
GLX
(+)"Europe"
1033950 Offers

Engineering number: V96VB V62900 HB
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Cover Assy
Back Assy - Seat
Row 1
Lightning
GLX
(+)"Europe"
1024937 Offers

Engineering number: V96VB B61200 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
Row 2
(+)"Europe"
1022786 Offers

Engineering number: V96VB B605K21 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Base - Seat
Row 1
RH
(+)"Europe"
1116111 Offers

Engineering number: V96VB B605K21 CB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Base - Seat
Row 2
RH
(+)"Europe"
1024938 Offers

Engineering number: V96VB B605K21 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Base - Seat
Row 1
LH
(+)"Europe"
1053754 Offers

Engineering number: V96VB B605K21 DB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Base - Seat
Row 2
LH
(+)"Europe"
1025036 Offers

Engineering number: V96VB 442K08 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Damper Assy
(+)"Europe"
1651304 Offers

Engineering number: E865803 S
Date of manufacture: 01/08/1995 - 31/08/2000
: AR
description: Clip - Seat Belt Stowage
(+)"Europe"
1030050 Offers

Engineering number: V96VB A610A16 AB
Date of manufacture: 01/08/1995 - 31/08/2000
: 6
description: Sleeve - Guide
(+)"Europe"
1062050 Offers

Engineering number: V98VB B611A08 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 3
description: Headrest - Cover And Pad
Row 3
Flash
(+)"Europe"
1029726 Offers

Engineering number: V96VB B611A08 DB
Date of manufacture: 01/08/1995 - 31/08/2000
: 3
description: Headrest - Cover And Pad
Row 3
Lightning
GLX
(+)"Europe"
1024961 Offers

Engineering number: V96VB V61360 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Frame And Spring - Rr Seat Cushion
(+)"Europe"
1062057 Offers

Engineering number: V98VB 5301 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Mattress Assy
(+)"Europe"
1029729 Offers

Engineering number: V96VB 5301 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Mattress Assy
GLX
(+)"Europe"
1024963 Offers

Engineering number: V96VB B114K21 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Board
(+)"Europe"
1024964 Offers

Engineering number: V96VB B13065 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Carpet - Floor
GLX
(+)"Europe"
1024965 Offers

Engineering number: V96VB V13190 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Strip - Retaining
(+)"Europe"
1024966 Offers

Engineering number: V96VB V237A02 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Strip - Retaining
(+)"Europe"
1024967 Offers

Engineering number: V96VB B62284 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Cover
(+)"Europe"
1024968 Offers

Engineering number: V96VB V31720 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Cover Assy - Wheelhouse
(+)"Europe"
1024940 Offers

Engineering number: V96VB A62570 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Bracket
RH
(+)"Europe"
1024941 Offers

Engineering number: V96VB A62570 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Bracket
LH
(+)"Europe"
1040695 Offers

Engineering number: V96VB B280C47 BBYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel - Trim
LH
Lightning
GLX
(+)"Europe"
1040694 Offers

Engineering number: V96VB B280C47 AAYCLX
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel - Trim
LH
Acadian
(+)"Europe"
1040696 Offers

Engineering number: V96VB B31035 BAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel - Trim
LH
Lightning
GLX
(+)"Europe"
1037705 Offers

Engineering number: V96VB B31035 AAYCLX
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel - Trim
LH
Acadian
(+)"Europe"
1040701 Offers

Engineering number: V96VB B31024 DAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel - Trim
LH
Lightning
GLX
(+)"Europe"
1062060 Offers

Engineering number: V98VB B31024 AA1BXJ
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Panel - Trim
LH
Flash
(+)"Europe"
1023523 Offers

Engineering number: V96VB B06202 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Holder - Cup
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1025028 Offers

Engineering number: V96VB 74279B04 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Table Assy - Utility
(+)"Europe"
1025029 Offers

Engineering number: V96VB V46649 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Support
(+)"Europe"
1091803 Offers

Engineering number: V96VB 043K79 AB
Date of manufacture: 01/08/1996 - 31/08/2000
: AR
description: Cool Box
(+)"Europe"
1025031 Offers

Engineering number: V96VB 54044H48 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Tray - Utility
(+)"Europe"
1032606 Offers

Engineering number: V96VB B31002 BAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel Assy - Back - Lower
RH
Lightning
GLX
(+)"Europe"
1032604 Offers

Engineering number: V96VB B31002 AAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Panel Assy - Back - Lower
RH
Acadian
(+)"Europe"
1032609 Offers

Engineering number: V96VB B31031 AAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Box Assy - Stowage
RH
(+)"Europe"
1024943 Offers

Engineering number: V96VB V61644 CA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Roller Assy
Row 3
RH
(+)"Europe"
1024942 Offers

Engineering number: V96VB V61644 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 2
description: Roller Assy
Row 1
(+)"Europe"
1024944 Offers

Engineering number: V96VB V61644 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Roller Assy
Row 3
LH
(+)"Europe"
1032611 Offers

Engineering number: V96VB A043K79 BAYCMV
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Door Assy - Stowage Box
(+)"Europe"
1116073 Offers

Engineering number: V96VB B13776 AB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Lamp Assy
(+)"Europe"
1025033 Offers

Engineering number: V96VB B64010 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Cabin Curtains
(+)"Europe"
1025034 Offers

Engineering number: V96VB 69541 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Rail
Hanger
(+)"Europe"
1025035 Offers

Engineering number: V96VB 17632 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Cover - Water Reservoir
(+)"Europe"
1032211 Offers

Engineering number: V95VB 13B711 DB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Jumper Wiring
Cool Box
(+)"Europe"
1032204 Offers

Engineering number: V95VB B61294 SA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
"D" Pillar Assy
LH
(+)"Europe"
1032205 Offers

Engineering number: V95VB B61295 SB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
"D" Pillar Assy
RH
(+)"Europe"
1032226 Offers

Engineering number: V95VB B61200 SB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
C Pillar Assy
LH
(+)"Europe"
1038610 Offers

Engineering number: V95VB B61200 RB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
C Pillar Assy
Before ordering, please read the information in the blue envelope!
RH
(+)"Europe"
1032208 Offers

Engineering number: V95VB B61200 TB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Kit - Seat Belt
Triple Seat - Centre
(+)"Europe"
1050897 Offers

Engineering number: V97VB V402A16 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Decal
Euroline
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1024945 Offers

Engineering number: V96VB V61755 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Handle - Seat Track Control
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1690194 Offers

Engineering number: V95AB L16098 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Decal
Karmann
Before ordering, please read the information in the blue envelope!
(+)"Europe"
1658893 Offers

Engineering number: V86VG 18213 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Socket Assy - Handlamp
(+)"Europe"
1130703 Offers

Engineering number: V96VB B61755 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Handle
(+)"Europe"
1047277 Offers

Engineering number: 86VB V13190 EB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Strip - Retaining
(+)"Europe"
1035713 Offers

Engineering number: V96VB V600K65 CBYCM6
: 1
description: Cover - Moulding
Row 2
LH
(+)"Europe"
1035714 Offers

Engineering number: V96VB V600K65 DBYCM6
: 1
description: Cover - Moulding
Row 2
RH
(+)"Europe"
1035712 Offers

Engineering number: V96VB V600K65 BAYCM6
: 1
description: Cover - Moulding
Row 1
RH
(+)"Europe"
1035711 Offers

Engineering number: V96VB V600K65 AAYCM6
: 1
description: Cover - Moulding
Row 1
LH
(+)"Europe"
1029683 Offers

Engineering number: V96VB 43242 BA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Gaiter
Row 2
(+)"Europe"
1029682 Offers

Engineering number: V96VB 43242 AA
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Gaiter
Row 1
(+)"Europe"
1029687 Offers

Engineering number: V96VB V604K40 BB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Lightning
GLX
(+)"Europe"
1062055 Offers

Engineering number: V98VB V604K40 AA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 1
Flash
(+)"Europe"
1062059 Offers

Engineering number: V98VB V604K40 BA1BXI
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Seat Assy
Row 2
Flash
(+)"Europe"
1029689 Offers

Engineering number: V96VB V604K40 DB
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Seat Assy
Row 2
Lightning
GLX
(+)"Europe"
1040714 Offers

Engineering number: V96VB V600K66 EAYCM6
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Valance - Seat Assy
Row 2
(+)"Europe"
1040713 Offers

Engineering number: V96VB V600K66 BAYCM6
Date of manufacture: 01/08/1995 - 31/08/2000
: 1
description: Valance - Seat Assy
Row 1
(+)"Europe"

Interior and seats

Assembly diagrams

Parts

Catalog

More

Contact us
