Radiator grille

Front bumper and radiator grille

Assembly diagrams

3 diagrams

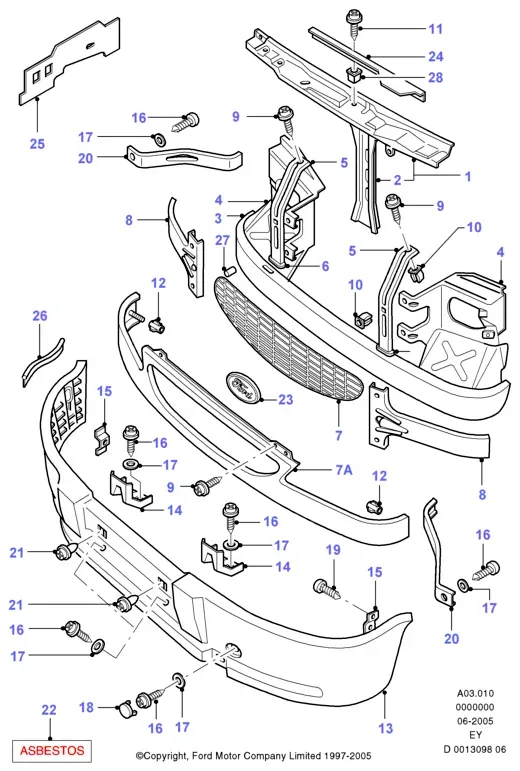

Front bumper and radiator grille diagram

Parts

35 parts

7273991 Offers

Engineering number: P95VB V001K46 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Body Front - Upper
(+)"Europe/MAL/VN"
1634125 Offers

Engineering number: E826292 S
Date of manufacture: 01/11/1994 - 31/08/2000
: AR
description: Nut - Expansion
(+)"Europe/MAL/VN"
1057414 Offers

Engineering number: W505041 S1309
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Screw
(+)"Europe/MAL/VN"
7242592 Offers

Engineering number: 95VB 16241 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Clip
(+)"Europe/MAL/VN"
1020026 Offers

Engineering number: 95VB 17K819 CAXWAA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bumper Assy - Front
(+)"Europe/Dom/Mal"
Front Bumper Body Coloured Plastic
7335354 Offers

Engineering number: 95VB 17757 ACZFAB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bumper Assy - Front
(-)"CHN"
Mid Grey Front Bumper
7101892 Offers

Engineering number: 95VB 17C912 AC
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bracket - Bumper Mounting
Centre
(+)"Europe/MAL/VN"
6162026 Offers

Engineering number: 86VB 17B762 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Bracket - Bumper Mounting
Outer
(+)"Europe/MAL/VN"
6608608 Offers

Engineering number: W700914 S303
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Screw
M8 X 20MM
(+)"Europe/MAL/VN"
1483399 Offers

Engineering number: W700627 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Washer - Flat
(+)"Europe/Dom/Mal"
1020001 Offers

Engineering number: 95VB 17C831 BAXWAA
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Cap - Screw
Tourneo
(+)"Europe/Dom/Mal"
6750218 Offers

Engineering number: 92VB 17C831 ADZFAB
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Cap - Screw
STD
(+)"Europe/MAL/VN"
6586360 Offers

Engineering number: E812171 S306
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Screw
(+)"Europe/MAL/VN"
7287689 Offers

Engineering number: P95VB V107K94 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Brace - Vertical
Before ordering, please read the information in the blue envelope!
(+)"Europe/MAL/VN"
6119483 Offers

Engineering number: E826255 S
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Nut - Expansion
(+)"Europe/MAL/VN"
1382302 Offers

Engineering number: 3U5A 19H250 FA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Emblem
(+)"Europe/MAL/VN"
1006205 Offers

Engineering number: 95VB V21978 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Shield Assy
Before ordering, please read the information in the blue envelope!
RHD
(+)"Europe/Dom/Mal"
1006206 Offers

Engineering number: 95VB V21979 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Shield Assy
LHD
(+)"Europe/VN"
1018819 Offers

Engineering number: 95VB V8310 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Deflector
Before ordering, please read the information in the blue envelope!
RH
(-)"CHN"
7087402 Offers

Engineering number: 95VB V8311 AC
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Deflector
Before ordering, please read the information in the blue envelope!
LH
(-)"CHN"
7313941 Offers

Engineering number: 95VB 8B001 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Seal
(+)"Europe/MAL/VN"
6105387 Offers

Engineering number: E890401 S
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Clip
(+)"Europe/MAL/VN"
6152397 Offers

Engineering number: E826297 S
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Nut - Expansion
(+)"Europe/MAL/VN"
7242126 Offers

Engineering number: P95VB V002K08 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel - Body Front Lower
(+)"Europe/MAL/VN"
7238238 Offers

Engineering number: P95VB 13K055 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Headlamp Mounting
LH
(+)"Europe/MAL/VN"
7238239 Offers

Engineering number: P95VB 13K056 AA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel Assy - Headlamp Mounting
RH
(+)"Europe/MAL/VN"
1018788 Offers

Engineering number: 95VB 8284 AE
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bracket - Radiator Grille
LH
With Air Conditioning
(+)"Europe/MAL/VN"
1056870 Offers

Engineering number: 95VB 8284 BD
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bracket - Radiator Grille
LH
Less Air Conditioning
(+)"Europe"
6994055 Offers

Engineering number: 95VB 8B414 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bush
LH
With Air Conditioning
(+)"Europe/MAL/VN"
6098406 Offers

Engineering number: 83BG 8B414 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Bush
LH
Less Air Conditioning
(+)"Europe"
1104894 Offers

Engineering number: 95VB 8355 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Grille - Radiator
(+)"Europe/MAL/VN"
1104690 Offers

Engineering number: 95VB 8150 AGXWAA
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Frame - Radiator Grille
To Be Painted In Body Colour
Drill Holes As Required
(+)"Europe/MAL/VN"
6993990 Offers

Engineering number: 95VB 8266 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Reinforcement
RH
(+)"Europe/Dom/Mal"
With Headlamp Washer
6993994 Offers

Engineering number: 95VB 8A216 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Reinforcement
LH
(+)"Europe/Dom/Mal"
With Headlamp Washer
4083623 Offers

Engineering number: W505004 S424
Date of manufacture: 01/11/1994 - 31/08/2000
: AR
description: Screw
(+)"Europe/MAL/VN"
