Seats

Rear seat

Parts

43 parts

1064889 Offers

Engineering number: 95VB B600M04 KG1CAV
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Seat Assy
Cloth
Claudia
LHD
(+)"Europe"
With 3 Point Seat Belts
1068061 Offers

Engineering number: P97VB V600M61 JBYCMV
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Seat Assy
Vinyl
RHD
(+)"Europe"
With 3 Point Seat Belts
1064887 Offers

Engineering number: 95VB B600M04 HG1CAV
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Seat Assy
Cloth
Claudia
RHD
(+)"Europe"
With 3 Point Seat Belts
1068062 Offers

Engineering number: P97VB V600M61 PBYCMV
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Seat Assy
Vinyl
LHD
(+)"Europe"
With 3 Point Seat Belts
1068009 Offers

Engineering number: P97VB V600M61 WB1BXI
Date of manufacture: 01/01/1997 - 31/08/2000
: 1
description: Seat Assy
Cloth
Flash
Van/Chassis Cab
RHD
(+)"Europe"
With 3 Point Seat Belts
1072891 Offers

Engineering number: P97VB V600M61 YB1CAW
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Seat Assy
Cloth
Windrush
LHD
(+)"Europe"
With 3 Point Seat Belts
1072890 Offers

Engineering number: P97VB V600M61 VB1CAW
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Seat Assy
Cloth
Windrush
RHD
(+)"Europe"
With 3 Point Seat Belts
1068010 Offers

Engineering number: P97VB V600M61 ZB1BXI
Date of manufacture: 01/01/1997 - 31/08/2000
: 1
description: Seat Assy
Cloth
Flash
Van/Chassis Cab
LHD
(+)"Europe"
With 3 Point Seat Belts
6600322 Offers

Engineering number: E400419 S409M
Date of manufacture: 08/08/1994 - 31/08/2000
: AR
description: Screw And Washer Assy
7/16" x 35MM
(+)"Europe/VN"
6709542 Offers

Engineering number: W701282 S303
Date of manufacture: 01/04/1994 - 31/08/2000
: AR
description: Screw And Washer Assy
M8 x 40MM
(+)"Europe/VN"
7436120 Offers

Engineering number: 92VB V618K64 BD
Date of manufacture: 01/08/1996 - 31/08/2000
: 1
description: Bracket Assy - Seat Pivot
Outer
LHD
(+)"Europe/VN"
1062176 Offers

Engineering number: 92VB V618K64 AD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bracket Assy - Seat Pivot
Outer
RHD
(+)"Europe"
6989862 Offers

Engineering number: 92VB V618K64 CD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bracket Assy - Seat Pivot
Inner
Before ordering, please read the information in the blue envelope!
RHD
(+)"Europe"
6989863 Offers

Engineering number: 92VB V618K64 DD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Bracket Assy - Seat Pivot
Inner
LHD
(+)"Europe/VN"
4522529 Offers

Engineering number: W520112 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Nut - Flanged
M8
(+)"Europe/VN"
7289361 Offers

Engineering number: 95VB V600K65 BAYCM6
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Valance - Seat Side
RH
LHD
(+)"Europe"
With 3 Point Seat Belts
7289362 Offers

Engineering number: 95VB V600K66 BAYCM6
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Valance - Seat Side
LH
RHD
(+)"Europe"
With 3 Point Seat Belts
3770460 Offers

Engineering number: W504263 S424
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Screw - Self-Tapping
(+)"Europe/VN"
1493534 Offers

Engineering number: W701213 S437
Date of manufacture: 08/08/1994 - 31/08/2000
: 4
description: Washer - Flat
(+)"Europe/VN"
1050798 Offers

Engineering number: 95VB B67340 XBYCAD
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Panel - Heel Board
Tourneo
(+)"Europe"
7272881 Offers

Engineering number: 95VB V67273 AAYCMV
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Filler
Vinyl
(+)"Europe"
With 3 Point Seat Belts
1044221 Offers

Engineering number: 97VB V67273 CA1BXI
Date of manufacture: 01/01/1997 - 31/08/2000
: 1
description: Filler
Cloth
Flash
(+)"Europe"
With 3 Point Seat Belts
1067246 Offers

Engineering number: 95VB V67273 BAKVF5
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Filler
Cloth
Windrush
(+)"Europe"
With 3 Point Seat Belts
1036709 Offers

Engineering number: 98VB V67273 DA1BEZ
Date of manufacture: 01/01/1997 - 31/08/2000
: 1
description: Filler
Cloth
Claudia
(+)"Europe"
With 3 Point Seat Belts
1059024 Offers

Engineering number: 96VB V605K21 BB
Date of manufacture: 01/11/1997 - 31/08/2000
: 1
description: Frame And Spring Assy
Fixed
Van/Kombi/Single Cab/Double Cab
RHD
(+)"Europe"
1058787 Offers

Engineering number: 96VB V605K22 AB
Date of manufacture: 01/11/1994 - 31/08/2000
: 1
description: Frame And Spring Assy
Fixed
LHD
(+)"Europe"
With 3 Point Seat Belts
1043697 Offers

Engineering number: 95VB V63222 CB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Pad - Seat Cushion
Before ordering, please read the information in the blue envelope!
(+)"Europe"
With 3 Point Seat Belts
1043700 Offers

Engineering number: 95VB V64800 BB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Pad - Seat Back
RH
(+)"Europe"
With 3 Point Seat Belts
1043701 Offers

Engineering number: 95VB V64801 BB
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Pad - Seat Back
LH
(+)"Europe"
With 3 Point Seat Belts
1064895 Offers

Engineering number: 95VB V62900 HD1CAW
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Cover Assy - Seat Cushion
Cloth
Windrush
(+)"Europe"
With 3 Point Seat Belts
1107797 Offers

Engineering number: 95VB V62900 GCYCMV
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Cover Assy - Seat Cushion
Vinyl
(+)"Europe"
With 3 Point Seat Belts
1064896 Offers

Engineering number: 95VB V62900 TB1CAV
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Cover Assy - Seat Cushion
Cloth
Claudia
(+)"Europe"
With 3 Point Seat Belts
1107801 Offers

Engineering number: 97VB V62900 JC1BXI
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Cover Assy - Seat Cushion
Cloth
Flash
(+)"Europe"
With 3 Point Seat Belts
1064899 Offers

Engineering number: 95VB V64416 YC1CAV
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Cover Assy - Seat Back
Cloth
Claudia
(+)"Europe"
With 3 Point Seat Belts
1107813 Offers

Engineering number: 97VB V64416 MD1BXI
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Cover Assy - Seat Back
Cloth
Fixed
Flash
(+)"Europe"
With 3 Point Seat Belts
1107803 Offers

Engineering number: 95VB V64416 KHYCMV
Date of manufacture: 01/03/1998 - 31/08/2000
: 1
description: Cover Assy - Seat Back
Vinyl
Fixed
(+)"Europe"
With 3 Point Seat Belts
1064898 Offers

Engineering number: 95VB V64416 LG1CAW
Date of manufacture: 01/03/1998 - 31/08/1998
: 1
description: Cover Assy - Seat Back
Cloth
Fixed
Windrush
(+)"Europe"
With 3 Point Seat Belts
6553449 Offers

Engineering number: 92VB B62652 AB
Date of manufacture: 08/08/1994 - 31/08/2000
: 1
description: Latch
(+)"Europe/VN"
6166153 Offers

Engineering number: E802659 S201
Date of manufacture: 08/08/1994 - 31/08/2000
: 2
description: Screw - Pan Head
M8 X 45MM
(+)"Europe/VN"
7310670 Offers

Engineering number: D95VB V604K39 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Striker - Seat Lock
RHD
(+)"Europe"
With 3 Point Seat Belts
7310671 Offers

Engineering number: D95VB V604K39 BA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Striker - Seat Lock
LHD
(+)"Europe"
With 3 Point Seat Belts
7218335 Offers

Engineering number: 95VB V619A23 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Striker - Seat Lock
LHD
(+)"Europe"
With 3 Point Seat Belts
7218334 Offers

Engineering number: 95VB V619A22 AA
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Striker - Seat Lock
RHD
(+)"Europe"
With 3 Point Seat Belts

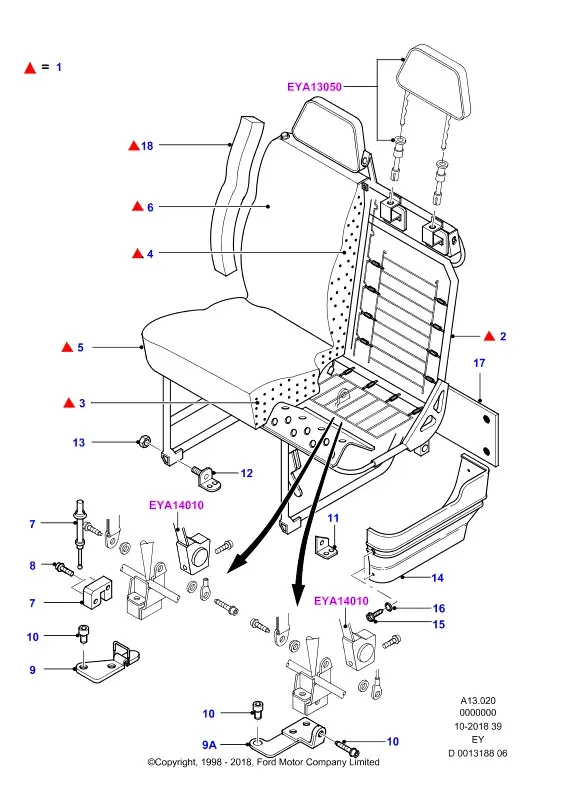

Rear seat
