Clutch

Clutch housing

Assembly diagrams

4 diagrams

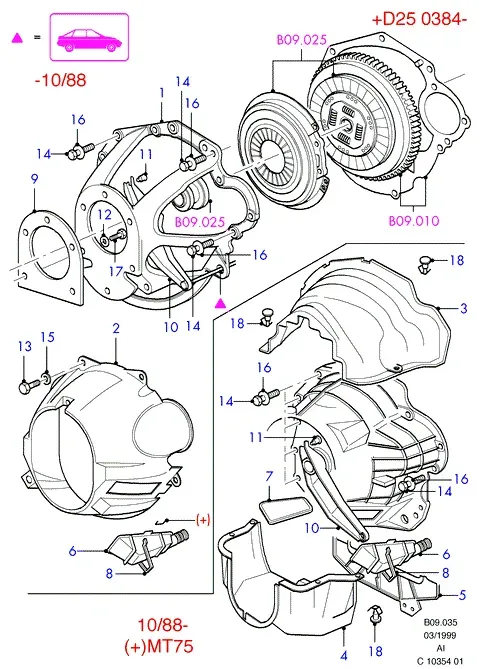

Clutch housing diagram

Parts

9 parts

1023158 Offers

Engineering number: 95VB 7515 DC
Date of manufacture: 01/08/1994 - 31/08/2000
: 1
description: Lever Assy - Clutch Release
MT75
6184660 Offers

Engineering number: 88BB 7B602 AC
Date of manufacture: 01/10/1988 - 31/08/2000
: 1
description: Stud - Ball
MT75
1312605 Offers

Engineering number: W701069 S437
Date of manufacture: 01/10/1988 - 31/08/2000
: 7
description: Screw
M10 x 35MM
MT75
6171628 Offers

Engineering number: E801416 S72
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Screw
M10 x 55MM
6722031 Offers

Engineering number: 88VB 7K556 BB
Date of manufacture: 01/10/1988 - 31/08/2000
: 6
description: Fastener
1039892 Offers

Engineering number: 98VB 7611 CB
Date of manufacture: 01/09/1997 - 31/08/2000
: 1
description: Cover - Clutch Housing
MT75
1039894 Offers

Engineering number: 98VB 7611 DB
Date of manufacture: 01/09/1997 - 31/08/2000
: 1
description: Cover - Clutch Housing
MT75
6645400 Offers

Engineering number: 894F 6E074 AA
Date of manufacture: 01/08/1991 - 31/08/2000
: 1
description: Cover - Clutch Housing
MT75
1422031 Offers

Engineering number: 3024E 7K735 A
Date of manufacture: 01/03/1984 - 31/08/2000
: 1
description: Spring - Retaining
