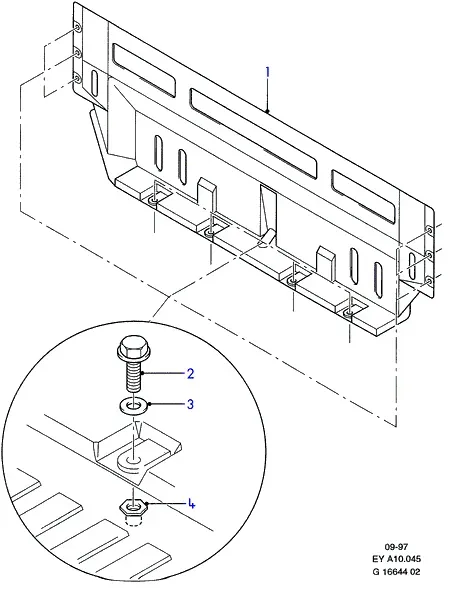

Rear body panel diagram

Parts

4 parts

1052438 Offers

Engineering number: 98VB V19L512 AB
Date of manufacture: 01/08/1997 - 31/08/2000
: 1
description: Panel - Half Partition
(+)"Europe/Dom/Mal"
1006345 Offers

Engineering number: W500014 S303
Date of manufacture: 01/08/1997 - 31/08/2000
: 10
description: Screw
(+)"Europe/Dom/Mal"
1054034 Offers

Engineering number: E830899 S74
Date of manufacture: 01/08/1997 - 31/08/2000
: 10
description: Washer - Flat
(+)"Europe/Dom/Mal"
1640793 Offers

Engineering number: E826165 S72
Date of manufacture: 01/08/1997 - 31/08/2000
: 10
description: Nut - Blind Anchor
(+)"Europe/Dom/Mal"
