Brake disc

Rear disc brake

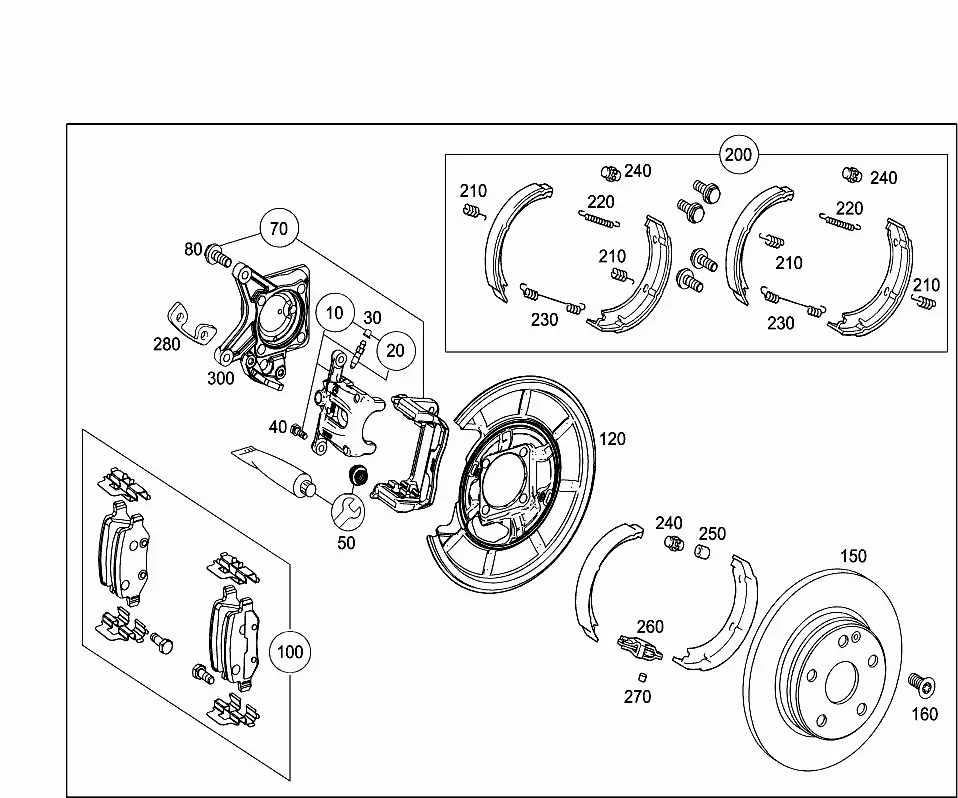

Assembly diagrams

2 diagrams

Parts

33 parts

A1694201583 Offers

LEFT
005: From Chassis: J 474115
005: From Date: 02.04.2007
QTY: 001
A1694201683 Offers

RIGHT
005: From Chassis: J 474115
005: From Date: 02.04.2007
QTY: 001
A1694200420 Offers

PARTS KIT
Replaced by A 1694201120
431: WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
QTY: 001
A1694201420 Offers

PARTS KIT
431: WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
443: ALSO AVAILABLE AS STARPARTS. PLEASE ADD ES1 90 WHEN ORDERING - ONLY AVAILABLE IN SELECTED MARKETS
QTY: 001
A1694201120 Offers

PARTS KIT
Replaced by A 1694201720
431: WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
QTY: 001
A1694201720 Offers

PARTS KIT
Replaced by A 1694201420
431: WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
QTY: 001
A1694230220 Offers

RIGHT
QTY: 001
A1694230120 Offers

LEFT
QTY: 001
A1694230312 Offers

LEFT AND RIGHT
Replaced by A 1694230912
QTY: 002
A1694230912 Offers

LEFT AND RIGHT
443: ALSO AVAILABLE AS STARPARTS. PLEASE ADD ES1 90 WHEN ORDERING - ONLY AVAILABLE IN SELECTED MARKETS
QTY: 002
A2204210171 Offers

BRAKE DISC TO WHEEL HUB
M8X12
QTY: 002
A1694210165 Offers

LEFT CALIPER
QTY: 001
or
BRAKE DISK, RIGHT
QTY: 001
A1244200720 Offers

RANGE OF DELIVERY
431: WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
QTY: 001
A2014230592 Offers

BRAKE SHOES TO COVER PLATES
QTY: 004
A2104230092 Offers

BRAKE SHOE PULL-BACK
QTY: 002
A1714230092 Offers

BRAKE SHOE PULL-BACK
Replaced by A 0009937311
QTY: 002
A0009937311 Offers

BRAKE SHOE PULL-BACK
QTY: 002
A2014200373 Offers

BRAKE SHOE ADJUSTMENT
QTY: 002
A1244230050 Offers

ADJUSTING SCREW
QTY: 002
A2014200589 Offers

BRAKE SHOE BEARING
QTY: 002
A1084270074 Offers

BRAKE CONTROL CABLE TO TENS. SHACKLE
QTY: 002
A1684230080 Offers

COVER PLATE TO WHEEL BEARING
QTY: 002
A0004211048 Offers

LEFT
QTY: 001
or
RIGHT
QTY: 001
A1694200915 Offers

LEFT
QTY: 001
A1694201015 Offers

RIGHT
QTY: 001
A1694230006 Offers

LEFT
Replaced by A 1694200915
QTY: 001
A1694230106 Offers

RIGHT
Replaced by A 1694201015
QTY: 001
A0029908400 Offers

LEFT CALIPER
QTY: 002
or
RIGHT CALIPER
QTY: 002
A1694210186 Offers

LEFT CALIPER
QTY: 001
or
RIGHT CALIPER
QTY: 001
A1694200415 Offers

CALIPER ON AXLE
Replaced by A 1694201415
QTY: 002
A1694201415 Offers

CALIPER ON AXLE
QTY: 002
N000000000916 Offers

BRAKE ANCHOR TO STEERING KNUCKLE
M10X25
QTY: 004
N000000005263 Offers

BRAKE ANCHOR TO STEERING KNUCKLE
M10X25
Replaced by N000000000916
414: THE OLD PART MUST NO LONGER BE INSTALLED
QTY: 004
