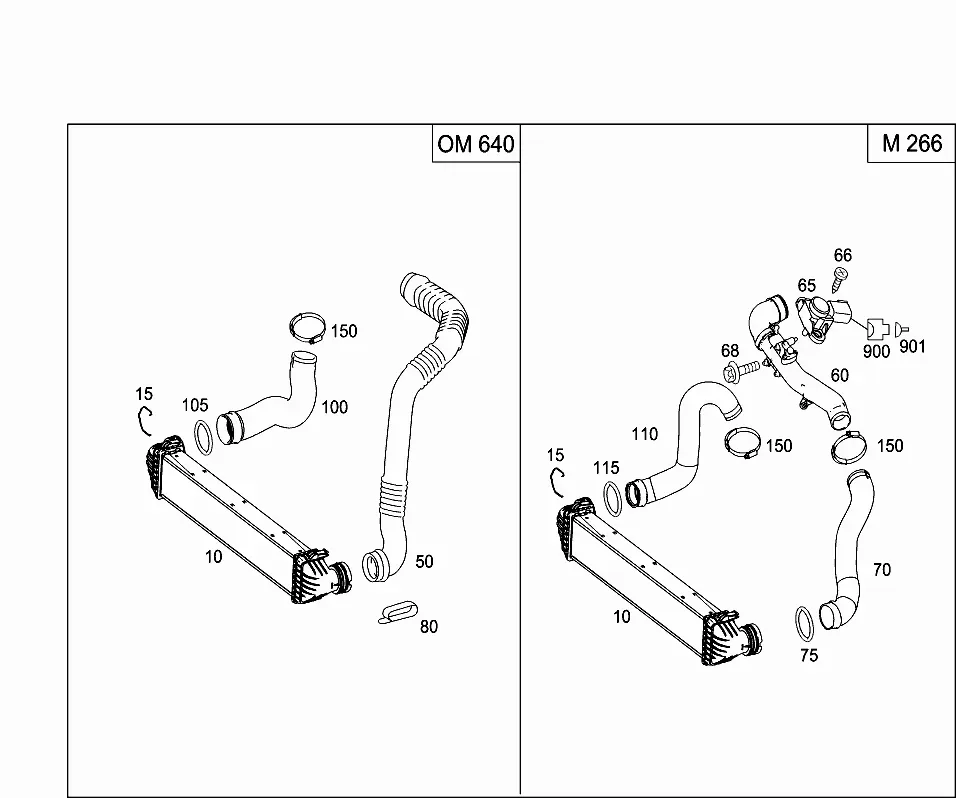

Charge air cooling system

CHARGING AIR INTERCOOLER

Replaced by A 1695000900

CHARGING AIR INTERCOOLER

RIGHT

RIGHT

AT CHARGING AIR INTERCOOLER

CHARGE AIR HOSE

50-70/9 C7 W3

LEFT

Replaced by A 1695200701

025: ALSO TO BE ORDERED: 2 X A 001 991 36 70

LEFT

025: ALSO TO BE ORDERED: 2 X A 001 991 36 70

LEFT

Replaced by A 1695200401

025: ALSO TO BE ORDERED: 2 X A 001 991 36 70

LEFT

AIR INTAKE PIPE

TO PRESSURE SENSOR

AIR INTAKE PIPE TO ENGINE

LEFT

CHARGE AIR HOSE

or

AIR DUCT RIGHT AND CHARGING AIR INTERCOOLER

CHARGE AIR PIPE

PRESSURE SENSOR TO CHARGE AIR LINE

3-PIN MQS;B28/6

PRESSURE SENSOR TO CHARGE AIR LINE

0.75 MM2 MQS;B28/6

028: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

028: SEE WIS FOR REPAIR INSTRUCTIONS.

028: =================================================================================================

028: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

028: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

028: A 002 546 00 41 RED 2.0 - 4.0 MM2

028: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

028: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

028: BUTT JOINT:

028: A 002 546 13 41 0.5 MM2

028: A 002 546 14 41 0.8 MM2

028: A 002 546 15 41 1.3 MM2

028: A 002 546 16 41 2.0 MM2

028: ===================================================================================================

PRESSURE SENSOR TO CHARGE AIR LINE

1.4-1.9 MM;B28/6
