Engine mounts

Engine mount

Assembly diagrams

3 diagrams

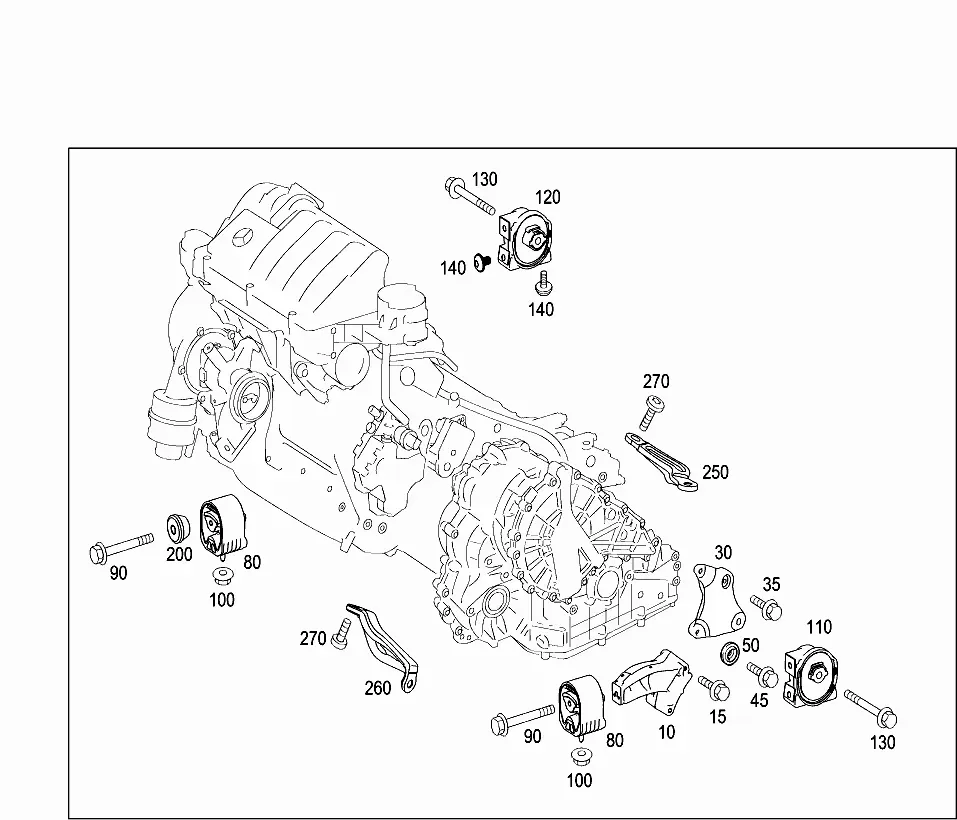

Engine mount diagram

Parts

15 parts

A1692410601 Offers

FRONT LEFT
QTY: 001
A0029901850 Offers

RUBBER MOUNTING TO SIDE MEMBER
QTY: 002
A1692401218 Offers

ENGINE LEFT REAR MOUNTING
QTY: 001
A1692400618 Offers

ENGINE RIGHT REAR MOUNTING
QTY: 001
N910105012005 Offers

ENGINE MOUNT REAR TO TRANSM. CARRIER
M12X110
QTY: 001
or
ENGINE REAR MOUNTING TO ENGINE SUPPORT
M12X110
QTY: 001
A0019841829 Offers

ENGINE REAR MOUNTING, AT FRAME
M8X12
Replaced by N000000002110
QTY: 006
N000000002110 Offers

ENGINE REAR MOUNTING, AT FRAME
M8X12
QTY: 006
N000000000428 Offers

FRONT SUPPORT, AT TRANSMISSION
M10X35
QTY: 001
or
REAR SUPPORT, AT TRANSMISSION
M10X35
QTY: 003
N910105010015 Offers

FRONT SUPPORT, AT TRANSMISSION
M10X110
QTY: 002
A1692420301 Offers

REAR LEFT
QTY: 001
N000000001592 Offers

STOP TO SUPPORT
M10DTX25
QTY: 001
A1682420043 Offers

AT TRANSMISSION,REAR
QTY: 001
A1692400717 Offers

ENGINE FRONT LEFT MOUNTING
Replaced by A 1692401417
QTY: 001
or
ENGINE FRONT RIGHT MOUNTING
Replaced by A 1692401417
QTY: 001
A1692401417 Offers

ENGINE FRONT LEFT MOUNTING
QTY: 001
or
ENGINE FRONT RIGHT MOUNTING
QTY: 001
N910105010027 Offers

ENGINE MOUNTING TO ENGINE SUPPORT, FRONT LEFT
M10X100
QTY: 001
or
ENGINE MOUNTING TO ENGINE SUPPORT, FRONT RIGHT
M10X100
QTY: 001
