Seat belts

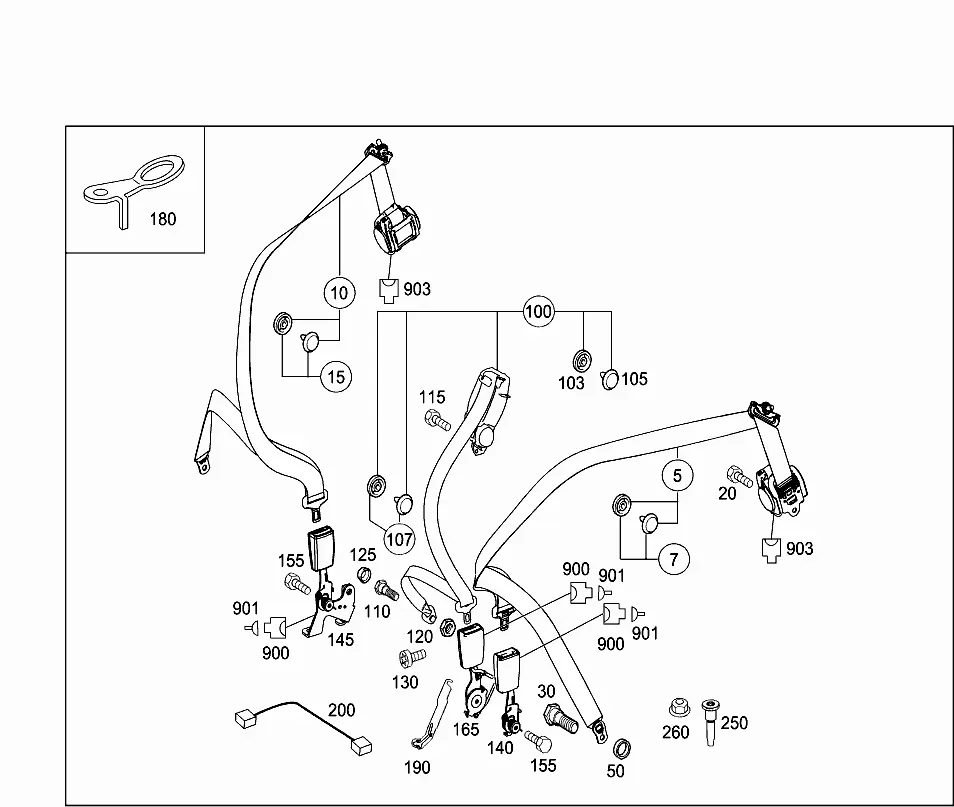

Rear seat safety belt

Assembly diagrams

3 diagrams

Parts

26 parts

A1698600685 Offers

REAR SEAT BENCH,RIGHT
Replaced by A 1698605885
QTY: 001
A1698605885 Offers

REAR SEAT BENCH,RIGHT
QTY: 001
A1698605485 Offers

REAR SEAT BENCH,CENTRAL
023: From Chassis: J 191444
023: From Date: 06.07.2005
QTY: 001
A2028680287 Offers

EYELET, TOP
QTY: 001
A2028680087 Offers

CAP, TOP
QTY: 001
A1239840333 Offers

FASTENING ANCHOR FITTING
QTY: 001
A6319973286 Offers

403: NOT USED
QTY: 001
N000000001152 Offers

FASTENING ANCHOR FITTING
M8X16
QTY: 002
A1698603369 Offers

REAR SEAT BENCH,LEFT
012: From Chassis: J 414250
012: From Date: 30.11.2006
QTY: 001
A1698603269 Offers

REAR SEAT BENCH,RIGHT
012: From Chassis: J 414250
012: From Date: 30.11.2006
QTY: 001
A1698603769 Offers

REAR SEAT BENCH,CENTRAL
012: From Chassis: J 414250
012: From Date: 30.11.2006
QTY: 001
A1698630283 Offers

RIGHT SAFETY BELT
QTY: 001
A1698630183 Offers

LEFT SAFETY BELT
QTY: 001
A1699230015 Offers

CENTER SEAT BELT BUCKLE
QTY: 001
A0039901700 Offers

LEFT SEAT BELT RETRACTOR
7/16X23
QTY: 001
or
RIGHT SEAT BELT RETRACTOR
7/16X23
QTY: 001
or
BELT LOCK MOUNTING
7/16X23
QTY: 002
A2029901301 Offers

LEFT SEAT BELT RETRACTOR
M10X25
Replaced by A 0039901700
QTY: 001
or
RIGHT SEAT BELT RETRACTOR
M10X25
Replaced by A 0039901700
QTY: 001
or
SEAT BELT RETRACTOR FASTENING
M10X25
QTY: 001
or
BELT LOCK MOUNTING
M10X25
QTY: 001
or
BELT LOCK MOUNTING
M10X25
Replaced by A 0039901700
QTY: 002
A2089900101 Offers

BELT FITTINGS, LEFT
QTY: 001
or
BELT END FITTINGS, RIGHT
QTY: 001
A1698600585 Offers

REAR SEAT BENCH,LEFT
Replaced by A 1698606185
QTY: 001
A1698606185 Offers

REAR SEAT BENCH,LEFT
QTY: 001
A9419911240 Offers

BELT BOTTOM OUTLET,LEFT
QTY: 001
or
BELT BOTTOM OUTLET,RIGHT
QTY: 001
A1298603169 Offers

BOTTOM LEFT REAR COMPARTMENT SEAT,
QTY: 001
or
BOTTOM RIGHT REAR COMPARTMENT SEAT
QTY: 001
or
REAR SEAT AT CENTER, BOTTOM
QTY: 001
A0375456028 Offers

SWITCH, RIGHT REAR SEAT BELT BUCKLE
2-PIN MQS;S68/12
QTY: 001
A0415450128 Offers

SWITCH, REAR SEAT BELT BUCKLE
2-PIN MQS;S68/14 S68/11
QTY: 002
A0165454126 Offers

SWITCH, RIGHT REAR SEAT BELT BUCKLE
0.25-0.5 MM2 MQS;S68/12
or
SWITCH, REAR SEAT BELT BUCKLE
0.25-0.5 MM2 MQS;S68/14 S68/11
A0005409705 Offers

BELT TENSIONER SQUIB
2-PIN;R12/6 12/7
Replaced by A 0025402405
028: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
028: SEE WIS FOR REPAIR INSTRUCTIONS.
028: =================================================================================================
028: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
028: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
028: A 002 546 00 41 RED 2.0 - 4.0 MM2
028: A 002 546 01 41 BLUE 3.5 - 8.0 MM2
028: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
028: BUTT JOINT:
028: A 002 546 13 41 0.5 MM2
028: A 002 546 14 41 0.8 MM2
028: A 002 546 15 41 1.3 MM2
028: A 002 546 16 41 2.0 MM2
028: ===================================================================================================
QTY: 002
A0025402405 Offers

BELT TENSIONER SQUIB
R12/6 12/7
028: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
028: SEE WIS FOR REPAIR INSTRUCTIONS.
028: =================================================================================================
028: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
028: A 001 546 99 41 GREEN 0.7 - 2.4 MM2
028: A 002 546 00 41 RED 2.0 - 4.0 MM2
028: A 002 546 01 41 BLUE 3.5 - 8.0 MM2
028: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
028: BUTT JOINT:
028: A 002 546 13 41 0.5 MM2
028: A 002 546 14 41 0.8 MM2
028: A 002 546 15 41 1.3 MM2
028: A 002 546 16 41 2.0 MM2
028: ===================================================================================================
029: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90
QTY: 002
