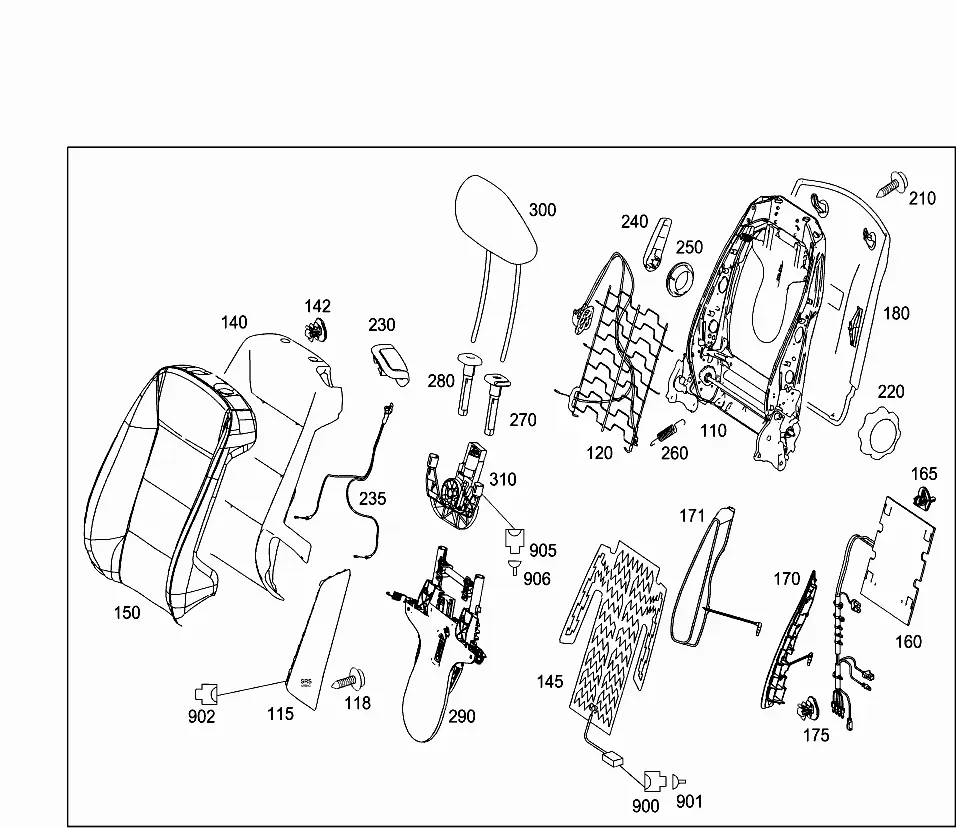

Front seat, right

Replaced by A 1699107634

011: From Chassis: J 387969

011: From Date: 29.09.2006

QTY: 001

011: From Chassis: J 387969

011: From Date: 29.09.2006

QTY: 001

SIDEBAG

908: 9051 311A/411A/611A/721A/751A+809/801A+809

908: QFT169A2025 BLACK

908: 9051 311A/411A/611A/721A/751A/801A

QTY: 001

AIRBAG FASTENING

4.8X9.5

QTY: 002

QTY: 001

012: CLASSIC CODE 953, NOTE DATA CARD

QTY: 001

QTY: 008

QTY: 001

007: From Chassis: J 530922

007: From Date: 10.09.2007

Except for the model year808

901: 9G00 311A

901: QFT169A2200 BLACK

QTY: 001

PLASTIC

016: FC = A-CLASS COUPE, FW = A-CLASS SEDAN, FT = B-CLASS SEDAN

910: 9051 007 311A/411A/611A/721A

910: QFT169A2013 BLACK

QTY: 001

011: From Chassis: J 387969

011: From Date: 29.09.2006

-222-244: RIGHT FRONT SEAT, ELECTRICALLY ADJUSTABLE

-222-244: SPORTS SEATS, FRONT

QTY: 001

LEFT HEAD RESTRAINT

913: 9051 311A/611A/411A/721A/751A+809/801A+809

913: QFT169A2141 BLACK

913: 9051 311A/411A/611A/721A/751A/801A

QTY: 001

HEAD RESTRAINT, RIGHT

913: 9051 311A/611A/411A/721A/751A+809/801A+809

913: QFT169A2141 BLACK

913: 9051 311A/411A/611A/721A/751A/801A

QTY: 001

HEAD RESTRAINT

QTY: 001

Replaced by A 1699701650

914: 9E01 311A/611A

914: QFT169A2004 BLACK

QTY: 001

914: 9E01 311A/611A

914: QFT169A2004 BLACK

QTY: 001

HEATING PAD

2-PIN JPT2.8;R13/3

QTY: 001

or

HEATED CUSHION, BACKREST

2-PIN JPT2.8;R13/4

QTY: 002

or

HEATED CUSHION, FRONT PASSENGER SEAT

2-PIN JPT2.8;R13/3

QTY: 001

HEATING PAD

1.5-2.5 MM2 JPT;R13/3

or

HEATED CUSHION, BACKREST

1.5-2.5 MM2 JPT;R13/4

HEATED CUSHION, BACKREST

1.5-2.5 MM2 SLK2.8

or

HEATED CUSHION, FRONT PASSENGER SEAT

1.5-2.5 MM2 SLK2.8

PRIMER PELLET SIDEBAG

2-PIN;R12/10

Replaced by A 0025402305

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

402: NO LONGER AVAILABLE

QTY: 001

or

PRIMER PELLET SIDEBAG

2-PIN;R12/10

Replaced by A 0025402305

402: NO LONGER AVAILABLE

QTY: 001

PRIMER PELLET SIDEBAG

2-PIN 0.5MM2;R12/10

030: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

030: SEE WIS FOR REPAIR INSTRUCTIONS.

030: =================================================================================================

030: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

030: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

030: A 002 546 00 41 RED 2.0 - 4.0 MM2

030: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

030: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

030: BUTT JOINT:

030: A 002 546 13 41 0.5 MM2

030: A 002 546 14 41 0.8 MM2

030: A 002 546 15 41 1.3 MM2

030: A 002 546 16 41 2.0 MM2

030: ===================================================================================================

031: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

or

PRIMER PELLET SIDEBAG

2-PIN 0.5MM2;R12/10

031: ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41; CABLE TIE 5 X A 002 997 24 90

QTY: 001

HEADREST ADJUSTMENT

4-PIN MQS;M28/4

QTY: 001

HEADREST ADJUSTMENT

0.75 MM2 MQS
