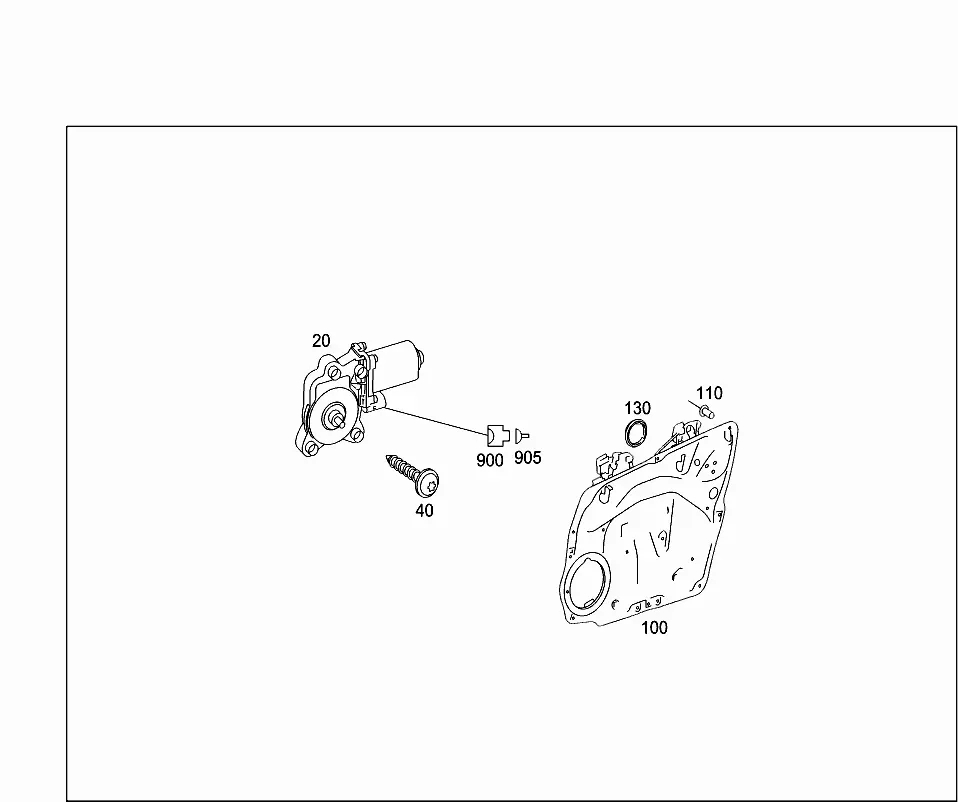

Window regulator motor

RIGHT; WITH GUIDE RAIL

QTY: 001

LEFT; WITH GUIDE RAIL

Replaced by A 1697203179

QTY: 001

LEFT; WITH GUIDE RAIL

QTY: 001

RIGHT; WITH GUIDE RAIL

Replaced by A 1697203279

QTY: 001

INSIDE PART LEFT

QTY: 009

or

INSIDE PART RIGHT

QTY: 009

LEFT POWER WINDOW MOUNTING HOLE

QTY: 002

or

RIGHT POWER WINDOW MOUNTING HOLE

QTY: 002

LEFT

011: From Chassis: J 530922

011: From Date: 10.09.2007

Except for the model year808

QTY: 001

RIGHT

011: From Chassis: J 530922

011: From Date: 10.09.2007

Except for the model year808

QTY: 001

LEFT POWER WINDOW MOTOR

QTY: 003

or

RIGHT POWER WINDOW MOTOR

QTY: 003

LEFT POWER WINDOW MOTOR

6-PIN SLK2.8;M10/1

QTY: 001

RIGHT POWER WINDOW MOTOR

2-PIN SLK2.8;M10/2

QTY: 001

LEFT POWER WINDOW MOTOR

0.75-1.0 MM2 SLK2.8;M10/1

LEFT POWER WINDOW MOTOR

2.5 MM2 SLK;M10/1

022: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.

022: SEE WIS FOR REPAIR INSTRUCTIONS.

022: =================================================================================================

022: SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:

022: A 001 546 99 41 GREEN 0.7 - 2.4 MM2

022: A 002 546 00 41 RED 2.0 - 4.0 MM2

022: A 002 546 01 41 BLUE 3.5 - 8.0 MM2

022: A 002 546 11 41 YELLOW 7.5 - 12.0 MM2

022: BUTT JOINT:

022: A 002 546 13 41 0.5 MM2

022: A 002 546 14 41 0.8 MM2

022: A 002 546 15 41 1.3 MM2

022: A 002 546 16 41 2.0 MM2

022: ===================================================================================================

RIGHT POWER WINDOW MOTOR

2.5-4.0 MM2 SLK2.8;M10/2

RIGHT POWER WINDOW MOTOR

2.2-3.0 MM;M10/2
