Vehicle controls

Pedal assembly

Assembly diagrams

4 diagrams

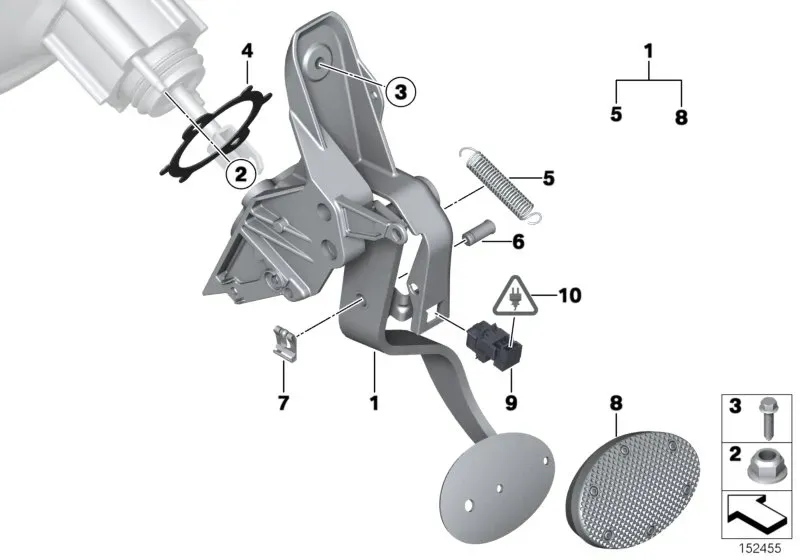

Pedal assembly diagram

Parts

9 parts

35106795833 Offers

?
without pedal support
QTY: 1
No further intervention permitted
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 1593.480
Old part number: 35006770613
07119905374 Offers

M8-10 ZNS3
QTY: 2
Reconditioned part number: ?
Weight: 0.009
Old part number: ?
32301094716 Offers

M8X36-8.8-ZNS3
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.021
Old part number: 32300398579
34336770915 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
35216772408 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.010
Old part number: ?
34336772409 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 0.014
Old part number: ?
07129904567 Offers

B10-ZNS3
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.003
Old part number: 35206778999
35006860690 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.059
Old part number: 35216765829,?
61316967601 Offers

?
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 20.390
Old part number: 61310141214
