Seats

Front seat backrest frame

Assembly diagrams

12 diagrams

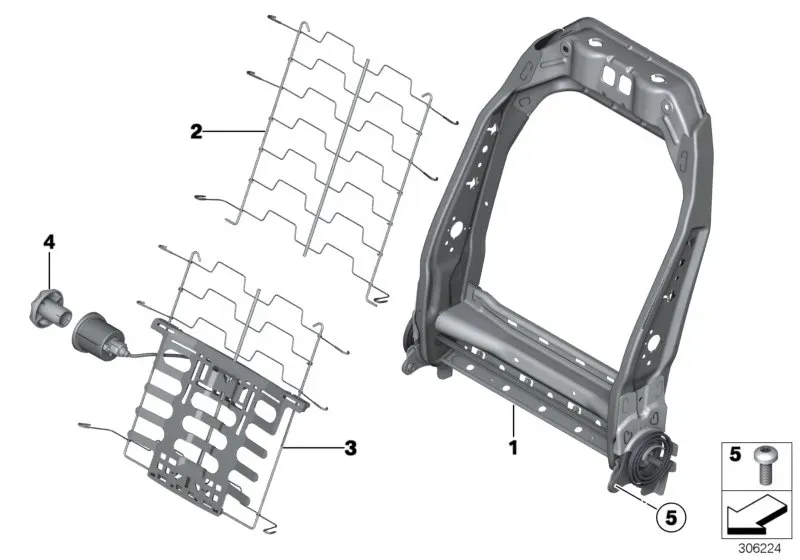

Front seat backrest frame diagram

Parts

7 parts

52109806631 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 4.500
Old part number: ?
52109806632 Offers

?
QTY: 1
Reconditioned part number: ?
Weight: 4.500
Old part number: ?
52109801325 Offers

?
QTY: 2
Reconditioned part number: ?
Weight: 0.001
Old part number: ?
52109809396 Offers

?
For vehicles with "Lumbar support, driver and passenger" (S488A = yes)
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.337
Old part number: 52109801328,?
52109809395 Offers

?
For vehicles with "Lumbar support, driver and passenger" (S488A = yes)
QTY: 1
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.337
Old part number: 52109801327,?
52109809532 Offers

?
For vehicles with "Lumbar support, driver and passenger" (S488A = yes)
QTY: 2
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.032
Old part number: 52109807775,?
07119908521 Offers

M10X18
QTY: 4
Reconditioned part number: ?
Replaceability: Retroactively replaceable
Weight: 0.022
Old part number: 07149812037
