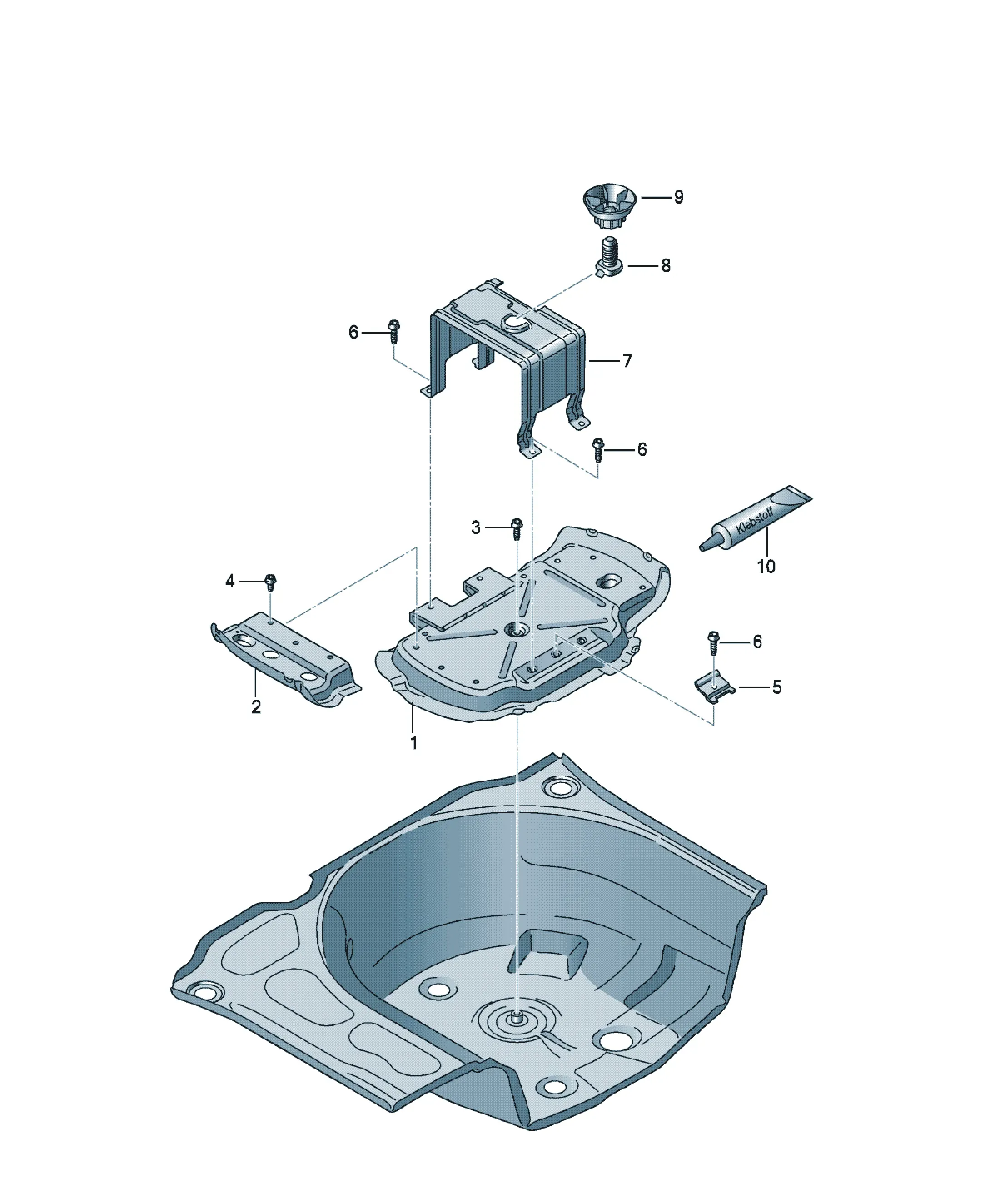

Battery mounting

[Name] [Note] [Model info] [QTY]

Washer 8 PR:TP4 5

[Name] [Note] [QTY]

Washer 8 5

[Name] [Note] [Model info] [QTY]

Washer 8 PR:K8C,K8G+ 5

TF0

[Name] [QTY]

Battery console 1

(Luggage compartment)

[Name] [Model info] [QTY]

Battery console PR:TP4 1

(Luggage compartment)

[Name] [Model info] [QTY]

Battery console PR:K8C,K8G+ 1

(Luggage compartment) TF0

[Name] [Note] [Model info] [QTY]

1K window adhesive 180ML PR:TP4 X

[Name] [Note] [QTY]

1K window adhesive 180ML X

[Name] [Note] [Model info] [QTY]

1K window adhesive 180ML PR:K8C,K8G+ X

TF0

[Name] [Model info] [QTY]

Additional reinforcement PR:K8C,K8G+ 1

(Luggage compartment) TF0

[Name] [QTY]

Additional reinforcement 1

(Luggage compartment)

[Name] [Model info] [QTY]

Additional reinforcement PR:TP4 1

(Luggage compartment)

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M8X25 PR:TP4 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X25 1

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M8X25 PR:K8C,K8G+ 1

TF0

[Name] [Note] [Model info] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 PR:K8C,K8G+ 3

TF0

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 3

[Name] [Note] [Model info] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 PR:TP4 3

[Name] [QTY]

clamping strip for battery 1

(Luggage compartment)

[Name] [Model info] [QTY]

clamping strip for battery PR:K8C,K8G+ 1

(Luggage compartment) TF0

[Name] [Model info] [QTY]

clamping strip for battery PR:TP4 1

(Luggage compartment)

[Name] [Note] [Model info] [QTY]

Hex collared bolt M8X30 PR:TP4 5

also use: N 011 517 1 5

Accompanying details: N 0115171

[Name] [Note] [Model info] [QTY]

Hex collared bolt M8X30 PR:K8C,K8G+ 5

also use: N 011 517 1 TF0 5

Accompanying details: N 0115171

[Name] [Note] [QTY]

Hex collared bolt M8X30 5

also use: N 011 517 1 5

Accompanying details: N 0115171

[Name] [Note] [QTY]

Retainer for battery rear center 1

[Name] [Model info] [QTY]

Retainer for battery PR:K8C,K8G+ 1

(Luggage compartment) TF0

[Name] [Model info] [QTY]

Retainer for battery PR:TP4 1

(Luggage compartment)

[Name] [QTY]

bolt for spare wheel mounting 1

[Name] [Model info] [QTY]

bolt for spare wheel mounting PR:K8C,K8G+ 1

TF0

[Name] [Model info] [QTY]

bolt for spare wheel mounting PR:TP4 1

[Name] [Model info] [QTY]

nut for spare wheel mounting PR:TP4 1

[Name] [Model info] [QTY]

nut for spare wheel mounting PR:K8C,K8G+ 1

TF0

[Name] [QTY]

nut for spare wheel mounting 1
