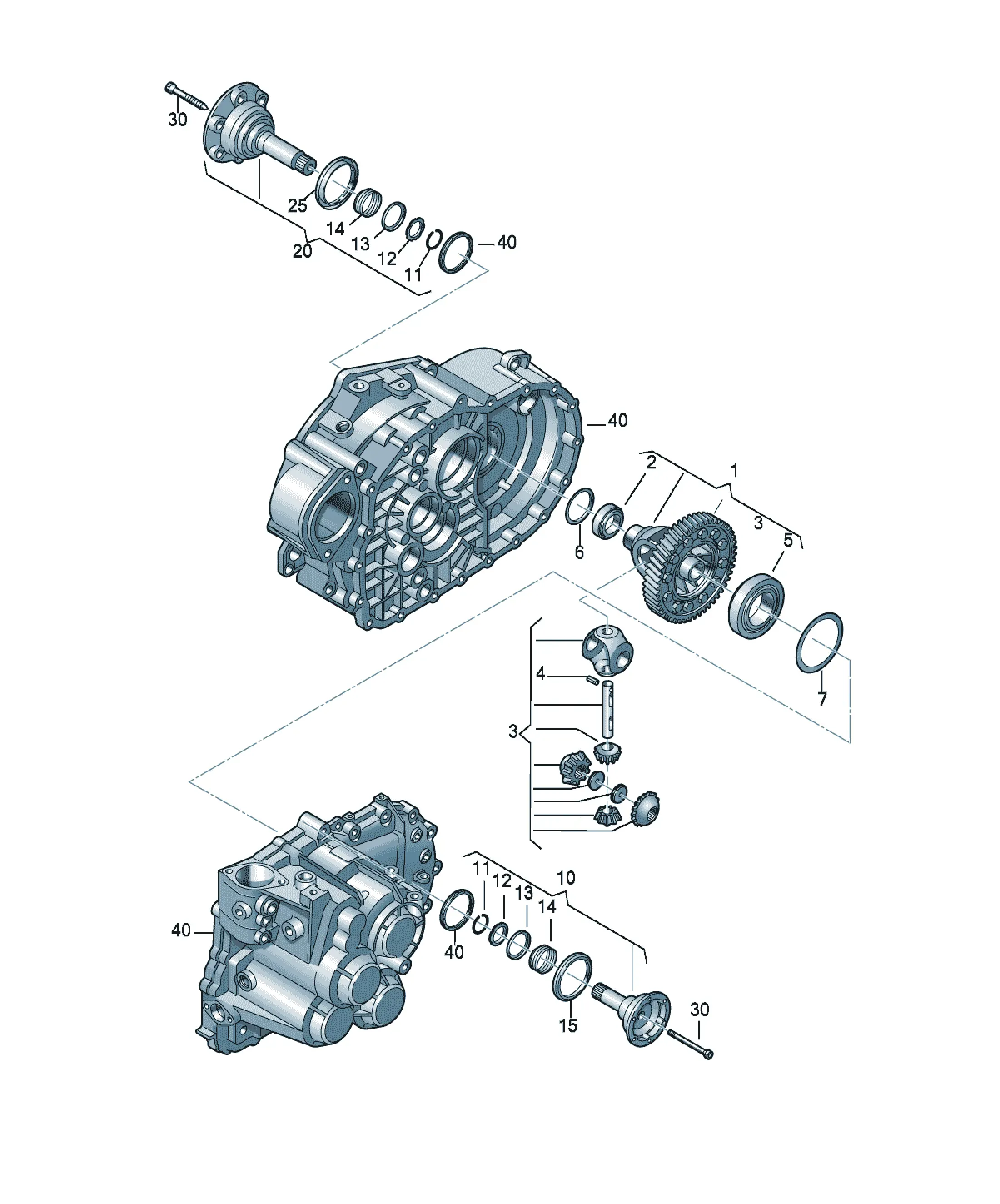

Differential

[Name] [Note] [Model info] [QTY]

Differential 69/20/25 NJU 1

[Name] [Note] [Model info] [QTY]

Differential 68/21/26 LNK,PEF 1

[Name] [Note] [QTY]

Flanged shaft left 1

D >> - 01.10.2012 D=113MM

[Name] [Note] [QTY]

Flanged shaft left 1

D - 02.10.2012>>

[Name] [Note] [QTY]

Securing ring 30,5 2

[Name] [QTY]

tapered ring 2

[Name] [Note] [QTY]

thrust washer 32X47 2

[Name] [Note] [QTY]

Pressure spring 1

only to be used for: 02M 409 344 J

[Name] [Note] [QTY]

Pressure spring 1

only to be used for: 02M 409 344 J

[Name] [Note] [QTY]

protective ring left 1

[Name] [Note] [QTY]

Taper roller bearing 46X75X18 1

[Name] [Note] [QTY]

Flanged shaft right 1

[Name] [Note] [QTY]

protective ring right 1

[Name] [Note] [QTY]

1 set: differential pinions ball:92mm 1

repair set

02E409159C Large differential bevel gear 2

02E409169D differential pinion 2

02M409177B shaft - differential pinion 1

N 90538701 Spring pin 5,4X28,5 1

02M409170A Thrust washer assembly 1

02M409373A flange shaft nut 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head 83MM 2

[Name] [Note] [QTY]

Spring pin 5,4X28,5 1

[Name] [Note]

see illustration: 301-045

[Name] [Note] [QTY]

Taper roller bearing 46X75X18 1

[Name] [Note] [QTY]

Baffle plate 74,9 1

[Name] [Note] [QTY]

1 set shims 0,65-1,25 1

repair set

02B409210 adjusting washer 0,65 1

02B409210A adjusting washer 0,7 1

02B409210B adjusting washer 0,75 1

02B409210C adjusting washer 0,8 1

02B409210D adjusting washer 0,85 1

02B409210E adjusting washer 0,9 1

02B409210F adjusting washer 0,95 1

02B409210G adjusting washer 1 1

02B409210H adjusting washer 1,05 1

02B409210J adjusting washer 1,1 1

02B409210K adjusting washer 1,15 1

02B409210L adjusting washer 1,2 1

02B409210M adjusting washer 1,25 1
