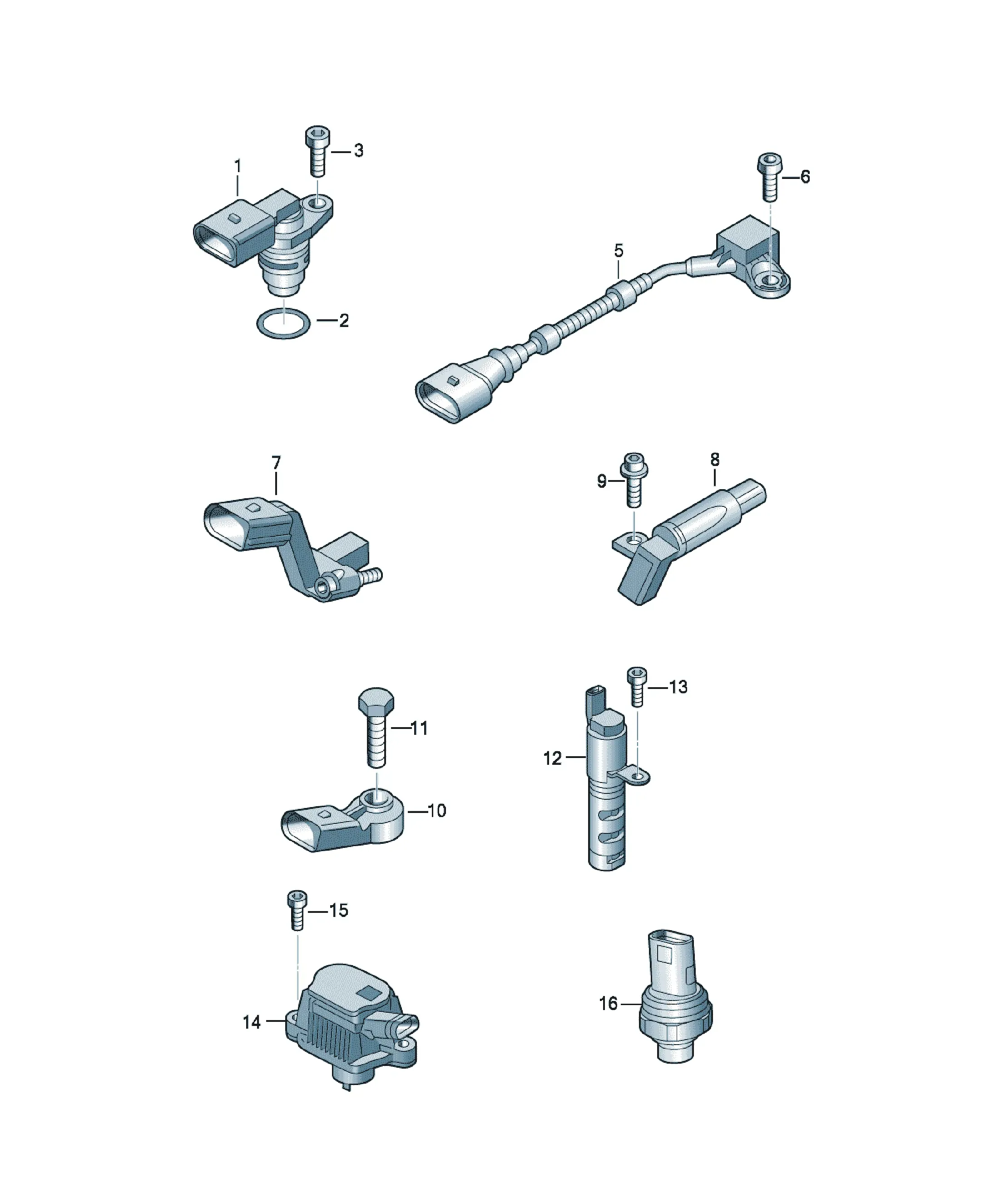

Engine sensors

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 1

[Name] [Model info] [QTY]

impulse sender CAYB,CAYC, 1

Camshaft CFHD,CFWA,

CLNA

mating connector

1J0973723 flat contact housing with gasket 3 pin 1

Possible single wire: 000 979 133 E X

000 979 133 EA X

000 979 225 E

000 979 225 EA

[Name] [Model info] [QTY]

impulse sender BTS,CGPA, 1

Camshaft CGPB,CAVE,

CNKA,CBZB,

CJLB,CAVF,

CTHE,CTJC,

CTJB,CTHF,

CBZA

Items supplied

030906149A O-ring 18,1X1,55 1

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire: 000 979 131 X

000 979 131 A X

counterpart to: 1J0 973 803

[Name] [Model info] [QTY]

impulse sender CGGB 1

cylinder head cover

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire: 000 979 131 X

000 979 131 A X

counterpart to: 1J0 973 803

1J0973723 flat contact housing with gasket 3 pin 1

Possible single wire: 000 979 133 X

000 979 133 A

000 979 225

000 979 225 A

[Name] [Model info] [QTY]

impulse sender CPTA 1

Camshaft

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Model info] [QTY]

Hall sensor CEKA 1

Camshaft

[Name] [Model info] [QTY]

Knock sensor BTS,CBZB 1

CEKA,CGPA,

CGPB,CAVE,

CAVF,CFWA,

CLNA,CGGB,

CNKA,CPTA,

CJLB,CTHE,

CTJC,CTJB,

CTHF,CBZA

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin AUDI 1

black

[Name] [Note] [Model info] [QTY]

Hexagon bolt M8X30 BTS,CEKA, 1

CGPA,CGPB,

CAVE,CAVF,

CBZB,CLNA,

CGGB,CNKA,

CJLB,CTHE,

CTJC,CTJB,

CTHF,CBZA

[Name] [Model info] [QTY]

control valve CPTA 2

Camshaft

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X16 CPTA 1

[Name] [Model info] [QTY]

Solenoid valve CPTA 4

cylinder head cover

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [Model info] [QTY]

round hd. screw M5X20 CPTA 8

[Name]

Not for this model

[Name] [Note] [Model info] [QTY]

Socket head bolt M6X16 CGPA,CGPB, 1

CJLB

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X16 CAYB,CAYC, 1

CFHD,CFWA,

CLNA,CGGB

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X16 CPTA 1

[Name]

Not for this model

[Name]

Not for this model

[Name] [Model info] [QTY]

impulse sender BTS,CGGB 1

Crankshaft

D >> - 29.09.2014

mating connector

8E0973703C Flat contact housing with contact locking mechanism 3 pin 1

black

1J0973703B Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

[Name] [Note] [Model info] [QTY]

impulse sender 3 pin CEKA 1

Crankshaft

Securing element: N 909 450 02 1

[Name] [Model info] [QTY]

speed sensor CGPA,CGPB, 1

Crankshaft CJLB

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire: 000 979 131 X

000 979 131 A X

counterpart to: 1J0 973 803

[Name] [Model info] [QTY]

impulse sender CPTA 1

Crankshaft

mating connector

4H0973703A Flat contact housing 3 pin 1

brown

[Name] [Note] [Model info] [QTY]

impulse sender 3 pin PR:7L6+CAVE, 1

Crankshaft CBZB,CBZA,

CAVF,CTHF,

CTJB

mating connector

8K0973703H Flat contact housing with contact locking mechanism 3 pin 1

orange

Possible single wire: 000 979 025 A 0,5 X

000 979 030 0,5 X

[Name] [Note] [Model info] [QTY]

impulse sender 3 pin PR:7L3+CAVE, 1

Crankshaft CBZB,CBZA,

CAVF,CTHF,

CTJB

mating connector

8E0973703C Flat contact housing with contact locking mechanism 3 pin 1

black

1J0973703B Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

[Name] [Note] [Model info] [QTY]

impulse sender 3 pin CAYB,CAYC, 1

Crankshaft CFHD,CFWA,

D >> - 15.09.2014 CLNA,CNKA

mating connector

8E0973703C Flat contact housing with contact locking mechanism 3 pin 1

black

1J0973703B Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

[Name] [Note] [Model info] [QTY]

impulse sender 3 pin CAYB,CAYC, 1

Crankshaft CFHD,CFWA,

D - 15.09.2014>> CLNA,CNKA

mating connector

1J0973703B Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

8K0973703F Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

[Name] [Model info] [QTY]

impulse sender BTS,CGGB 1

Crankshaft

D - 29.09.2014>>

mating connector

1J0973703B Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

8K0973703F Flat contact housing with contact locking mechanism 3 pin 1

black

also to be used for: green

[Name] [Model info] [QTY]

control valve CPTA 1

mating connector

07P973702 Flat contact housing with contact locking mechanism 1

[Name] [Model info] [QTY]

control valve PR:D31,D32, 1

Camshaft D3H

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

Possible single wire: 000 979 131

000 979 131 A

[Name] [Note] [Model info] [QTY]

Socket head bolt M6X16 CGPA,CGPB, 1

CFHD,CJLB
