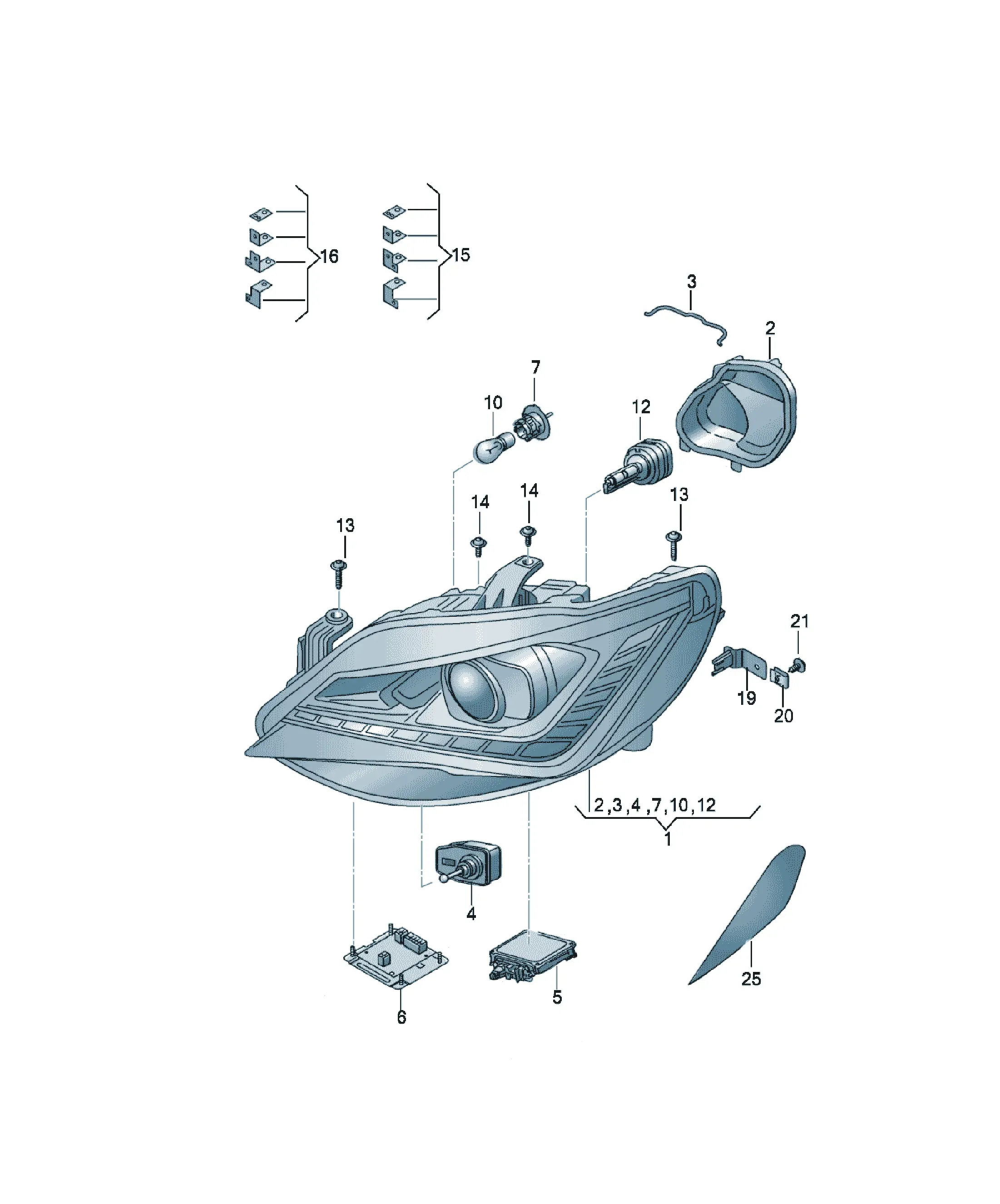

Headlight

[Name] [QTY]

Retaining plate 1

Power module for cornering light

[Name] [Note] [QTY]

Gas discharge headlight with LED modules right rhd 1

D - 28.05.2012>>

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

[Name] [Note] [QTY]

Gas discharge headlight with LED modules left rhd 1

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

[Name] [Note] [QTY]

Gas discharge headlight with LED modules left lhd 1

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

[Name] [Note] [QTY]

Gas discharge headlight with LED modules right lhd 1

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

[Name] [Note] [QTY]

Gas discharge headlight with LED modules right rhd 1

D >> - 27.05.2012

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

[Name] [Note] [QTY]

Bulb, yellow'longlife' PY21W12V 2

[Name] [QTY]

Gas discharge lamp 2

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X40 2

[Name] [Note] [QTY]

Semi round bolt (combi) with hexagon socket head M6X22 4

[Name] [Note] [QTY]

repair kit for headlamp housing left 1

repair set

6J0941057 Clip 1

6J0941057A Clip 1

6J0941121 Clip 1

6J0941121A Clip 1

[Name] [Note] [QTY]

repair kit for headlamp housing right 1

repair set

6J0941058 Clip 1

6J0941058A Clip 1

6J0941122 Clip 1

6J0941122A Clip 1

[Name] [QTY]

cross member with mounting for headlights 2

[Name] [Note] [QTY]

Cover cap right 1

[Name] [Note] [QTY]

Cover cap left 1

[Name] [QTY]

Speed nut 1

[Name] [QTY]

Hexagon socket head panel bolt 1

[Name] [QTY]

Mask film for headlight 1

For use on vehicles with right-hand traffic headlights

For use on vehicles with left-hand traffic headlights

repair set

Mask film Left,right 1

see workshop manual

[Name] [QTY]

Retaining clip 2

for high beam

[Name] [QTY]

Headlight range control motor 2

Head light for gas discharge lamp

[Name] [QTY]

Control unit for gas discharge lamp 2

[Name] [QTY]

Power module for gas discharge light 2

[Name] [QTY]

Bulb holder 2
