Rear lights

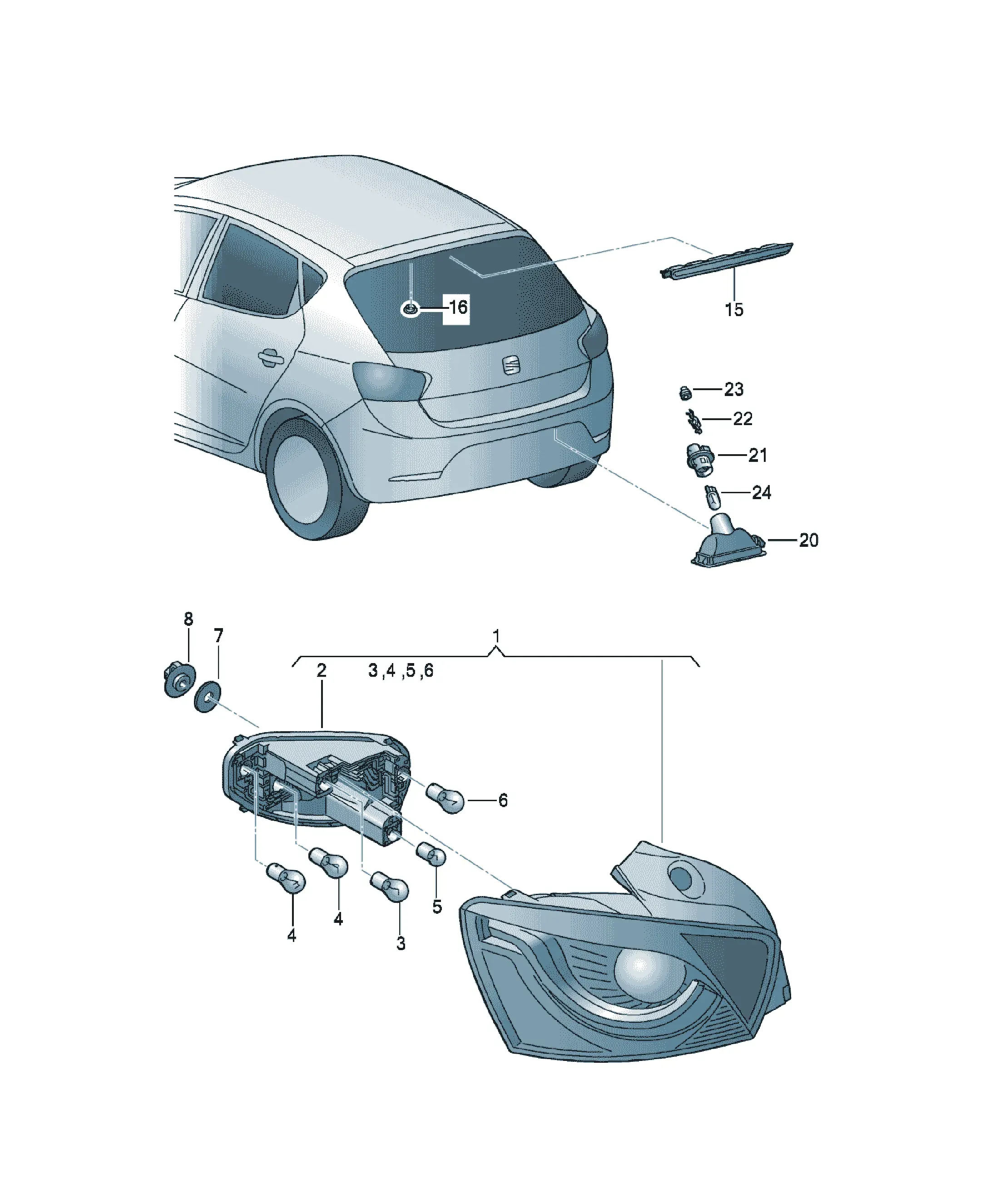

Rear lamp

Assembly diagrams

2 diagrams

Parts

60 parts

Connector housing 2-pin
1J0973702 Offers

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 2 pin PR:2JK,2JP, 2
2JQ
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
6J3945096R Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TD 1
2 doors
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096M Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TD 1
D - 28.05.2012>> 4-door
black
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096F Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TD 1
4-door
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095M Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TA, 1
4-door 8TD
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095F Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TA, 1
4-door 8TD
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096L Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TA, 1
4-door 8TC
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095N Offers

[Name] [Note] [Model info] [QTY]
Tail light with fog light left PR:8SA+8TC 1
2 doors
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095L Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TC 1
4-door
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095J Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TC 1
4-door
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096K Offers

[Name] [Note] [Model info] [QTY]
Tail lights with turn signal, brake and tail lights, reflector right PR:8SA 1
4-door
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096H Offers

[Name] [Note] [Model info] [QTY]
Tail lights with turn signal, brake and tail lights, reflector right PR:8SA 1
4-door
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095K Offers

[Name] [Note] [Model info] [QTY]
Tail lights with turn signal, brake and tail lights, reflector left PR:8SA 1
4-door
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945095H Offers

[Name] [Note] [Model info] [QTY]
Tail lights with turn signal, brake and tail lights, reflector left PR:8SA 1
4-door
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095F Offers

[Name] [Note] [Model info] [QTY]
Tail light with fog light left PR:8SA+8TC 1
2 doors
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096L Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TD 1
2 doors
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095P Offers

[Name] [Note] [Model info] [QTY]
Tail lights with reversing lights left PR:8SA,8TA+ 1
2 doors 8TD
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096Q Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TA, 1
2 doors 8TC
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096F Offers

[Name] [Note] [Model info] [QTY]
Tail lights with reversing lights right PR:8SA+8TA+ 1
2 doors 8TC
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096N Offers

[Name] [Note] [Model info] [QTY]
Tail lights with reversing lights right PR:8SA+8TA+ 1
2 doors 8TC
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095G Offers

[Name] [Note] [Model info] [QTY]
Tail lights with reversing lights left PR:8SA,8TA+ 1
2 doors 8TD
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096G Offers

[Name] [Note] [Model info] [QTY]
Tail light with fog light right PR:8SA+8TD 1
2 doors
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096P Offers

[Name] [Note] [Model info] [QTY]
Tail light with fog light right PR:8SA+8TD 1
2 doors
D - 28.05.2012>> black
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095M Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TC 1
2 doors
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095Q Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TC 1
2 doors
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095L Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TA, 1
2 doors 8TD
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945095R Offers

[Name] [Note] [Model info] [QTY]
LED tail light left PR:8SQ+8TA, 1
2 doors 8TD
black
D - 28.05.2012>>
mating connector
1J0973733 Flat contact housing 6 pin 1
6J3945096M Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TA, 1
2 doors 8TC
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J4945096J Offers

[Name] [Note] [Model info] [QTY]
LED tail light right PR:8SQ+8TA, 1
4-door 8TC
red
D >> - 27.05.2012
mating connector
1J0973733 Flat contact housing 6 pin 1
6J0945097B Offers

[Name] [Model info] [QTY]
Additional brake light PR:5J0 1
mating connector
1J0973119 Flat contact housing with contact locking mechanism 2 pin 1
6J3945097B Offers

[Name] [Model info] [QTY]
Additional brake light PR:5J2 1
D >> - 19.05.2014
mating connector
3C0973119C Flat contact housing with contact locking mechanism 2 pin 1
green
6J3945097D Offers

[Name] [Model info] [QTY]
Additional brake light PR:5J2 1
D - 20.05.2014>>
mating connector
3C0973119C Flat contact housing with contact locking mechanism 2 pin 1
green
6J4945097B Offers

[Name] [Model info] [QTY]
Additional brake light PR:5J8 1
D >> - 19.05.2014
mating connector
1J0973119 Flat contact housing with contact locking mechanism 2 pin 1
6J4945097E Offers

[Name] [Model info] [QTY]
Additional brake light PR:5J8 1
D - 20.05.2014>>
mating connector
1J0973119 Flat contact housing with contact locking mechanism 2 pin 1
6L0955440A9B9 Offers

[Name]
Satin black
6L0955440A Offers

[Name] [QTY]
Bungs 2
6J3945258 Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier right lhd PR:8TA,8TC 1
2 doors
6J3945257 Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier left lhd PR:8TC 1
2 doors
6J4945257D Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier left PR:8SA 1
4-door
6J3945258A Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier right rhd PR:8TD 1
2 doors
6J4945258C Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier right PR:8SQ+8TD 1
6J4945257B Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier left PR:8SQ+8TC 1
6J4945257C Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier left PR:8SQ+8TA, 1
8TD
6J4945258B Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier right PR:8SQ+8TA, 1
8TC
6J3945257A Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier left rhd PR:8TA,8TD 1
2 doors
6J4945258D Offers

[Name] [Note] [Model info] [QTY]
Bulb carrier right PR:8SA 1
4-door
3D0943021A Offers

[Name] [Note] [Model info] [QTY]
Licence plate light 'FR', PR:2JK,2JP, 2
'CUPRA', 2JQ
Connector: 1J0 973 702
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
6J0943021A Offers

[Name]
Licence plate light
mating connector
5P0972724 Flat contact housing 1
5P0972724 Offers

[Name] [Note] [QTY]
Flat contact housing 1
for turn signal side
Possible single wire:
000979147E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat connector/sleeve with retaining lug 5,0
with cable crosssection: 1,0QMM
5P0972564 Offers

[Name] [QTY]
Contact 1
5P0972740 Offers

[Name] [Note] [QTY]
gasket for bulb holder green 1
N0177535 Offers

[Name] [Note] [QTY]
bulb 'longlife' W5W-12V5W 1
N0177254 Offers

[Name] [Note] [Model info] [QTY]
bulb 'longlife' C5WLL-12V5W PR:2JK,2JP, 2
2JQ
N10256407 Offers

[Name] [Note] [QTY]
Bulb, yellow'longlife' PY21W12V 2
2+4 door
N0177382 Offers

[Name] [Note] [Model info] [QTY]
bulb P21/5W12V21/5W PR:8SA 4
2+4 door
N0177192 Offers

[Name] [Note] [Model info] [QTY]
bulb R10W-12V10W PR:8SA 2
4-door
N10591501 Offers

[Name] [Note] [QTY]
bulb W16W-12V 1
2 doors
N0177322 Offers

[Name] [Note] [QTY]
bulb P21W-12V21W 2
2+4 door
6J4945139 Offers

[Name] [QTY]
Seal 2
6J0945124 Offers

[Name] [Note] [QTY]
Spring pin M6 2
