Alternator

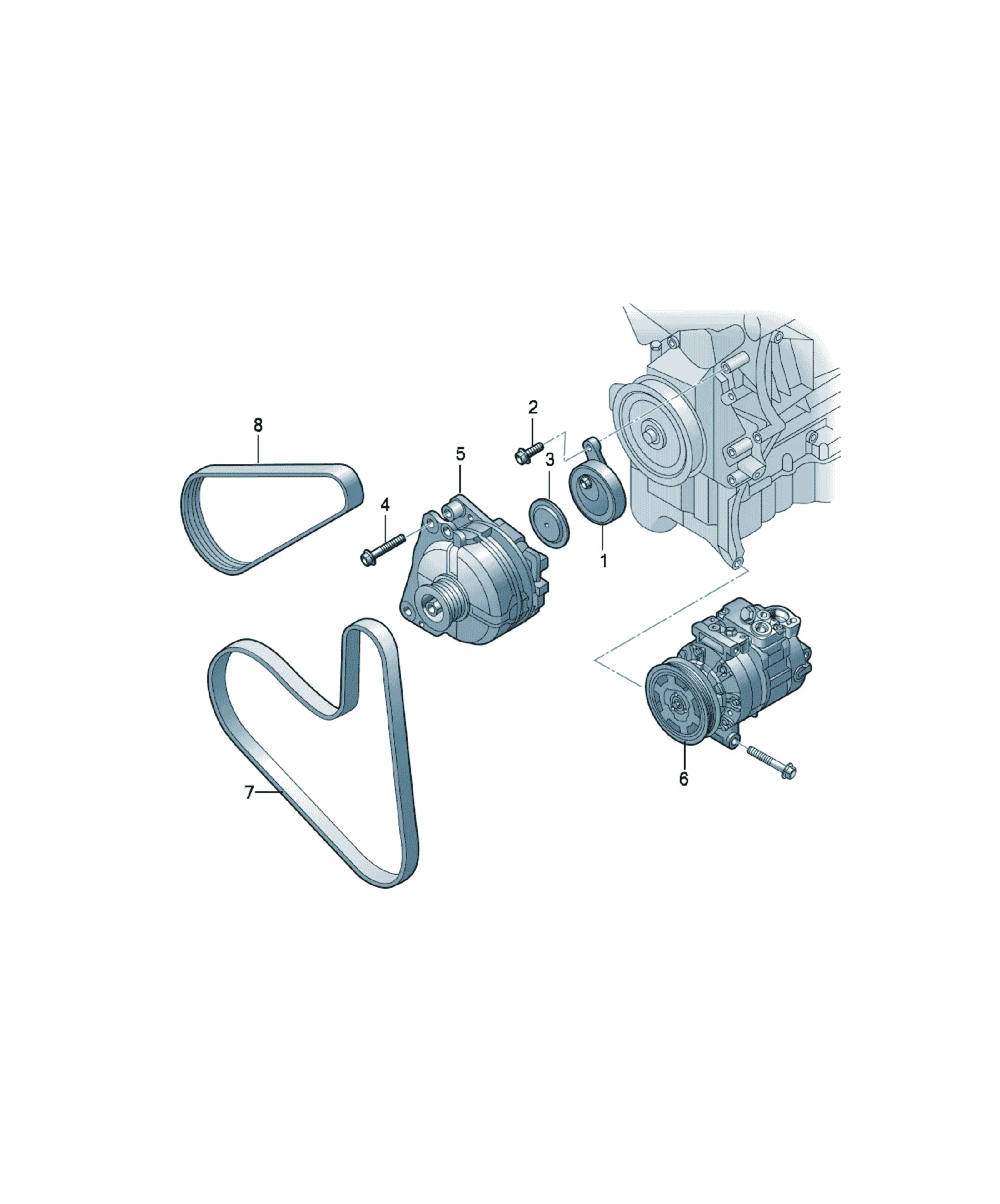

Alternator drive

Assembly diagrams

12 diagrams

11 parts

04E145299L Offers

[Name] [Note] [Model info] [QTY]
Belt tensioner damper PR:9AB,9AK 1
contains additional positions: 3
04E145299K Offers

[Name] [Note] [Model info] [QTY]
Belt tensioner damper PR:9AA 1
contains additional positions: 3
N10665001 Offers

[Name] [Note] [QTY]
Flat head multi-point socket bolt M8X30 2
059903343 Offers

[Name] [QTY]
Protective cap 1
N91204501 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X95 2
[Name] [Note]
Alternator
see illustration, item: 903-000,1
[Name] [Note] [Model info]
A/C compressor PR:9AB,9AK
see illustration, item: 260-005,1
04E145933A Offers

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X1000MM PR:9AB,9AK 1
for vehicles with air condit.
D >> - 18.11.2013
04E145933R Offers

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X1005MM PR:9AB,9AK 1
for vehicles with air condit.
D - 19.11.2013>>
04E145933G Offers

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X740MM PR:9AA 1
D >> - 18.11.2013
04E145933N Offers

[Name] [Note] [Model info] [QTY]
Poly-V-belt 21,36X746MM PR:9AA 1
D - 19.11.2013>>
