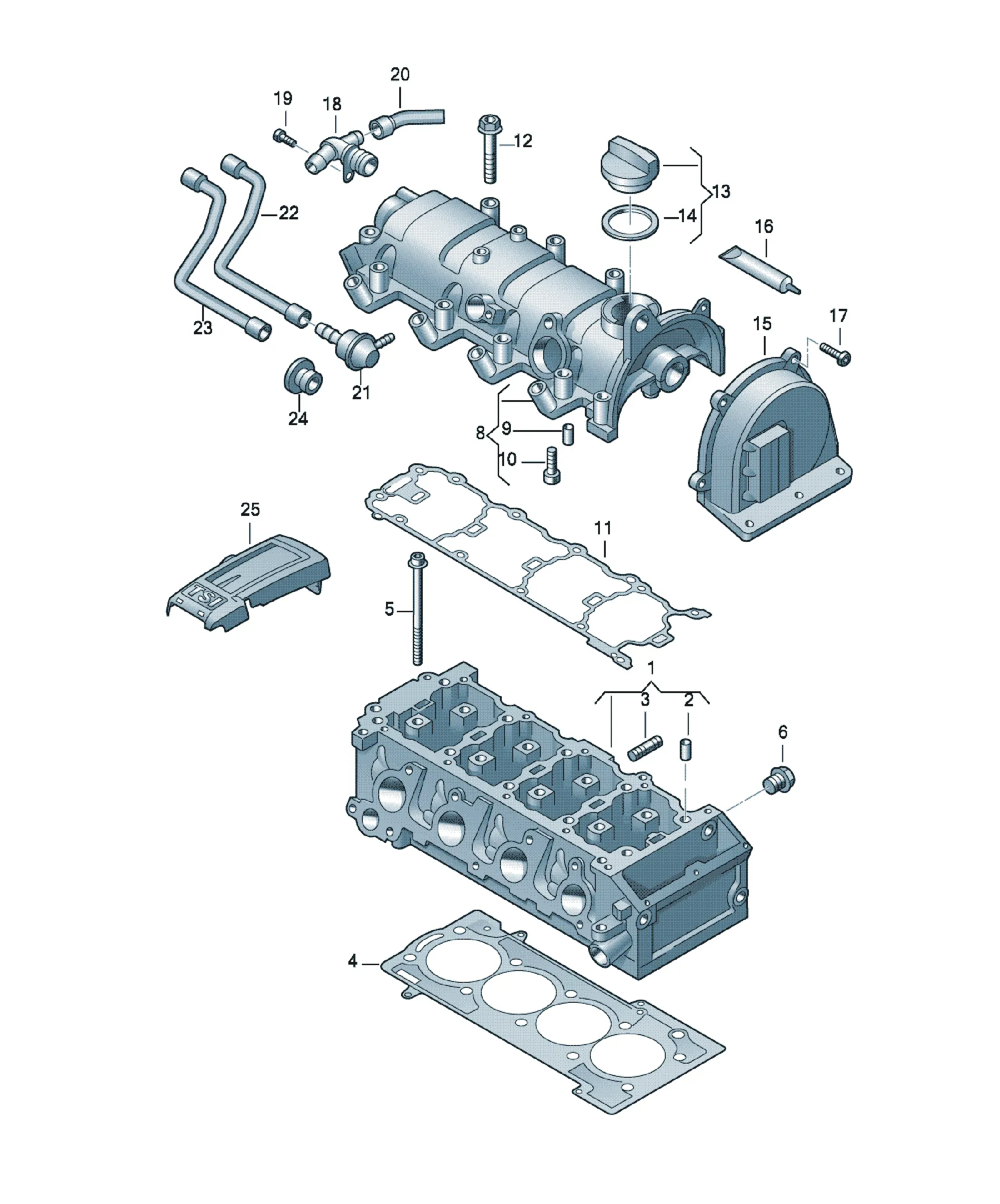

Cylinder head

[Name] [Note] [QTY]

sealant 100G X

adhesives and sealing compound

[Name] [Note] [QTY]

Silicon sealant 50ML 1

adhesives and sealing compound

[Name] [QTY]

Cylinder head 1

Items supplied

03F103353F Cylinder head 1

WHT004984 Threaded pin M8X25 8

[Name] [QTY]

cylinder head with valves 1

Items supplied

Valve stem seal 8

Inlet valve 4

exhaust valve 4

Valve spring 8

spring disc 8

cotter, split 16

equalizing element, hydraulic 8

roller rocker arm 8

Threaded pin Exh gas side 8

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 10

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon collar bolt with socket head M6X52 12

[Name] [Note] [QTY]

End cap 1

Label CASTROL

[Name] [QTY]

Seal 1

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

Silicon sealant 50ML 1

adhesives and sealing compound

[Name] [Note] [QTY]

round hd. screw M6X22 7

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 1

[Name] [Note] [QTY]

Cylinder pin 6X16 2

[Name] [QTY]

Vent hose 1

[Name] [QTY]

Valve 1

[Name] [Model info] [QTY]

Vent hose manual gearbox 1

[Name] [Model info] [QTY]

Vent hose Dual clutch gearbox+ 1

PR:7MG

[Name] [QTY]

Grommet 1

[Name] [Note]

see illustration, item: 905-000,16A

[Name] [Note] [QTY]

Threaded pin M8X25 8

[Name] [QTY]

Cylinder head gasket (metal) 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M9X168X93 10

[Name] [Note] [QTY]

Seal bolt with sealing ring M10X1X10 1

[Name] [QTY]

cylinder head cover 1

[Name] [Note] [QTY]

Cylinder pin 6X16 2
