Crankshaft

Crankshaft

Assembly diagrams

7 diagrams

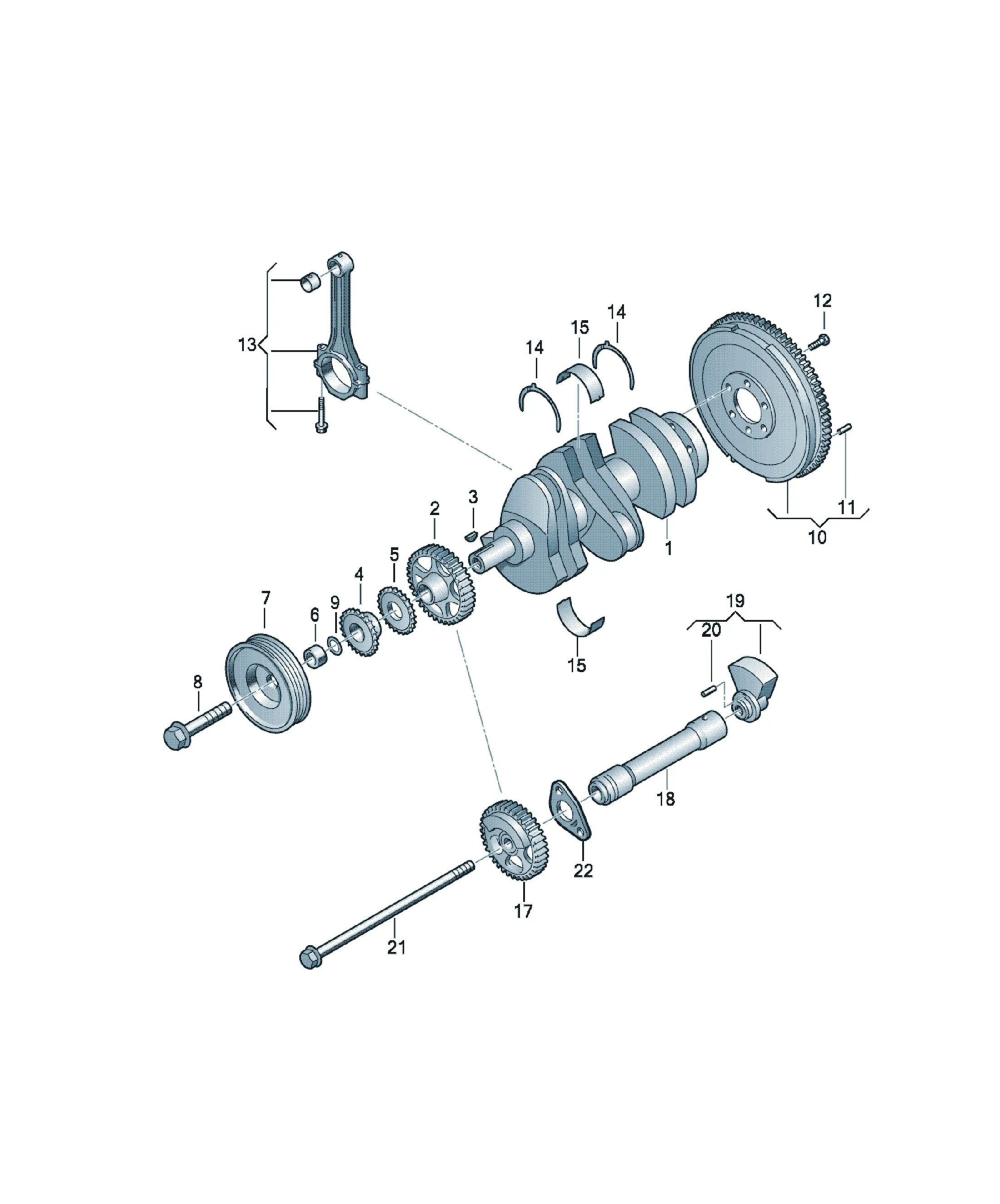

Crankshaft diagram

Parts

21 parts

[Name] [QTY]
Crankshaft 1
No replacement part
see workshop manual
03D105269 Offers

[Name] [QTY]
flywheel 1
For vehicles without start-stop operation
N0132102 Offers

[Name] [Note] [QTY]
Cylinder pin 6X16 3
N90206103 Offers

[Name] [Note] [QTY]
Hexagon bolt M10X1X19,5 6
[Name] [QTY]
conrod 3
No replacement part
see workshop manual
[Name] [QTY]
thrust washer 2
No replacement part
see workshop manual
[Name] [QTY]
crankshaft bearing shell 6
No replacement part
see workshop manual
03D103293A Offers

[Name] [Note] [QTY]
gear Z=67 1
[Name] [QTY]
balancer shaft X
No replacement part
[Name] [QTY]
Balancer weight X
No replacement part
03D103305E Offers

[Name] [Note] [QTY]
Drive wheel Z=67 1
[Name] [QTY]
Cylinder pin X
No replacement part
03D103109C Offers

[Name] [Note] [QTY]
dodecagonal head bolt M10X241 1
[Name] [Note] [QTY]
thrust washer 1
see illustration: 103-005
N90968101 Offers

[Name] [Note] [QTY]
woodruff key 4X5,1 1
03E105209N Offers

[Name] [Note] [QTY]
Chain sprocket Z=26 1
03E105209S Offers

[Name] [QTY]
Chain sprocket 1
03D105171E Offers

[Name] [Note] [QTY]
bush 1
also use: N 910 373 01 1
N 909 873 02 1
038 103 085 E 1
Accompanying details: N 91037301; N 90987302; 038103085E
03D105255D Offers

[Name] [QTY]
pulley 1
N90987302 Offers

[Name] [Note] [QTY]
dodecagonal head bolt M14X1,5X96X53 1
N91037301 Offers

[Name] [Note] [QTY]
O-ring 14X5,8 1
