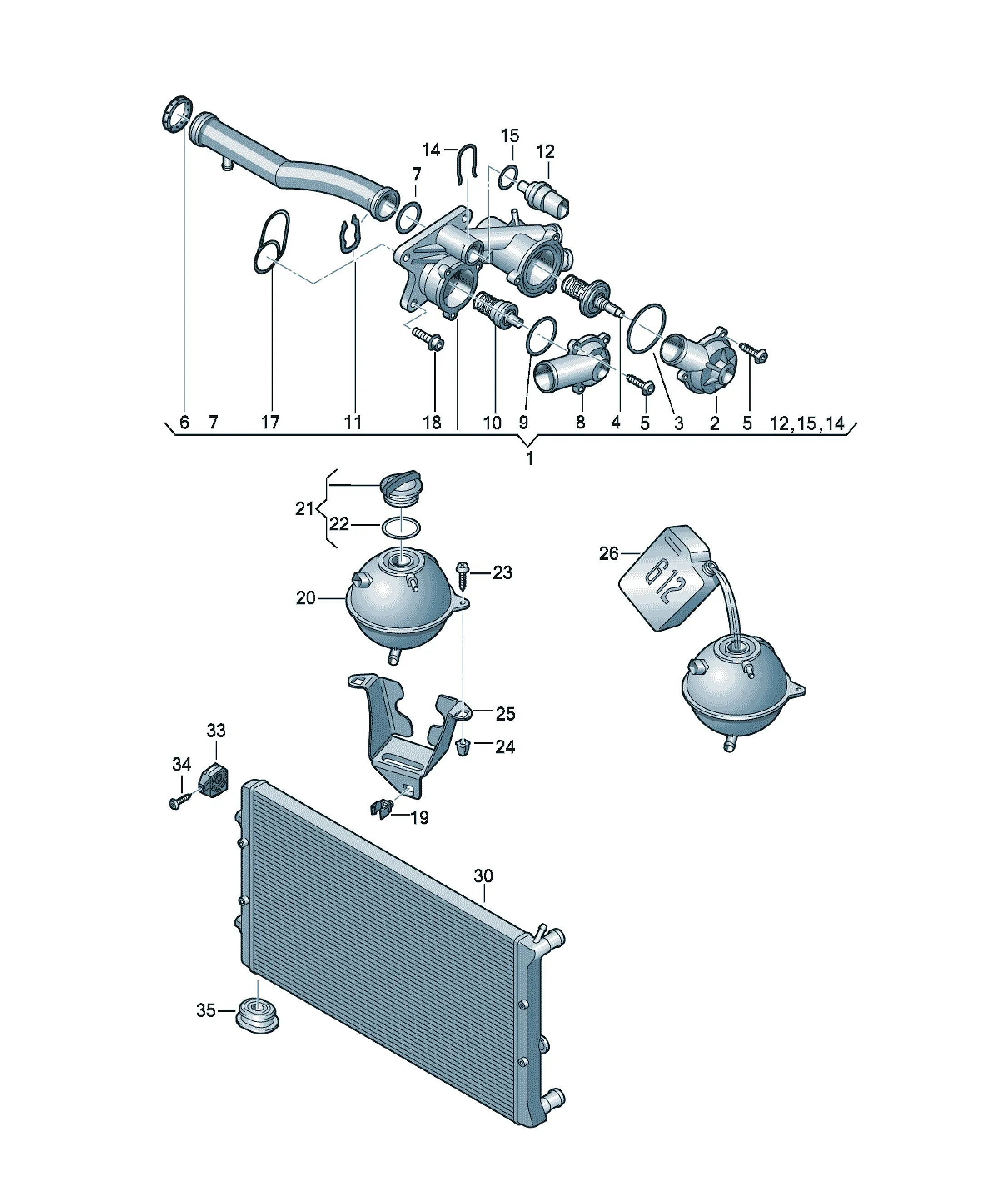

Thermostat housing

[Name] [QTY]

Coolant regulator housing 1

[Name] [Note] [QTY]

Coolant regulator 87C -102C 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant temperature sender 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X30 4

[Name] [QTY]

cover for thermostat 1

[Name] [QTY]

Reservoir 1

mating connector

1J0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

O-ring 28,5X3,8 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 3

[Name] [QTY]

insert nut 2

[Name] [QTY]

Retainer for reservoir 1

[Name] [Note] [QTY]

Coolant concentrate 60ltr. 1

[Name] [Note] [QTY]

Coolant additive, plus-plus 1.5 Ltr. 1

[Name] [Note] [QTY]

Coolant concentrate 210 l 1

[Name] [Note] [QTY]

O-ring 52,5X4,5 1

[Name] [Note] [Model info] [QTY]

Cooler for coolant 648X340X24 PR:1D2+8Z4, 1

for models with towing attachment and used in cold and moderate climates 8Z5,8Z7

[Name] [Note] [Model info] [QTY]

Cooler for coolant 648X340X24 PR:8Z6,8Z9 1

for vehicle use in warm climates

[Name] [Note] [Model info] [QTY]

Cooler for coolant 649X340X26 PR:1D0+8Z4, 1

for vehicles without trailer operation and vehicle use in cold and mild climate zones 8Z5,8Z7

[Name] [QTY]

Bracket 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X18,5 2

[Name] [Note] [QTY]

bush lower 2

[Name] [Note] [QTY]

Coolant regulator 83C-98C 1

[Name] [Note] [QTY]

oval head panel screw 6X22 6

[Name] [Note] [QTY]

O-ring 35,0X6,0 1

[Name] [QTY]

O-ring 1

[Name] [QTY]

cover for thermostat 1

[Name] [Note] [QTY]

O-ring 45X4 1
