Piston, rings

Piston assembly

Assembly diagrams

2 diagrams

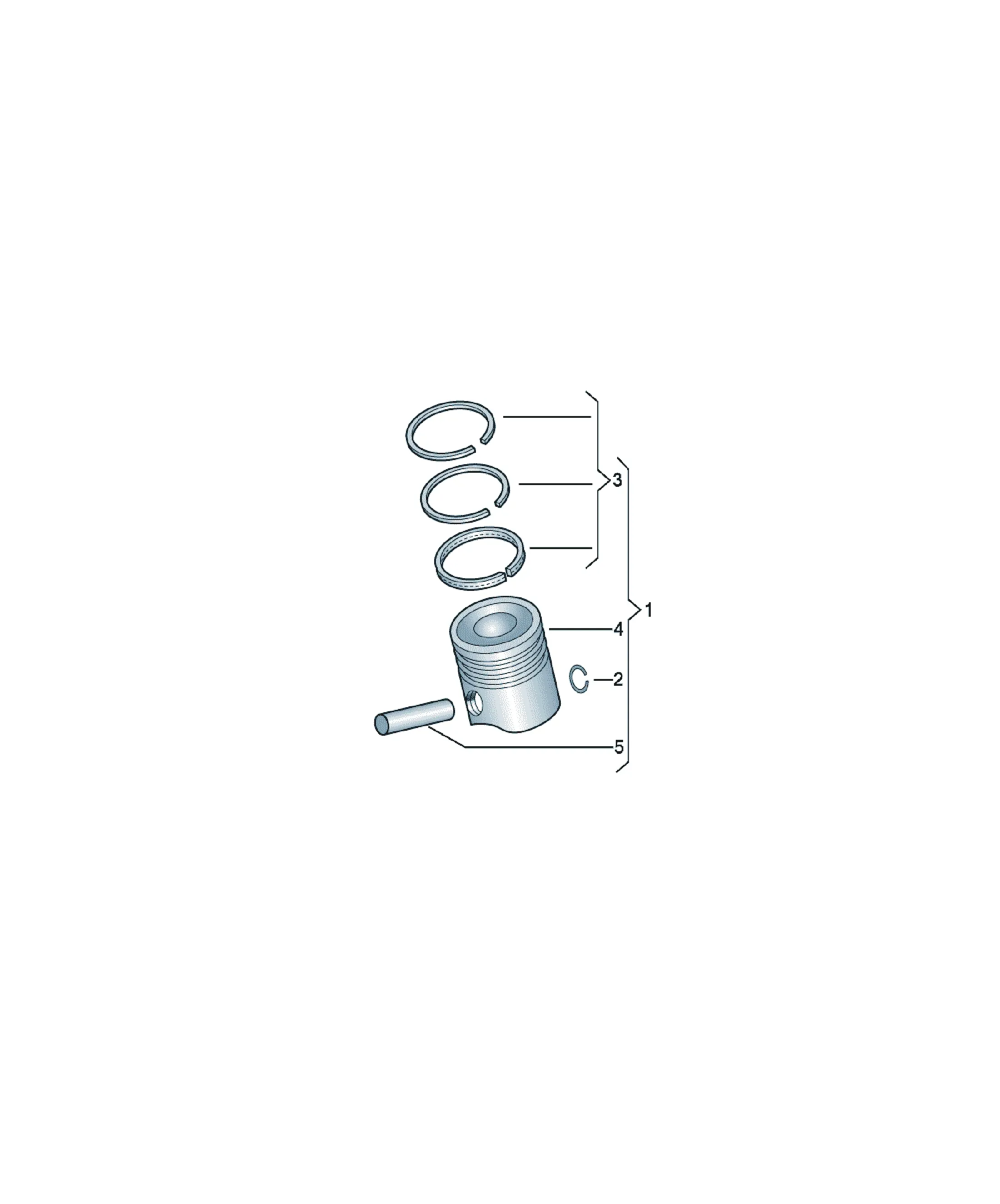

Piston assembly diagram

Parts

3 parts

04E107065ET Offers

[Name] [QTY]
piston complete 4
06A107441 Offers

[Name] [Note] [QTY]
snap ring C19X1,5 8
04E198151 Offers

[Name] [QTY]
1 set: piston rings 4
repair set
04E107301B piston ring, upper 1
04E107311M piston ring, lower 1
04E107321B oil scraper ring 1
