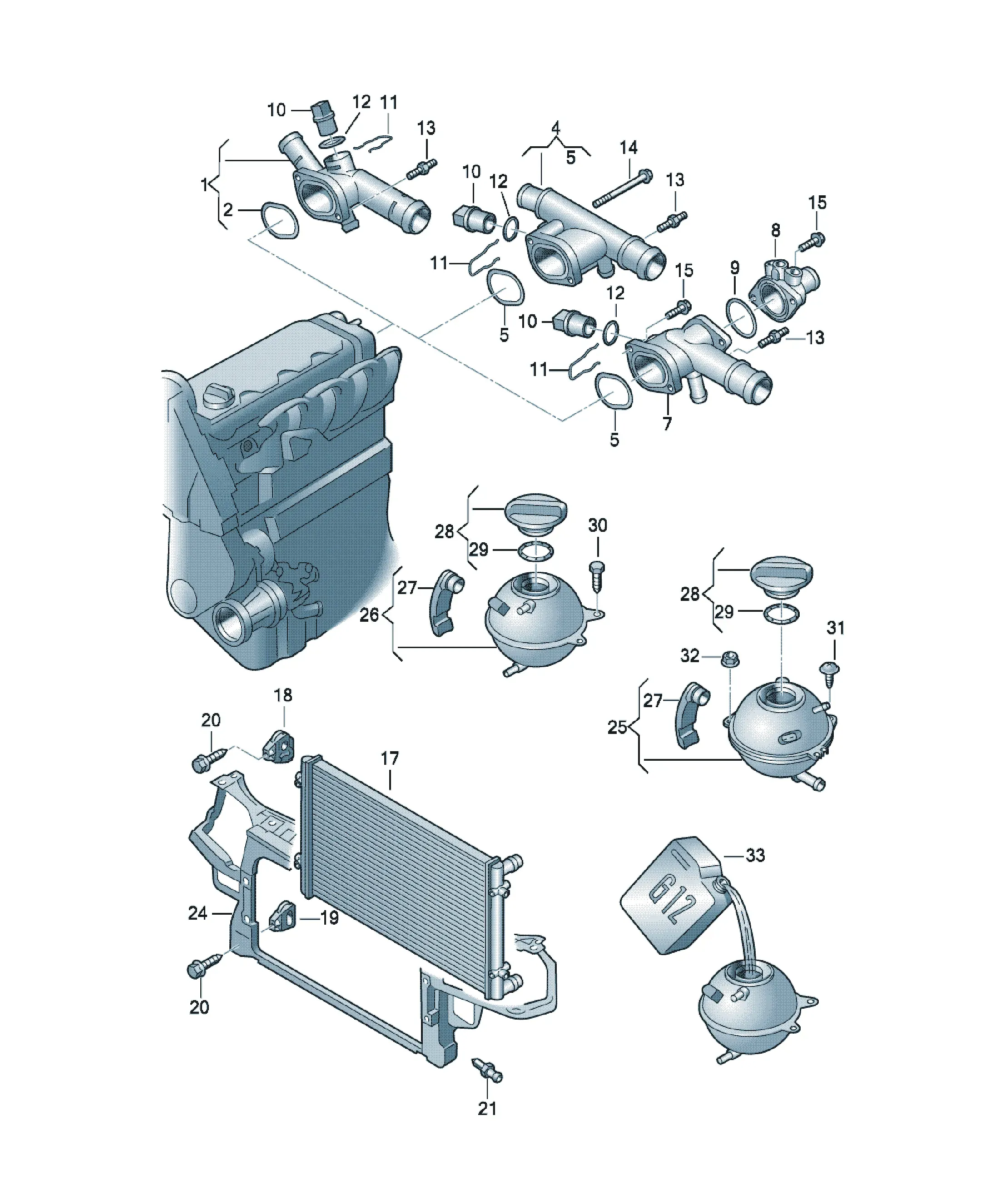

Cooling system

[Name] [Note] [QTY]

beading 410MM 1

[Name] [QTY]

flange with sealing ring 1

Items supplied

06A121133AC Coolant connection 1

N 90747001 seal ring 50X3,15 1

[Name] [QTY]

retaining spring X

[Name] [Note] [QTY]

O-ring 19,6X3,65 X

[Name] [Note] [QTY]

Cooler for coolant 648X340X24 1

[Name] [Note] [QTY]

Bracket upper 2

for vehicles with air condit.

[Name] [Note] [QTY]

bush lower 2

for vehicles with air condit.

[Name] [Note] [QTY]

seal ring 50X3,15 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X18,5 4

[Name] [Note]

see illustration: 805-000

[Name] [QTY]

Reservoir 1

mating connector

1J0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [QTY]

Cover cap 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

O-ring 28,5X3,8 1

[Name] [Note] [QTY]

hexagon head panel screw 6,8X12,5 2

[Name] [Note] [QTY]

Coolant additive, plus-plus 1.5 Ltr. X

[Name] [Note] [QTY]

Coolant concentrate 1.5 Ltr. X
