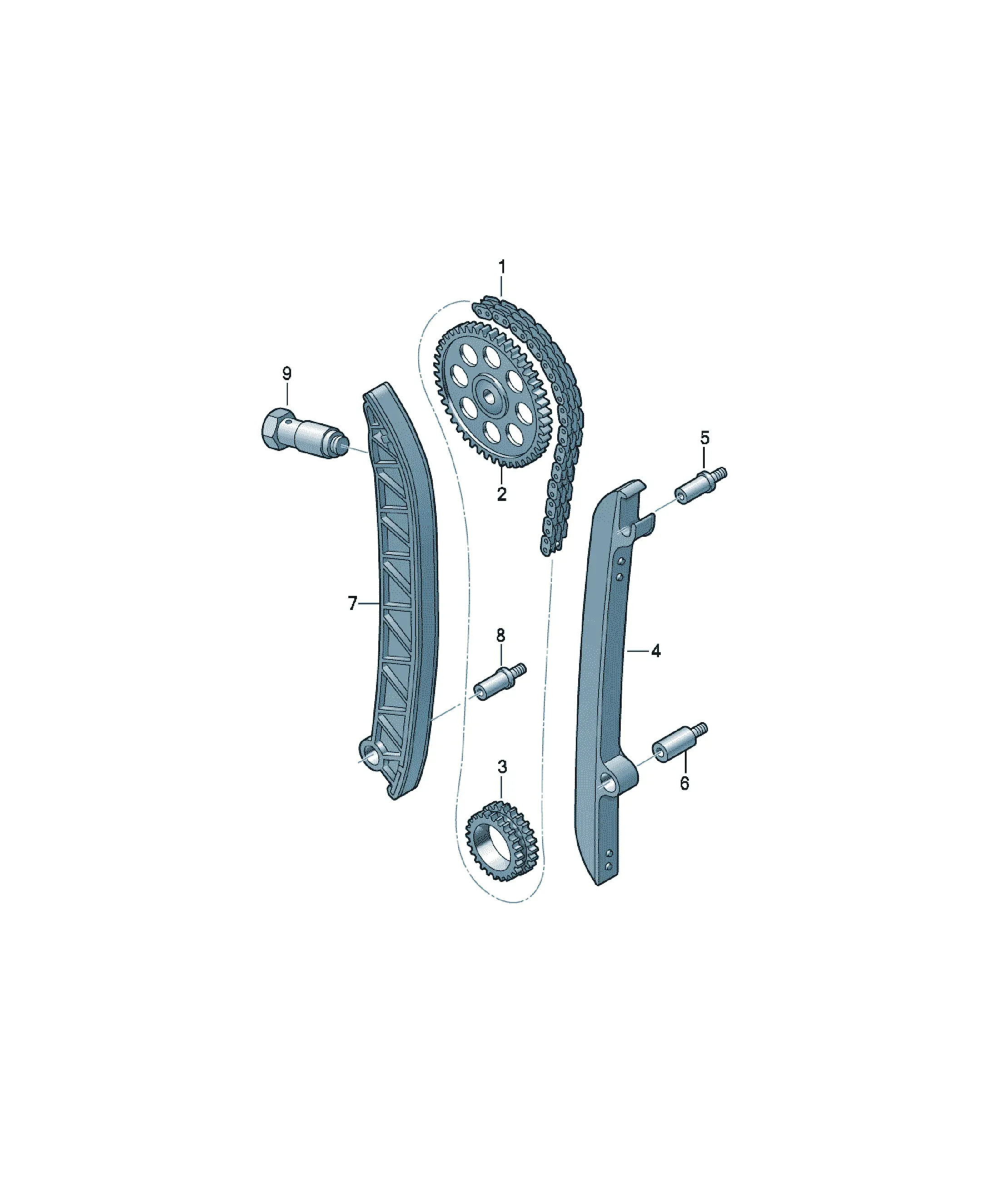

Timing chain diagram

Parts

9 parts

03F109158G Offers

[Name] [Note] [QTY]
timing chain 1
the following can be used as an alternative:
03F.109.158.J
[Name] [Note]
Chain sprocket
see illustration, item: 109-012,2
[Name]
Chain sprocket
No replacement part
03F109469E Offers

[Name] [QTY]
Guide rail 1
WHT004069 Offers

[Name] [Note] [QTY]
Bearing screw M8X16 1
WHT004068 Offers

[Name] [Note] [QTY]
Bearing screw M8X16 1
03F109509F Offers

[Name] [QTY]
slide rail 1
WHT004068 Offers

[Name] [Note] [QTY]
Bearing screw M8X16 1
03F109507F Offers

[Name] [QTY]
chain tensioner 1
