Power steering system

Power steering hose system

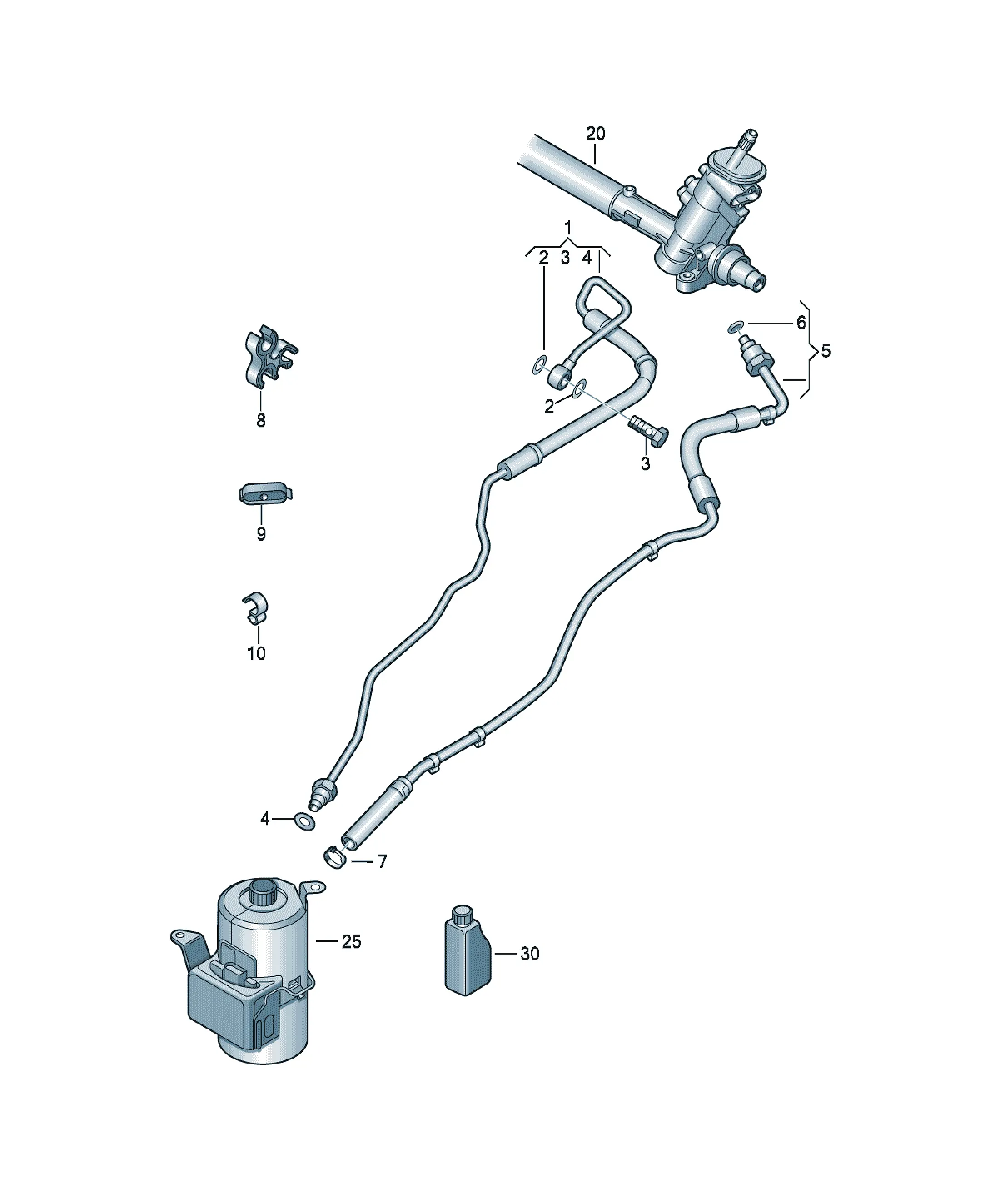

Assembly diagrams

2 diagrams

22 parts

6R1423893H Offers

[Name] [QTY]
Expansion hose from vane pump to steering gear 1
6R1423893J Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
6R2423893E Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear rhd 1
6R1423893H Offers

[Name] [Note] [QTY]
Expansion hose from vane pump to steering gear lhd 1
6R0423951 Offers

[Name] [QTY]
Bracket 1
6Q0423951 Offers

[Name] [QTY]
Bracket 1
N0138495 Offers

[Name] [Note] [QTY]
seal ring A14X20 X
[Name] [Note]
Steering gear
see illustration: 423-040
[Name] [Note]
Hydraulic pump
see illustration: 423-045
8E0422529 Offers

[Name] [QTY]
Non-return valve 1
G004000M8 Offers

[Name] [Note] [QTY]
Hydraulic fluid 60ltr. X
G004000M2 Offers

[Name] [Note] [QTY]
Hydraulic fluid 1.0 Ltr. X
G004000M7 Offers

[Name] [Note] [QTY]
Hydraulic fluid 30ltr. X
N90954601 Offers

[Name] [Note] [QTY]
O-ring 5,7X1,78 X
6R1423891H Offers

[Name] [Note] [QTY]
Return hose lhd 1
6R1423891K Offers

[Name] [Note] [QTY]
Return hose lhd 1
6R2423891G Offers

[Name] [Note] [QTY]
Return hose rhd 1
6R2423891E Offers

[Name] [Note] [QTY]
Return hose rhd 1
N90954601 Offers

[Name] [Note] [QTY]
O-ring 5,7X1,78 X
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 X
6Q2423939A Offers

[Name] [Note] [QTY]
Anti-twist device rhd 1
6Q0423843B Offers

[Name] [QTY]
Bracket 1
