Front fender and wheel arch

Fender

Assembly diagrams

5 diagrams

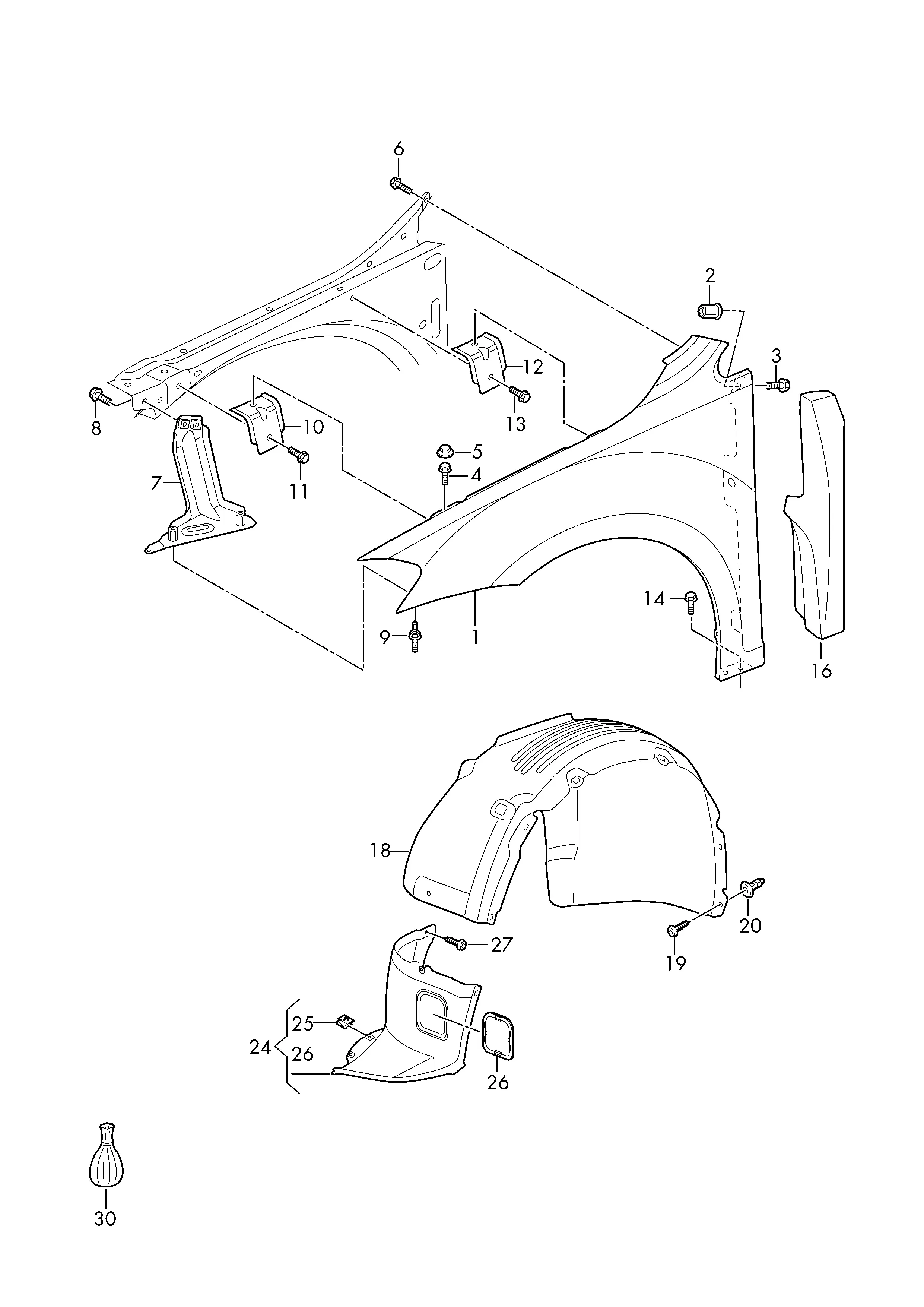

Fender diagram

Parts

21 parts

Front left fender
5G0821105A Offers

× 1
Front right fender
5G0821106A Offers

× 1
Заклёпка с внутренней резьбой
N90817302 Offers

× 1
Винт с шестигр.гол.(с шайбой)
N10009110 Offers

× 1
Колпачок
N91070601 Offers

× 1
Винт с шестигр.гол.(с шайбой)
N10671701 Offers

× 1
Fender strut
5G0821135B Offers

× 1
Fender strut
5G0821136B Offers

× 1
Двойной винт с шестигр.
N91139001 Offers

× 1
Fender mounting bracket
5G0809561 Offers

× 1
Fender mounting bracket
5G0809471 Offers

× 1
Шумоизоляция крыла см. панель иллюстр., поз.:
× 1
Front wheel arch liner left
5G0805969G Offers

× 1
Front wheel arch liner right
5G0805970G Offers

× 1
Винт самонарез. с внутр. TORX
N90974701 Offers

× 1
Распорная вставка
N90833801 Offers

× 1
Front wheel arch liner left
5G0805911AA Offers

× 1
Front wheel arch liner left
5G0805911AK Offers

× 1
Front wheel arch liner right
5G0805912H Offers

× 1
Пластинчатая гайка
N90959101 Offers

× 1
Cover
5G0805413C Offers

× 1
