Longitudinal and cross beams

Rear cross panel

Assembly diagrams

5 diagrams

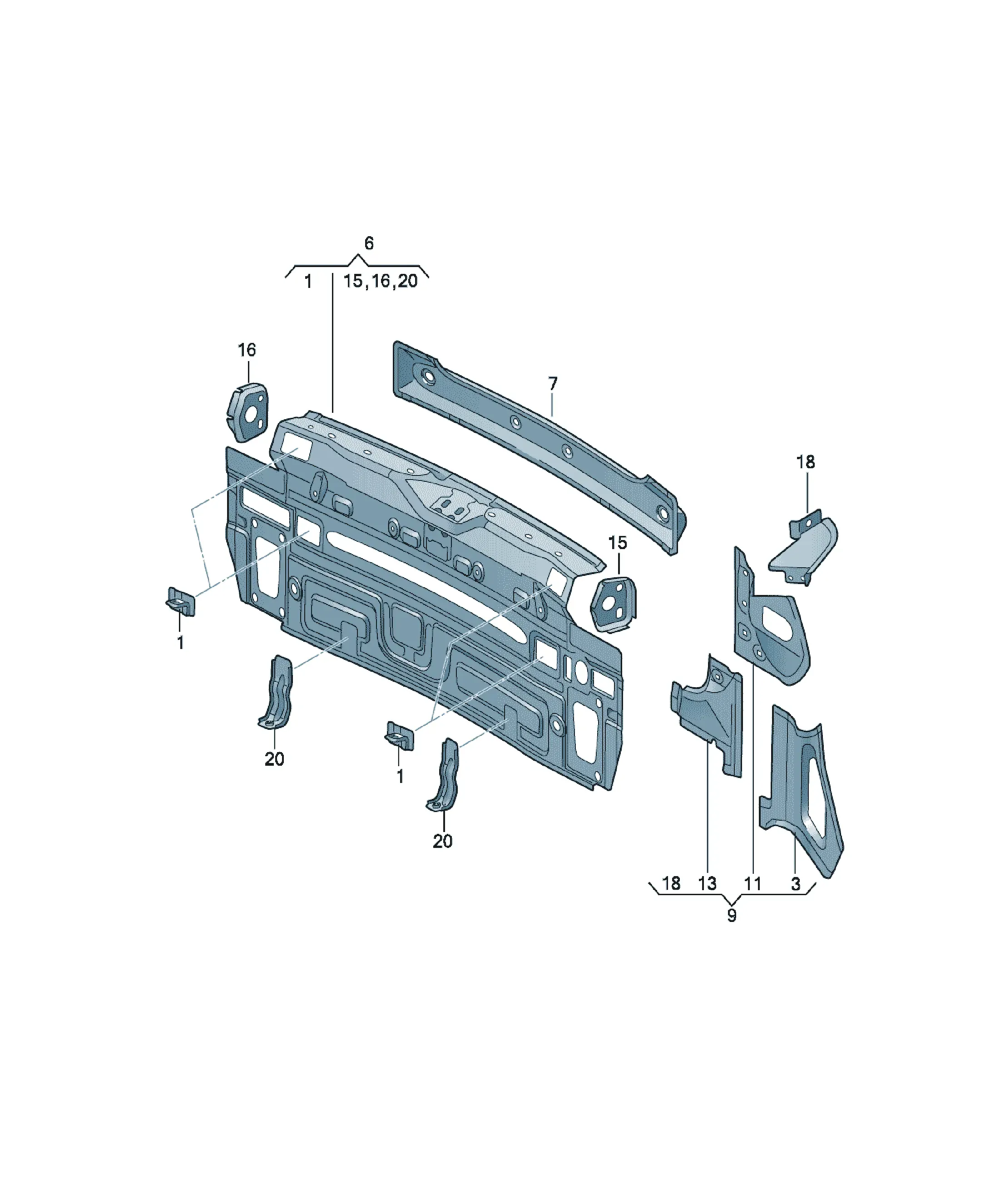

Rear cross panel diagram

Parts

16 parts

1J0804299 Offers

[Name] [QTY]
Lashing eye X
5N0813328 Offers

[Name] [Note] [QTY]
Mounting for tail light right 1
5N0813327 Offers

[Name] [Note] [QTY]
Mounting for tail light left 1
5N0813391 Offers

[Name] [Note] [QTY]
Connecting plate left 1
5N0813392 Offers

[Name] [Note] [QTY]
Connecting plate right 1
5N0813439 Offers

[Name] [Note] [QTY]
filler plate left 1
5N0813440 Offers

[Name] [Note] [QTY]
filler plate right 1
5N0813544 Offers

[Name] [Note] [QTY]
Connecting plate right 1
5N0813543 Offers

[Name] [Note] [QTY]
Connecting plate left 1
5N0813743 Offers

[Name] [QTY]
Retainer for bumper 2
5N0809416 Offers

[Name] [Note] [QTY]
Cross panel right 1
5N0809415 Offers

[Name] [Note] [QTY]
Cross panel left 1
5N0813301 Offers

[Name] [Note] [QTY]
Cross panel rear 1
5N0813309 Offers

[Name] [Note] [QTY]
end cross member rear 1
5N0813319 Offers

[Name] [Note] [QTY]
Mounting for tail light left 1
5N0813320 Offers

[Name] [Note] [QTY]
Mounting for tail light right 1
