Mounting parts

Engine and transmission mounting parts

Assembly diagrams

10 diagrams

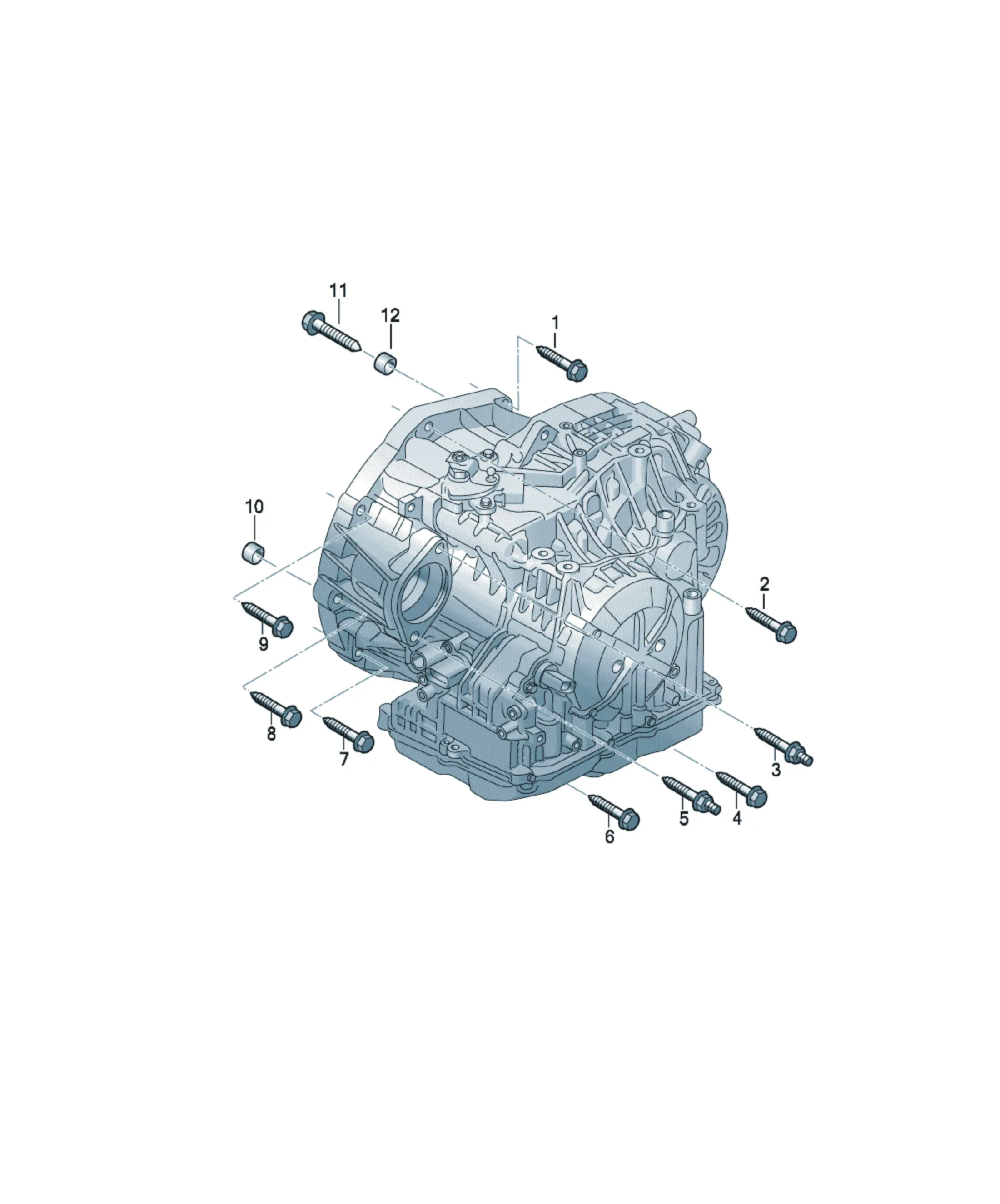

Engine and transmission mounting parts diagram

Parts

12 parts

N10721501 Offers

[Name] [Note] [QTY]
multi-point socket head bolt with collar M12X50 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 2
N91060202 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X65 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 2
N10721501 Offers

[Name] [Note] [QTY]
multi-point socket head bolt with collar M12X50 1
N90967801 Offers

[Name] [Note] [QTY]
double stud with hexagon drive M12X55/M8X16 1
for starter
N10711401 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X50 1
N90967801 Offers

[Name] [Note] [QTY]
double stud with hexagon drive M12X55/M8X16 1
for starter
N10711401 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X50 1
N10623701 Offers

[Name] [Note] [QTY]
Hex collared bolt M10X65 1
N10721501 Offers

[Name] [Note] [QTY]
multi-point socket head bolt with collar M12X50 1
M8X16
N10721501 Offers

[Name] [Note] [QTY]
multi-point socket head bolt with collar M12X50 1
