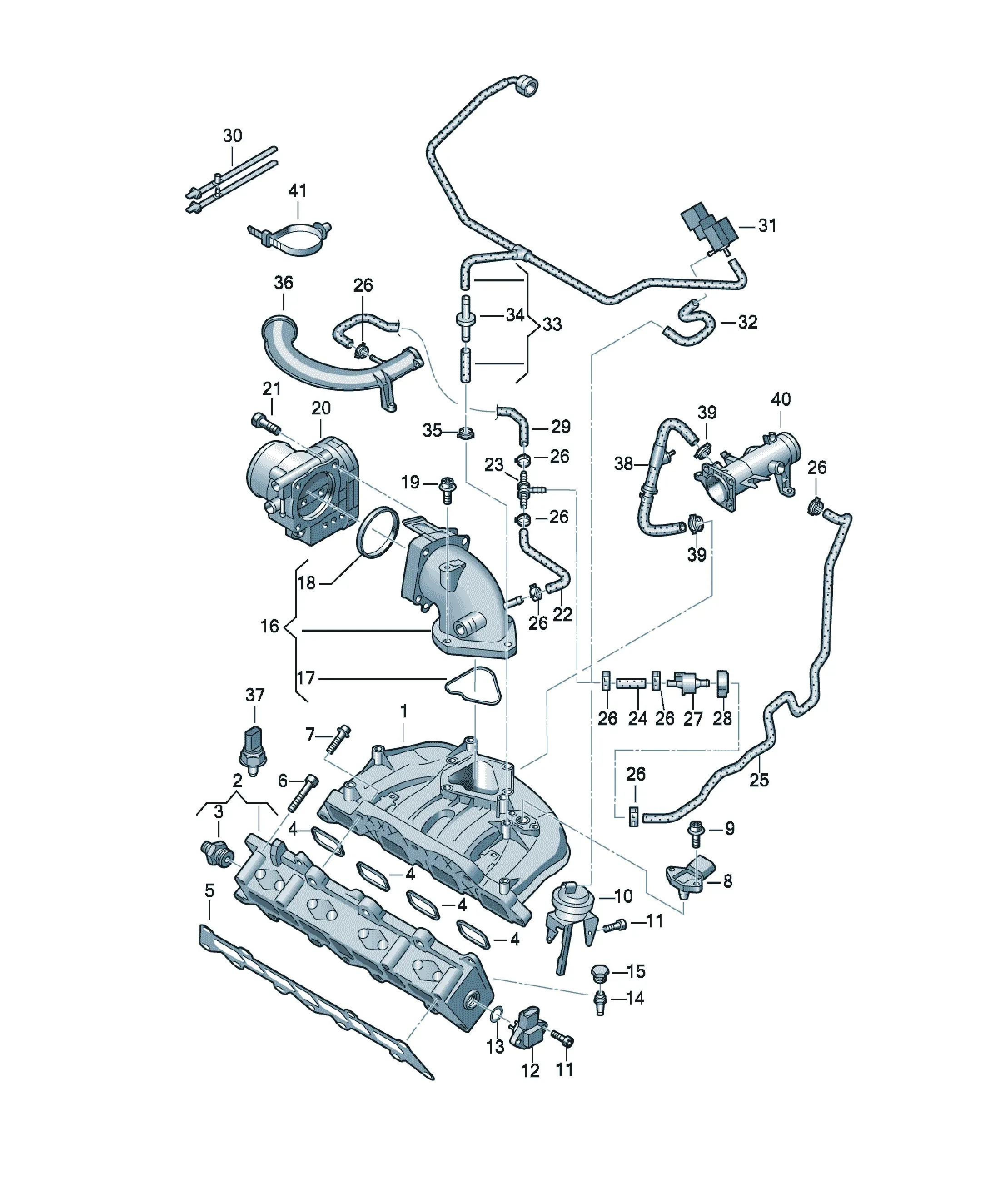

Intake manifold

[Name] [QTY]

intake manifold - upper part 1

[Name] [QTY]

Vacuum unit 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M4X12 5

[Name] [Note] [QTY]

Potentiometer G336 1

Replacements: 03C907386D

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

seal ring 25X4 1

[Name] [QTY]

Pressure relief valve 1

[Name] [Note] [QTY]

sealing plug M16X1 1

[Name] [QTY]

Intake manifold 1

[Name] [QTY]

Seal 4

[Name] [Note] [QTY]

Seal 65,3X2,15X5,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt 6X25 4

[Name] [Note] [QTY]

intake manifold - lower part 1

additionally to be used items: 14

[Name] [QTY]

Throttle valve control element 1

Replacements: 03C133062AA

mating connector

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X45 4

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Non-return valve 1

Replacements: 03C201542B

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Connecting hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Thrust ring 1

[Name] [QTY]

Connecting hose 1

[Name] [Note] [QTY]

sealing plug M20X1,5 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

vacuum hoses with connecting parts 1

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

Ear crimp hose clamp 1

[Name] [Note]

pressure pipe

see illustration, item: 129-015,21

[Name] [Note] [QTY]

Pressure sensor G247 1

Replacements: 06J906054B

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Seal 4

[Name] [Note]

intake manifold

see illustration, item: 129-015,8

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

[Name] [QTY]

Seal 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X60 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X75 3

[Name] [Note] [QTY]

Oval head locating bolt with multi-point socket head M8X35 6

[Name] [Note] [QTY]

Pressure sensor G71 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin VW 1

optional: X

8K0973704 Flat contact housing with contact locking mechanism 4 pin AUDI 1

black

[Name] [Note] [QTY]

panel screw 5X22 2
