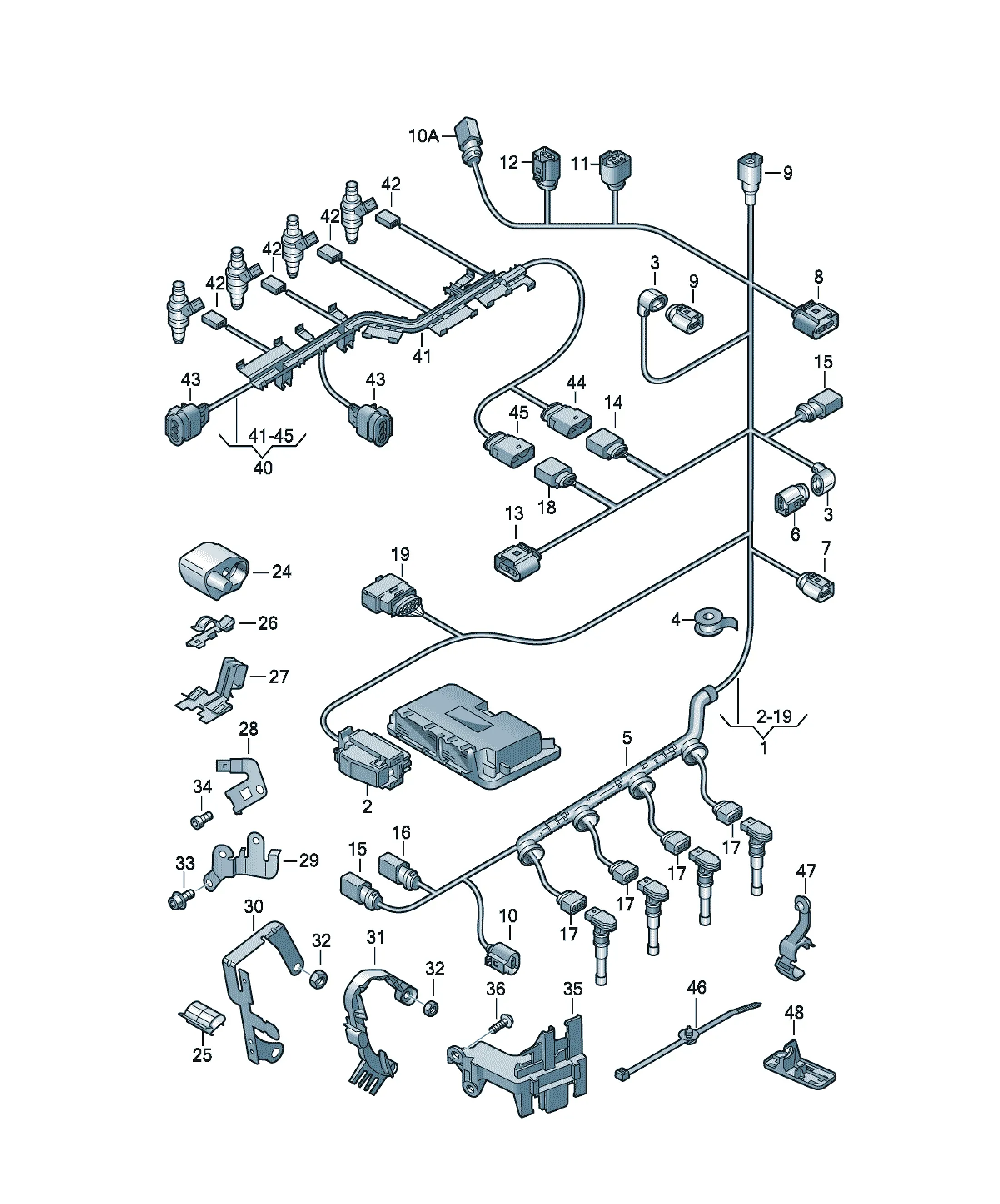

Engine wiring harness

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name] [QTY]

Wiring set for engine 1

[Name] [Model info] [QTY]

Wiring set for engine automatic 1

[Name] [QTY]

Wiring set for engine 1

[Name] [Model info] [QTY]

Wiring set for engine automatic 1

[Name] [Note] [QTY]

Flat contact housing 2 pin 1

Activated charcoal container with valve black

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

camshaft adjuster unit black

mating connector

5Q0973802 flat connector housing 2 pin 1

black

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

black

Throttle valve positioner

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

(Copper wires galvanised)

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 2

black

Temperature sensor

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

black

Knock sensor

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Coupling element black

wiring harness for injectors

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin X

black

Solenoid valve 1

Solenoid valve 1

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

by-pass air cut-off valve

mating connector

1J0973822A Flat connector housing with contact locking mechanism 2 pin 1

dark brown

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 4

black

ignition coil with spark plug connector

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Coupling element black

wiring harness for injectors

mating connector

8D0973834 Flat contact housing 8 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 14 pin 1

Coupling element

Central wiring set

mating connector

1J0973737 Flat contact housing with contact locking mechanism 14 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 E

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

counterpart to: 000 979 019 EA

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 60-pin 1

Control unit

Possible single wire:

000979030E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 0,63

000979166E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979166EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,75

flat contact with retaining lug 0,63

000979246E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

7L0971904 Sealing pin 1,5 X

7L0971904A Sealing pin 0,63 X

8K0971904 Sealing pin 0,63 X

[Name] [QTY]

Grommet 1

Starter

[Name] [QTY]

Cable holder 1

Starter

[Name] [QTY]

Retaining clip 1

Line

Lambda probe

[Name] [QTY]

Retaining clip 1

Line

Lambda probe

[Name] [QTY]

Bracket 1

Wiring set for three-phase alternator

Replacements: 06J971858G

[Name] [QTY]

Bracket 1

[Name] [QTY]

Protective cap 1

Flat contact housing

[Name] [Note] [QTY]

Bracket protective cover 1 pin 1

[Name] [QTY]

Retaining plate 1

Cable guide

Wiring set for starter and alternator with earth lead

[Name] [QTY]

Retaining plate 1

Starter

[Name] [Note] [QTY]

Hexagon nut M8 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

[Name] [Note] [QTY]

Hex socket head locating bolt M10X12 1

[Name] [QTY]

Bracket 1

flat connector housing

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

Replacements: N 10721401

[Name] [Note] [QTY]

sealing tape 220X60X4 1

[Name] [QTY]

Wire set 1

Injection valve

Replacements: 06J971082D

[Name] [QTY]

Cable guide 1

wiring harness for injectors

[Name] [Note] [QTY]

Flat contact housing 2 pin 4

Injection valve yellow

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin X

impulse sender 1

Camshaft

Potentiometer 1

Possible single wire:

000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 0,5QMM

flat contact with retaining lug 1,2MM

000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 1,0QMM

flat contact with retaining lug 1,2MM

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 6 pin 1

black

Coupling element

Wiring set for engine

mating connector

1J0973713 Flat contact housing 6 pin 1

black

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Coupling element black

Wiring set for engine

mating connector

8D0973734 Flat contact housing 8 pin 1

black

Possible single wire:

000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 021 E

000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 2,8

000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

Flat male connector with detent lug 2,8

[Name] [Note] [Model info] [QTY]

Cable ties with bracket 4,5X200 CCZC,CCZA 1

toothed quadrant outer

impulse sender

Camshaft

[Name] [QTY]

Cable holder 1

Lambda probe

Replacements: 5Q0971848B

[Name] [Note] [QTY]

bracket for connector housing left 1

Lambda probe

[Name] [QTY]

Cable guide 1

ignition coil with spark plug connector

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black/violet

impulse sender

Crankshaft

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X

-40C/+105C

flat contact 2,8

000979237EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact 2,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

black/blue

high pressure pump

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 3 pin 1

black

High-pressure sensor

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 1 pin 1

black

Oil pressure sender

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5
