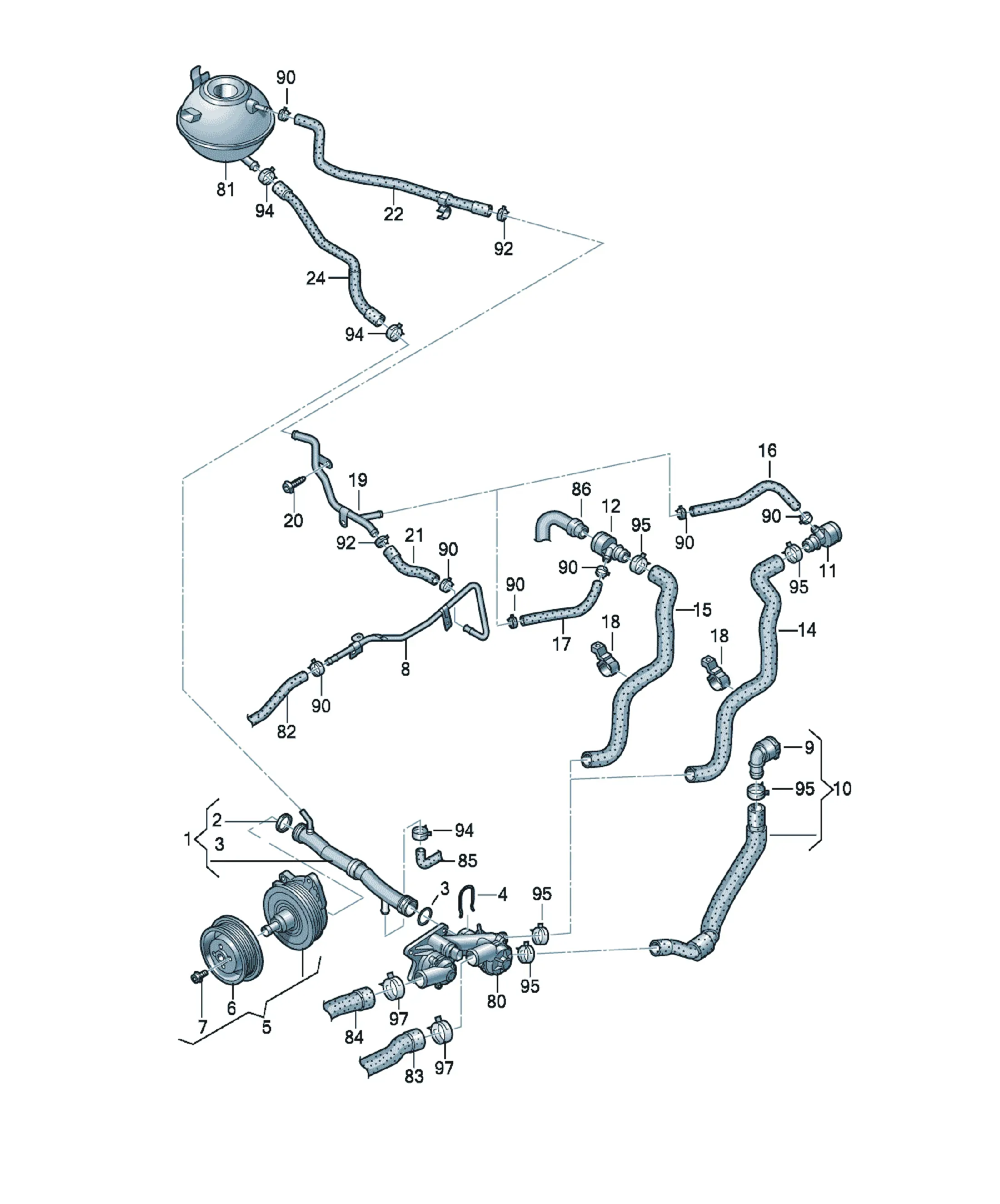

Cooling system

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

[Name] [QTY]

Quick acting coupling 1

for vehicles with auxiliary heater

D - 02.11.2009>>

[Name] [QTY]

Quick acting coupling 1

for vehicles with auxiliary heater

D >> - 01.11.2009

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

[Name] [Model info] [QTY]

Coolant hose PR:9M0 1

Replacements: 5N0121157H

[Name] [Model info] [QTY]

Coolant hose PR:9M5,9M9 1

for vehicles with auxiliary heater

D - 02.11.2009>>

[Name] [Model info] [QTY]

Coolant hose PR:9M5,9M9 1

for vehicles with auxiliary heater

D >> - 01.11.2009

Replacements: 5N0121157J; 1K0122291R

[Name] [Model info] [QTY]

Coolant hose PR:9M0 1

[Name] [Model info] [QTY]

Coolant hose PR:9M5,9M9 1

for vehicles with auxiliary heater

Replacements: 5N0122447P

[Name] [Note] [QTY]

Hose bracket 25MM 1

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

Replacements: N 10721401

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

(Expansion tank > coolant pipe)

[Name] [QTY]

O-ring 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant pump with glued in sealing ring 1

Replacements: 03C121004J

[Name] [QTY]

Coolant pump with glued in sealing ring 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name]

Not for this model

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 4

toothed belt pulley

[Name] [Note] [QTY]

round hd. screw M6X22 3

(Coolant p. > cylinder head)

[Name] [Model info] [QTY]

Coolant pipe

F 5N-9-000 001>>*5N-9-060 000* PR:G0K 1

[Name] [Model info] [QTY]

Coolant pipe

F 5N-9-000 001>>*5N-9-060 000* PR:G0L 1

[Name] [QTY]

Coolant pipe

F 5N-9-060 001>>* 1

[Name] [Note]

Coolant regulator housing

see illustration, item: 121-080,1

[Name] [Note]

Reservoir

see illustration, item: 121-080,20

[Name] [Note]

Coolant hose

see illustration, item: 121-014,11

[Name] [Note]

Coolant hose

see illustration, item: 121-014,11

[Name] [Note]

Coolant hose

see illustration, item: 121-014,11

[Name] [Note]

Coolant hose

see illustration, item: 121-014,19

[Name] [Note]

Coolant pipe

see illustration, item: 819-070,10

for vehicles with auxiliary heater

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
