Engine cover and engine bay

Intake manifold cover

Assembly diagrams

5 diagrams

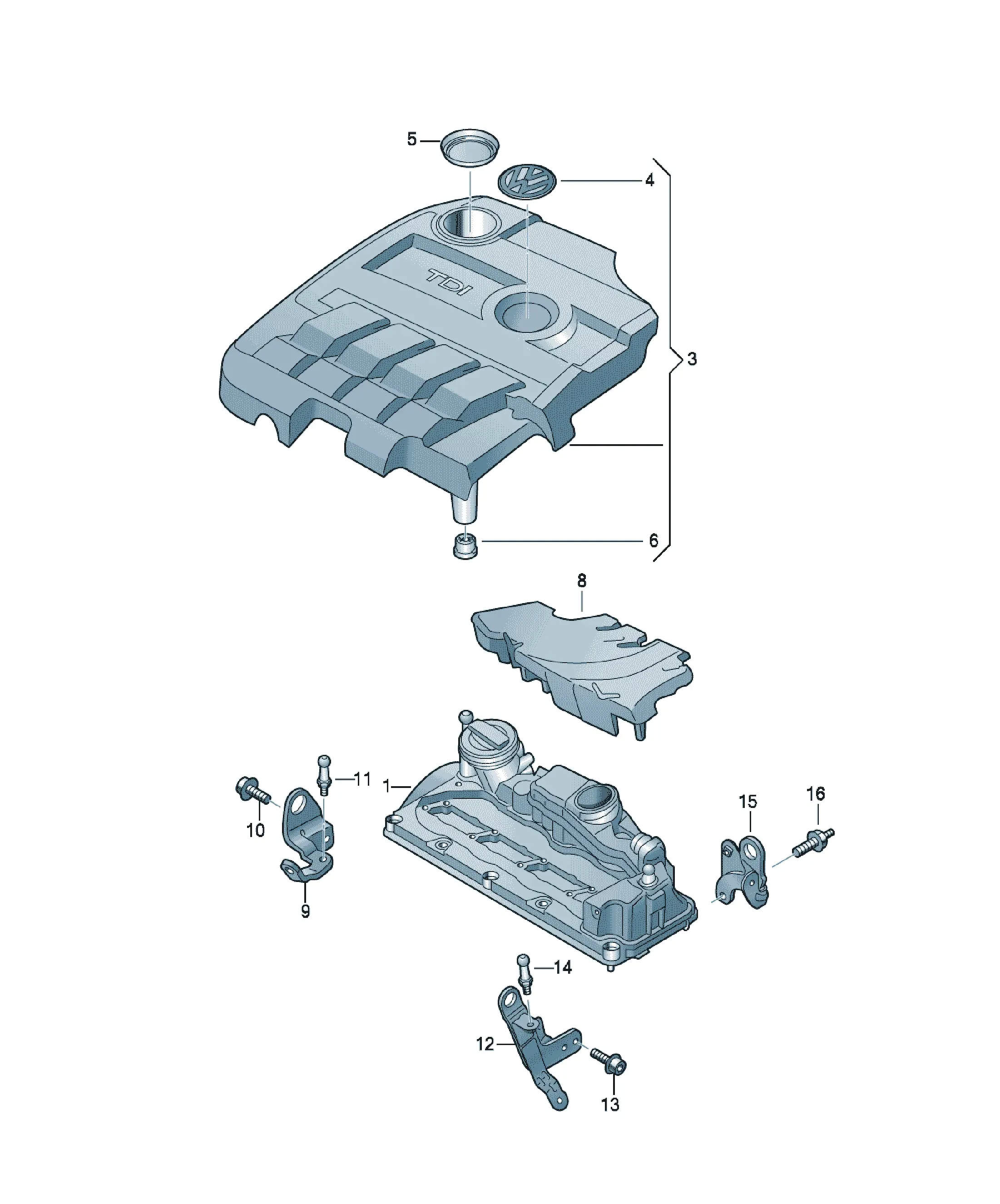

Intake manifold cover diagram

Parts

14 parts

[Name] [Note]
cylinder head cover
see illustration: 103-060
N10677501 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X22 2
03L103164 Offers

[Name] [QTY]
ball head 1
03L103369C Offers

[Name] [QTY]
Bracket 1
Replacements: 03L103369S
N10677501 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X22 2
03L103164 Offers

[Name] [QTY]
ball head 1
03L103369B Offers

[Name] [QTY]
Retaining bracket 1
N90784702 Offers

[Name] [Note] [QTY]
double stud with hexagon drive M8X18/M6X16 1
03L103925AM Offers

[Name] [Note] [QTY]
cover for intake manifold 'VW' 'TDI' 1
06F103940 Offers

[Name] [QTY]
VW emblem 1
03L133287 Offers

[Name] [QTY]
seal ring 1
03L103184 Offers

[Name] [QTY]
ball socket 4
Replacements: 07C103226
03L103954 Offers

[Name] [QTY]
Damping 1
03L103390N Offers

[Name] [QTY]
Suspension lug 1
