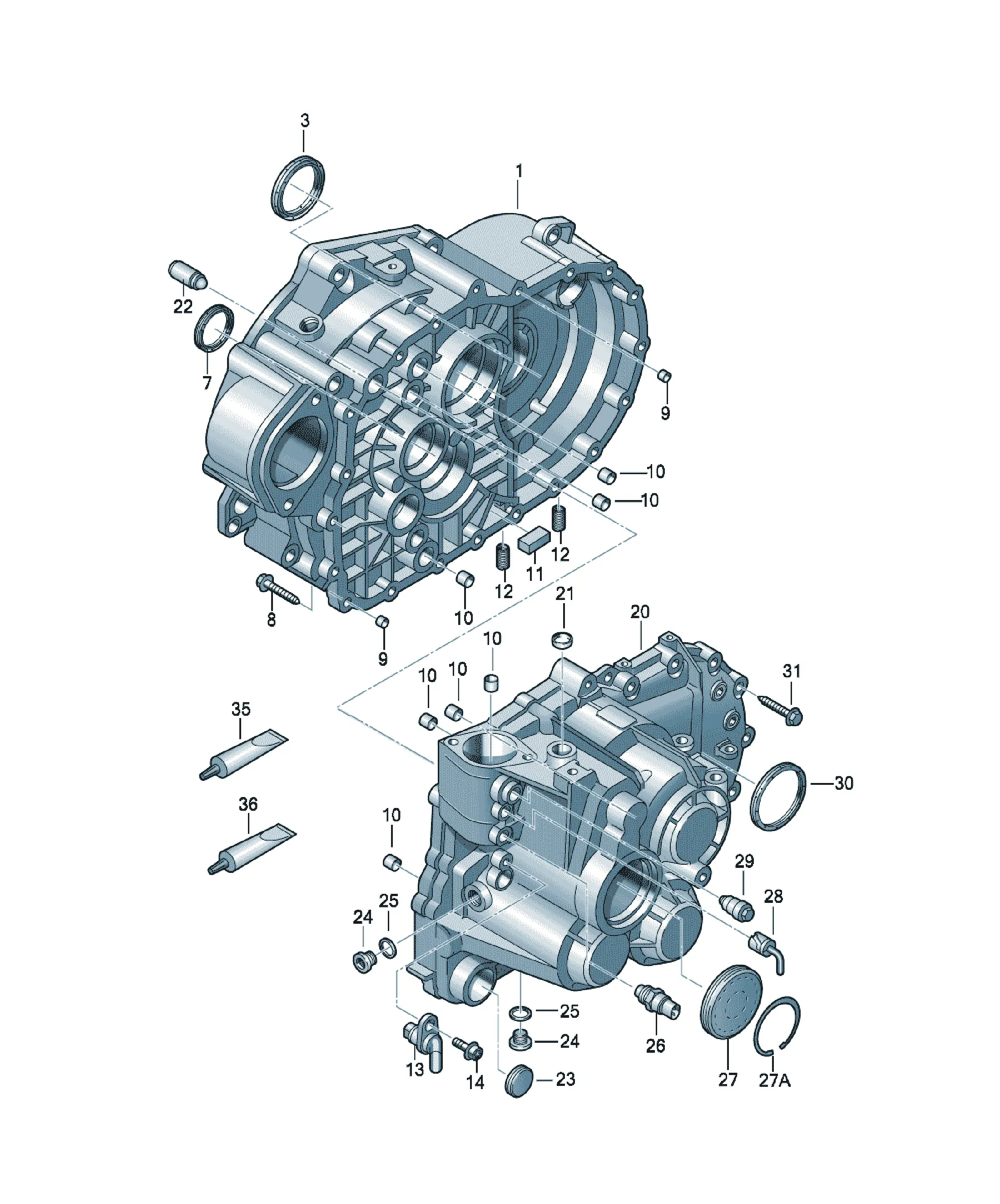

Gearbox housing

[Name] [Note] [Model info] [QTY]

clutch housing LQU 1

G >> 09 12 9

also use: 02Q 301 561 2

Accompanying details: 02Q301561

[Name] [Note] [Model info] [QTY]

clutch housing LQU 1

G 10 12 9>>

also use: 02Q 301 561 2

Accompanying details: 02Q301561

Replacements: 02Q301107AL

[Name] [Note] [Model info] [QTY]

clutch housing JBS,LHB 1

also use: 02Q 301 561 2

Accompanying details: 02Q301561

[Name] [Note] [Model info] [QTY]

clutch housing LXM 1

G >> 09 12 9

also use: 02Q 301 561 2

Accompanying details: 02Q301561

[Name] [Note] [Model info] [QTY]

clutch housing LXM 1

G 10 12 9>>

also use: 02Q 301 561 2

Accompanying details: 02Q301561

[Name] [QTY]

bush 7

[Name] [QTY]

Shaped magnet 1

[Name] [Note] [QTY]

threaded insert M10X25 2

Replacements: 02Q301561A

[Name] [Model info] [QTY]

Sender for gearbox neutral position LXM,LQU 1

Replacements: 02T906207D

mating connector

4H0973703A Flat contact housing 3 pin 1

brown

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X16 LXM,LQU 1

[Name] [Model info] [QTY]

Gear housing JBS,LHB 1

G >> 09 12 9

Replacements: 02Q301103J; 02T906207A; N 90898007

[Name] [Model info] [QTY]

Gear housing LXM,LQU 1

G 10 12 9>>

Replacements: 02Q301103AA

[Name] [Note] [Model info] [QTY]

Gear housing LXM,LQU 1

G >> 09 12 9

use if required: 02M 311 178 C

02Q 301 230 S

Accompanying details: 02M311178C; 02Q301230S

[Name] [Note] [QTY]

End cap 15X8 1

[Name] [Note]

retaining sleeve

see illustration, item: 311-080,10

[Name] [Note] [QTY]

End cap 45 1

[Name] [Note] [QTY]

sealing plug M22X1,5 2

[Name]

seal ring

Not for this model

[Name] [QTY]

switch for reversing light 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

End cap 84,5 1

[Name] [Note] [QTY]

Securing ring 90,5X2 1

[Name] [Note]

detent pin

see illustration, item: 311-080,12

[Name] [Note]

locking screw

see illustration, item: 311-080,11

[Name] [Note] [QTY]

seal ring 60X74,3X8 1

Replacements: 02M301189G

[Name] [Note] [QTY]

seal ring 60X74,3X8 1

Replacements: 02M301189G

[Name] [Note] [QTY]

Hexagon socket flat head bolt M8X55 7

G >> 09 12 9

[Name] [Note] [QTY]

Hexagon socket flat head bolt M9X55 7

G 10 12 9>>

Replacements: WHT005631B

[Name] [Note] [QTY]

Sealing compound paste 100G X

[Name] [Note] [QTY]

sealing grease for radial shaft oil seal 50G X

Replacements: G 055128A1

[Name] [Note] [QTY]

Shaft oil seal 28,3X42,28X7 1

see workshop manual gearbox

[Name] [Note] [QTY]

Hexagon socket flat head bolt M9X55 7

G 10 12 9>>

Replacements: WHT005631B

[Name] [Note] [QTY]

Hexagon socket flat head bolt M8X55 7

G >> 09 12 9

[Name] [Note] [QTY]

dowel sleeve 12X9,5 2

Slotted
