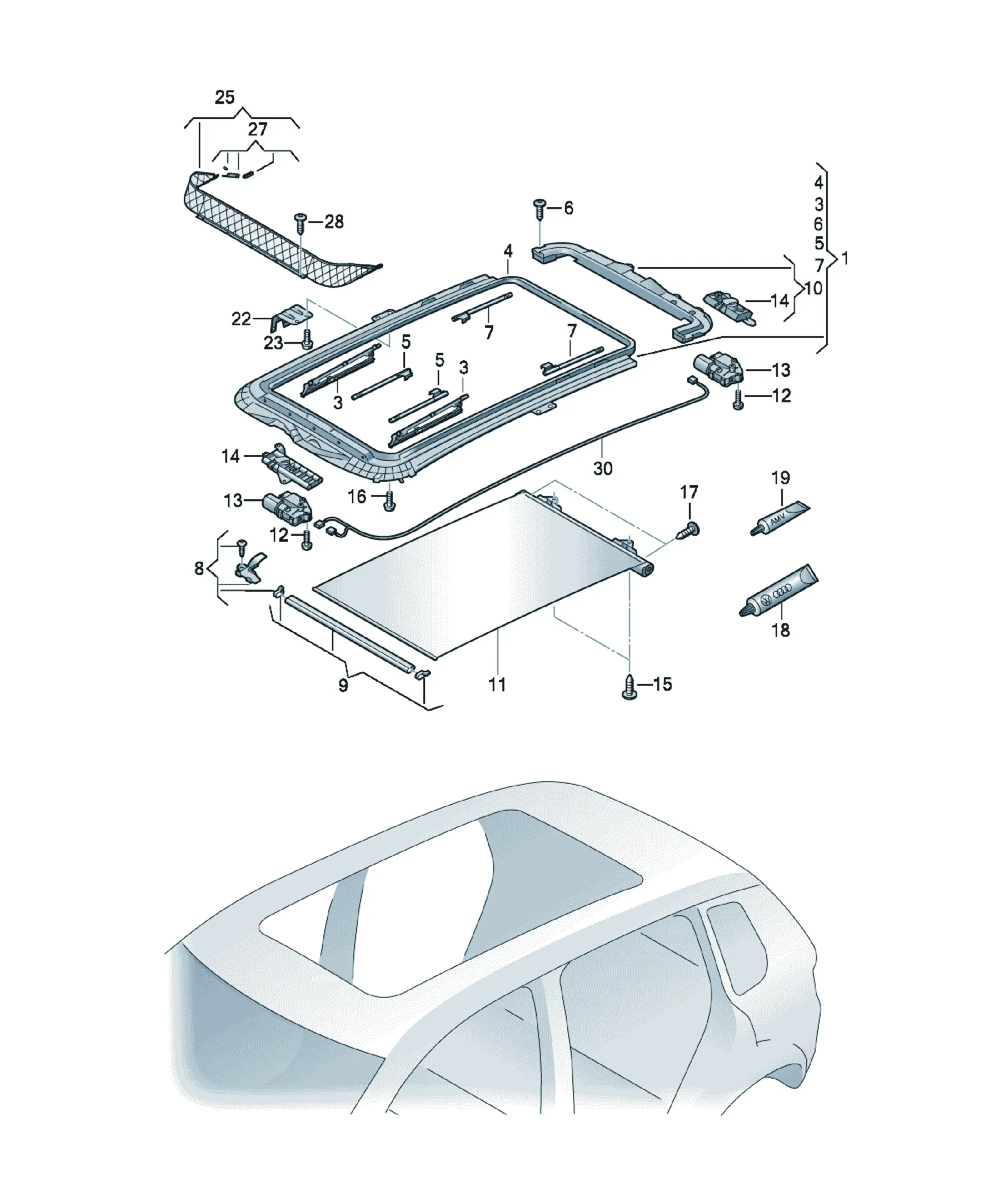

Panoramic sunroof

[Name] [QTY]

Frame with sliding tilt actuator 1

Panorama sunroof

Replacements: 5N0877049B

[Name] [Note] [QTY]

repair set rear 1

frame part

Replacements: 5N0898259A

repair set

Rear carrier 1

Cover left 1

Cover right 1

Connecting plate 1

Pipe 2

Flat head bolt with hexagon socket head, thread forming 8

[Name] [Note]

Corn silk beige -GF,GG,NT,YY

Replacements: 1K9877307B 7S0; 1K9898912B

[Name] [Note]

pearl grey -AK,AL,AP,GE,

GH,GJ,JD,JF,

JG,QR,TS,TT,

TW,18,25,26,

50,83

Replacements: 1K9877307B 6Z0; 1K9898912B

[Name] [QTY]

roller sunblind 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M5X18 3

[Name] [QTY]

Sliding roof motor 2

mating connector

8E0972126 Flat contact housing with contact locking mechanism 16 pin 1

black

[Name] [QTY]

1 set attachment parts 1

Sliding roof motor

repair set

Connecting plate front 1

Connecting plate rear 1

[Name] [QTY]

1 set securing bolts 1

roller sunblind

repair set

Hexagon socket flat head bolt M5X8 2

Hexagon socket oval head plastic bolt 5X12 15

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X16 18

[Name] [QTY]

1 set securing bolts 1

roller sunblind

repair set

Hexagon socket flat head bolt M5X8 2

Hexagon socket oval head plastic bolt 5X12 15

[Name] [Note] [QTY]

1-pack MS adhesive 310ML 1

Replacements: D 172091M2

[Name] [Note] [QTY]

Lithium lubricating grease 50ml 1

Replacements: G 060751A2

[Name] [Note] [Model info] [QTY]

Console right PR:3CX+5C0, 1

5C6

[Name] [Note] [Model info] [QTY]

Console left PR:5C1 1

[Name] [Note] [Model info] [QTY]

Console left PR:3CX+5C0, 1

5C6

[Name] [Note] [Model info] [QTY]

Console right PR:5C1 1

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X16 18

[Name] [QTY]

wind deflector 1

[Name]

Satin black

Replacements: 7N0877651A 9B9

[Name] [Note] [QTY]

1 set bearings wind deflector left a. right 1

also use: 4L0 898 671 A 1

Accompanying details: 4L0898671A

repair set

Bracket left 1

Bracket right 1

Cylinder pin 2

[Name] [Note] [QTY]

1 set securing clips left a. right 1

also use: 4L0 898 671 B 1

Accompanying details: 4L0898671B

repair set

securing clip 2

[Name] [Note] [QTY]

fillister hd. bolt 5X12 4

[Name] [Note] [QTY]

1 set sliding and tilting mechanisms front 1

Replacements: 1K9898738B

repair set

Tilt mechanism for panorama glass roof left front 1

Tilt mechanism for panorama glass roof right front 1

[Name]

Adapter cable loom

Panorama sunroof

Replacements: 3AF971648

[Name] [Note]

Seal

see illustration, item: 877-000,14

[Name] [Note] [QTY]

1 set cables front 1

Slide and tilt mechanism for panorama glass roof

repair set

Cable left front 1

Cable right front 1

[Name] [QTY]

1 set securing bolts 1

repair set

Hexagon socket flat head bolt M5X8 2

Hexagon socket oval head plastic bolt 5X12 15

[Name] [QTY]

1 set cables 1

roller sunblind

repair set

Cable left 1

roller sunblind

Cable right 1

roller sunblind

[Name] [QTY]

1 set glide pieces 1

roller sunblind

** See photo **

repair set

Cover left 1

Cover right 1

Glide piece left 1

Glide piece right 1

fillister hd. bolt 5X12 2

[Name] [QTY]

1 set roller braces with glides 1

roller sunblind

Replacements: 1K9898921A; 1K9898912A

repair set

1 set roller braces with glides 1

roller sunblind
