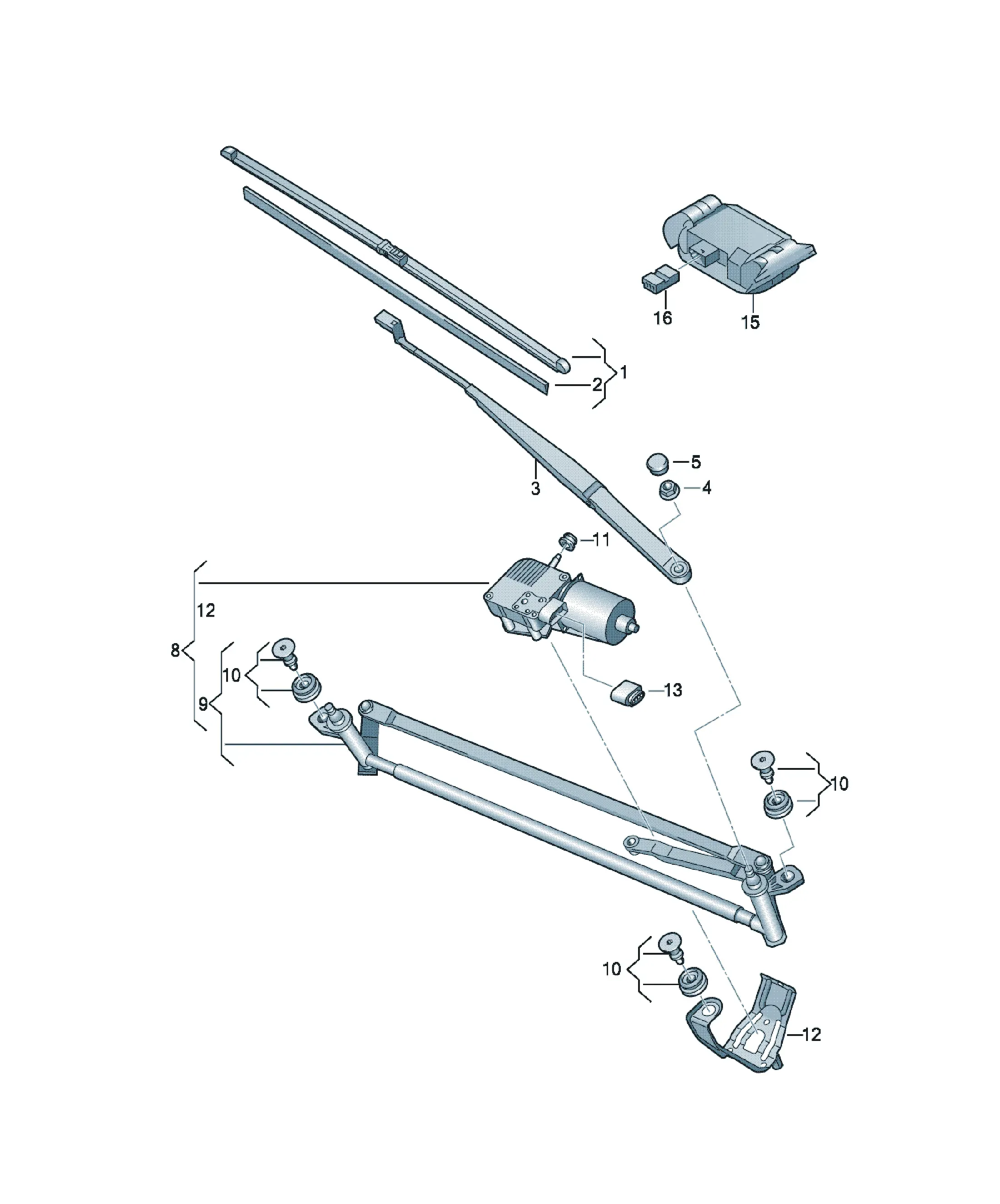

Windshield wiper

[Name] [Note] [QTY]

Aero wiper blade lhd 1

(drivers side) 600MM VALEO

Replacements: 3C1998002; ; 5N1998002

[Name] [Note] [QTY]

Aero wiper blade lhd 1

(passenger side) 530MM VALEO

Replacements: 5N1998002

[Name] [Note] [QTY]

1 set aerodynamic wiper blades lhd 1

(driver and passenger side) VALEO

repair set

5N1955425C Aero wiper blade lhd 1

(drivers side) 600MM VALEO

5N1955426C Aero wiper blade lhd 1

(passenger side) 530MM VALEO

5N1955425D Aero wiper blade lhd 1

(drivers side) 600MM VALEO

[Name] [Note] [QTY]

1 set aero wiper blades 'ECO' lhd 1

VALEO

Economy

(driver and passenger side)

[Name] [Note] [QTY]

Aero wiper blade rhd 1

(drivers side) 600MM VALEO

Replacements: 5N2998002

[Name] [Note] [QTY]

Aero wiper blade rhd 1

(passenger side) 530MM VALEO

Replacements: 5N2998002

[Name] [Note] [QTY]

1 set aerodynamic wiper blades rhd 1

(driver and passenger side) VALEO

repair set

5N2955426C Aero wiper blade rhd 1

(drivers side) 600MM VALEO

5N2955425C Aero wiper blade rhd 1

(passenger side) 530MM VALEO

5N2955426D Aero wiper blade rhd 1

(drivers side) 600MM VALEO

[Name] [QTY]

1 set attachment parts 1

repair set

1J0955276B Cap 2

1K0955754A Grommet 2

1J0955456 Oval hexagon socket head bolt 2

[Name] [QTY]

Grommet 1

[Name]

No replacement part

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

mating connector

1J0973824 Flat contact housing 4 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

[Name] [Note] [QTY]

Repair kit for rain sensor TRW 1

Housing upper part with silicone pad

D - 26.05.2009>>

repair set

Housing upper part with silicone pad 1

housing lower part 1

fitting instructions 1

[Name]

Repair kit for rain sensor

Not for this model

D >> - 25.05.2009

[Name] [Note] [QTY]

Rain sensor TRW 1

Potential individual parts

1K0998559 Repair kit for rain sensor TRW 1

Housing upper part with silicone pad

mating connector

1C0973119B Flat contact housing 3 pin 1

black

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

mating connector

1K0973333 Flat contact housing with contact locking mechanism 3 pin 1

black

3D0973332 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name]

Not for this model

[Name] [Note] [QTY]

Aero wiper arm rhd 1

(passenger side)

[Name] [Note] [QTY]

Aero wiper arm lhd 1

(drivers side)

[Name] [Note] [QTY]

Aero wiper arm lhd 1

(passenger side)

[Name] [Note] [QTY]

Aero wiper arm rhd 1

(drivers side)

[Name] [Note] [QTY]

Hexagon collar nut M8 2

[Name] [QTY]

Cap 2

Replacements: 1J0955205A 01C

[Name]

Satin black

Replacements: 5N0955205 9B9

[Name] [Note] [QTY]

Window wiper mounting with wiper motor lhd 1

D >> - 29.04.2011

Replacements: 5N1955023C

mating connector

1J0973724 Flat contact housing 4 pin X

black

8K0973724 Flat contact housing 4 pin X

black

[Name] [Note] [QTY]

Window wiper mounting with wiper motor rhd 1

D - 30.04.2011>>

[Name] [Note] [QTY]

Window wiper mounting with wiper motor rhd 1

D >> - 29.04.2011

Replacements: 5N2955023C

mating connector

1J0973724 Flat contact housing 4 pin X

black

8K0973724 Flat contact housing 4 pin X

black

[Name] [Note] [QTY]

Window wiper mounting with wiper motor lhd 1

D - 30.04.2011>>

Replacements: 5N1955023E

[Name]

No replacement part
