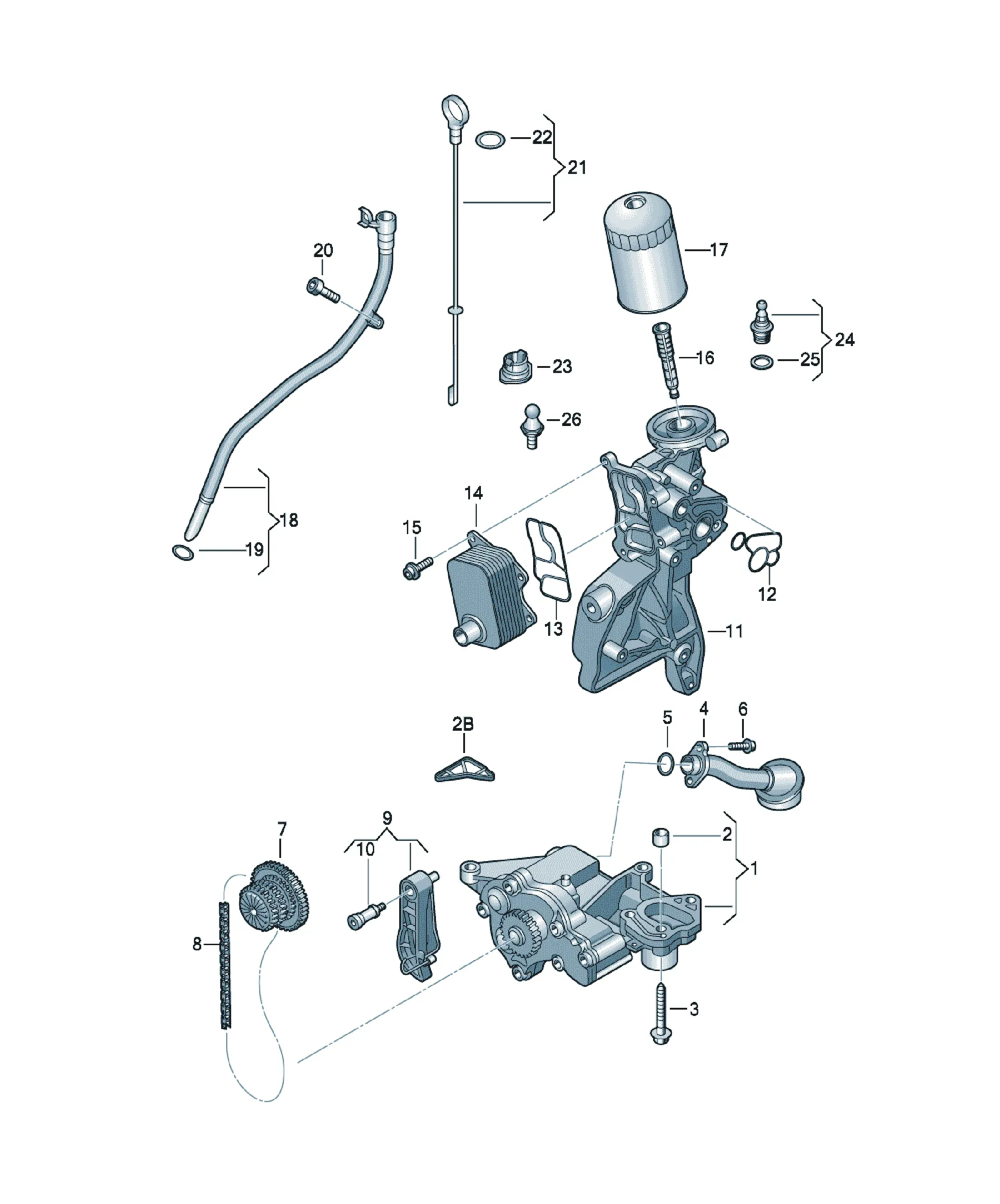

Oil pump

[Name] [Model info] [QTY]

oil pump CAWA,CAWB, 1

CCTA

Replacements: 06J115105AG

[Name] [Model info] [QTY]

oil pump CCZA,CCZC 1

Replacements: 06H115105AK; 06H115175B

[Name] [Note] [QTY]

Hexagon socket head bolt M6 1

[Name] [Note]

Bracket

see illustration, item: 903-030,1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Oil cooler 1

Replacements: 06J117021P

[Name] [Note] [QTY]

Screw with int. serrations M8X20 4

[Name] [QTY]

Pipe 1

[Name] [QTY]

oil filter 1

Replacements: 06J115403J

[Name] [QTY]

tube for oil dipstick 1

Replacements: 06J115610L

[Name] [Note] [QTY]

O-ring 11,8X2,5 1

[Name] [Note] [Model info] [QTY]

dowel sleeve 8,2X6,5 CAWA,CAWB, 2

CCTA

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 1

[Name] [QTY]

Oil dipstick 1

Replacements: 06J115611L

[Name] [Note] [QTY]

O-ring 9,5X2 1

[Name] [Note]

Bungs

see illustration, item: 103-050,33

[Name] [Note]

Bungs

see illustration, item: 103-050,34

[Name] [Note]

O-ring

see illustration, item: 103-050,35

[Name] [Note]

Ball pin

see illustration, item: 103-050,36

[Name] [Note] [Model info] [QTY]

oil strainer CCZA,CCZC X

only to be used for: 06H 115 105 AK

[Name] [Model info]

oil strainer CAWA,CAWB,

Not for this model CCTA

[Name] [Note] [Model info] [QTY]

oil strainer CCZA,CCZC X

only to be used for: 06H 115 105 AQ

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X30 CAWA,CAWB, 4

CCTA

[Name] [Note] [Model info] [QTY]

Hexagon socket head bolt M8X40 CCZA,CCZC 2

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M8X65 CCZA,CCZC 1

[Name] [Model info] [QTY]

suction line CCZA,CCZC 1

[Name] [Model info] [QTY]

suction line CAWA,CAWB, 1

CCTA

[Name] [Note] [QTY]

seal ring 20X3,15 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X20 1

[Name] [Note]

Chain sprocket

see illustration, item: 105-015,4

[Name] [Model info] [QTY]

Drive chain CCZA,CCZC 1

Replacements: 06K115225C

[Name] [Model info] [QTY]

Drive chain CAWA,CAWB, 1

CCTA

Replacements: 06K115225C

[Name] [QTY]

chain tensioner 1
