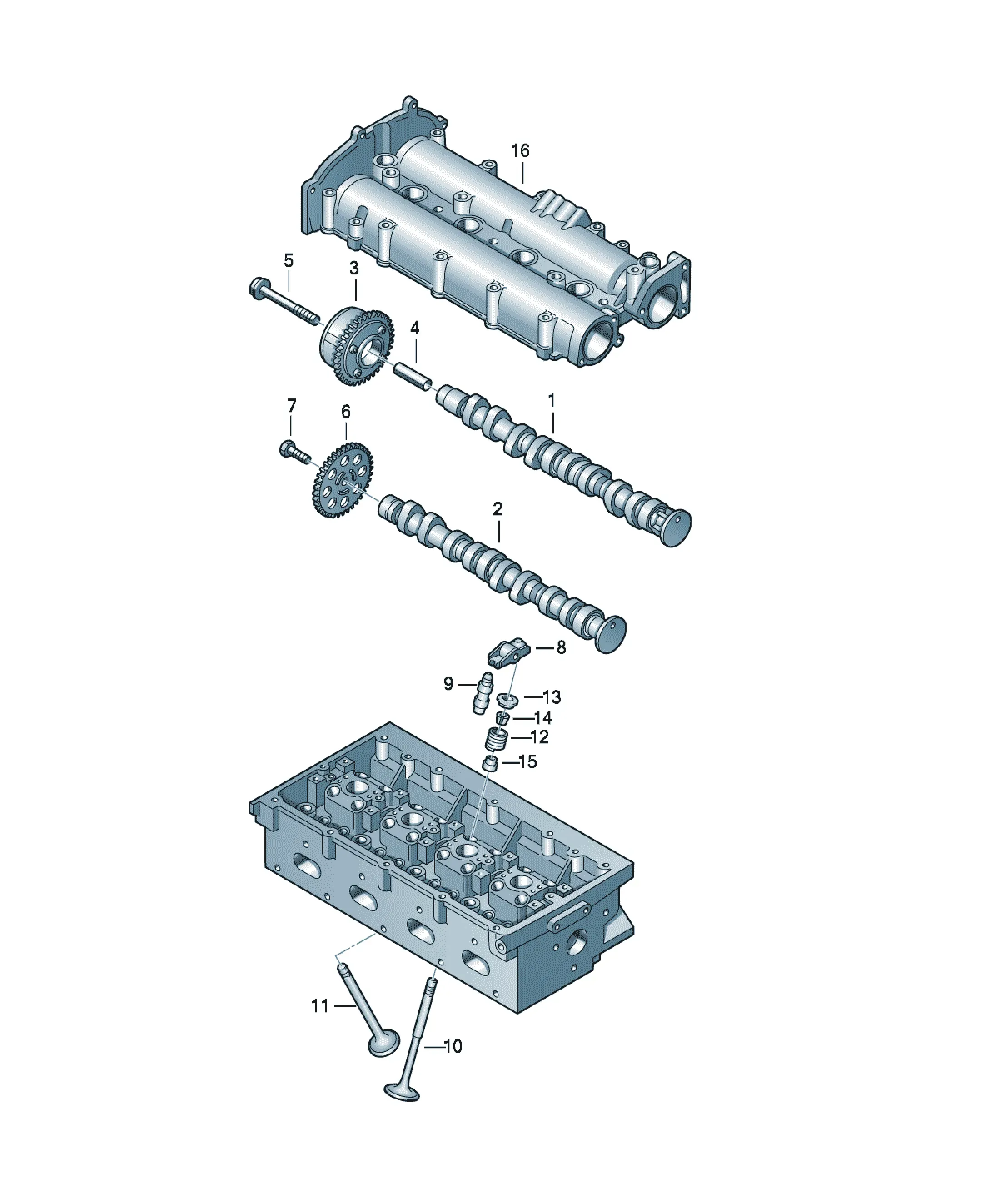

Camshaft and valve train

[Name] [Note] [Model info] [QTY]

Camshaft Inlet

D >> - 02.11.2008* 4motion 1

[Name] [Note] [Model info] [QTY]

Camshaft Inlet

D >> - 02.11.2008* fr.wheel drv 1

[Name] [Note] [QTY]

Camshaft Inlet

D - 03.11.2009>>* 1

[Name] [Note] [QTY]

Camshaft Inlet 1

[Name] [Note] [QTY]

Inlet valve 100,6 8

[Name] [Note] [QTY]

exhaust valve 100,9 8

[Name] [Note] [QTY]

exhaust valve 100,6 8

[Name] [Model info] [QTY]

Valve spring BWK 16

D >> - 31.05.2008*

[Name] [Model info] [QTY]

Valve spring BWK 8

D - 01.06.2008>>*

[Name] [Model info] [QTY]

Valve spring BWK 8

D - 01.06.2008>>*

[Name] [Note] [Model info] [QTY]

Valve spring Inlet CAVA 8

[Name] [Note] [Model info] [QTY]

Valve spring Outlet CAVA 8

[Name] [QTY]

Valve spring 16

[Name] [Note] [QTY]

spring disc upper 16

[Name] [QTY]

cotter, split 32

[Name] [Note] [QTY]

Valve stem seal 6MM 16

[Name] [Note]

cylinder head cover

see illustration, item: 103-045,11

[Name] [Note]

cylinder head cover

see illustration, item: 103-043,11

[Name] [Note] [Model info] [QTY]

Camshaft Outlet

D >> - 02.11.2008* 4motion 1

[Name] [Note] [QTY]

Camshaft Outlet 1

[Name] [Note] [QTY]

Camshaft Outlet

D - 03.11.2008>>* 1

[Name] [Note] [Model info] [QTY]

Camshaft Outlet

D >> - 02.11.2008* fr.wheel drv 1

[Name] [Note] [QTY]

camshaft adjuster unit Z=36 1

[Name] [QTY]

Sleeve 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X1,25X89X30 1

[Name] [Note] [QTY]

Chain sprocket Z=36 1

[Name] [Note] [QTY]

Hexagon bolt M10X1,25X30 1

[Name] [QTY]

roller rocker arm 16

Replacements: 036109411K

[Name] [QTY]

roller rocker arm 16

Replacements: 036109411J

[Name] [QTY]

equalizing element, hydraulic 16
