Clutch

Clutch

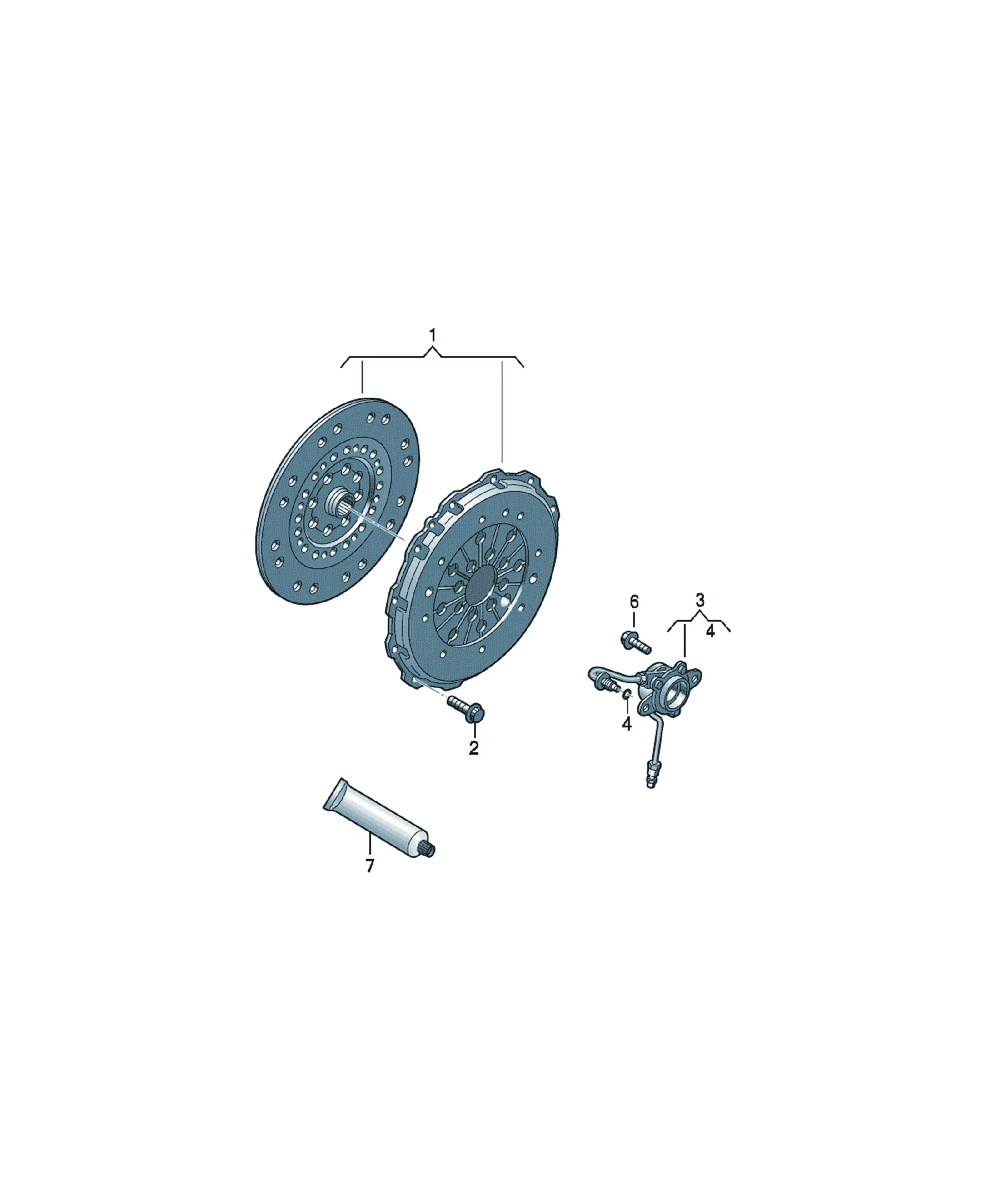

Assembly diagrams

2 diagrams

Parts

28 parts

06F141015A Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK 4motion 1
03L141016EX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D - 25.10.2010>>* CBAA,CBAB, 1
CBBA,CBBB,
CFFA,CFFB,
CFGB
+PR:0EU
Replacements: 03L141018DX; 0A5141671L
06J141015D Offers

[Name] [Note] [QTY]
Clutch plate and pressure plate 240MM 1
D >> - 31.05.2010
Replacements: 06J141015L
022141015SX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK CFFB,CFFD 1
+PR:0EN
Replacements: 022141015S
022141015S Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK CFFB,CFFD 1
+PR:0EN
03L141015AX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D >> - 07.09.2008* CBAA,CBAB 1
+PR:0EU
Replacements: 03L141016EX
03L141016C Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS CFFB,CFFD 1
+PR:0EN
Replacements: 03L141018G; 0A5141671L
03L141016CX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS CFFB,CFFD 1
+PR:0EN
Replacements: 03L141018GX; 0A5141671L
03L141016E Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D - 25.10.2010>>* CBAA,CBAB, 1
CBBA,CBBB,
CFFA,CFFB,
CFGB
+PR:0EU
Replacements: 03L141018D; 0A5141671L
03L141015JX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK
D - 08.09.2008>>*- 25.10.2010* CBAA,CBAB, 1
CBBA,CBBB,
CFFA,CFFB,
CFGB
+PR:0EU
Replacements: 03L141015J
03L141015J Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK
D - 08.09.2008>>*- 25.10.2010* CBAA,CBAB, 1
CBBA,CBBB,
CFFA,CFFB,
CFGB
+PR:0EU
03L141015CX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D >> - 07.09.2008* CBBA,CBBB 1
+PR:0EU
Replacements: 03L141016EX
03L141015C Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D >> - 07.09.2008* CBBA,CBBB 1
+PR:0EU
to use for: 03L105266G
Replacements: 03L141016E
06F141015AX Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK 4motion 1
Replacements: 06F141015A
06J141015LX Offers

[Name] [Note] [QTY]
Clutch plate and pressure plate 240MM 1
D - 01.06.2010>>
Replacements: 06J141015QX
03L141015A Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM SACHS
D >> - 07.09.2008* CBAA,CBAB 1
+PR:0EU
Replacements: 03L141016E
06J141015L Offers

[Name] [Note] [QTY]
Clutch plate and pressure plate 240MM 1
D - 01.06.2010>>
Replacements: 06J141015Q
06J141015DX Offers

[Name] [Note] [QTY]
Clutch plate and pressure plate 240MM 1
D >> - 31.05.2010
Replacements: 06J141015LX
06F141015 Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK fr.wheel drv 1
06F141015X Offers

[Name] [Note] [Model info] [QTY]
Clutch plate and pressure plate 240MM LUK fr.wheel drv 1
Replacements: 06F141015
N90320701 Offers

[Name] [Note] [QTY]
12-point head bolt M7X14 6
0A5141671R Offers

[Name] [Note] [QTY]
release bearing 1
with hydraulic operation
only to be used for: 03L 141 015 A
03L 141 015 AX
03L 141 016 E
03L 141 016 EX
03L 141 015 C
03L 141 015 CX
03L 141 015 J
03L 141 015 JX
022 141 015 S
022 141 015 SX
0A5141671N Offers

[Name] [Note] [QTY]
Clutch release bearing with hydraulic actuation metal 1
with hydraulic operation
only to be used for: 03L 141 018 D
03L 141 018 DX
03L 141 018 H
03L 141 018 HX
03L 141 018 G
03L 141 018 GX
Replacements: 0A5141671S
0A5141671R Offers

[Name] [QTY]
release bearing 1
with hydraulic operation
0A5141143A Offers

[Name] [Note] [QTY]
seal ring 9,25X6,07X1,78 1
02F141143A Offers

[Name] [Note] [QTY]
seal ring 9,25X6,07X1,78 1
Replacements: 1K0798741
N90847002 Offers

[Name] [Note] [QTY]
bolt, hex. hd. with shoulder, self-locking M7X25 3
G000100 Offers

[Name] [Note] [QTY]
Grease for clutch plate splines 80G X
