Brake booster

Brake servo vacuum line

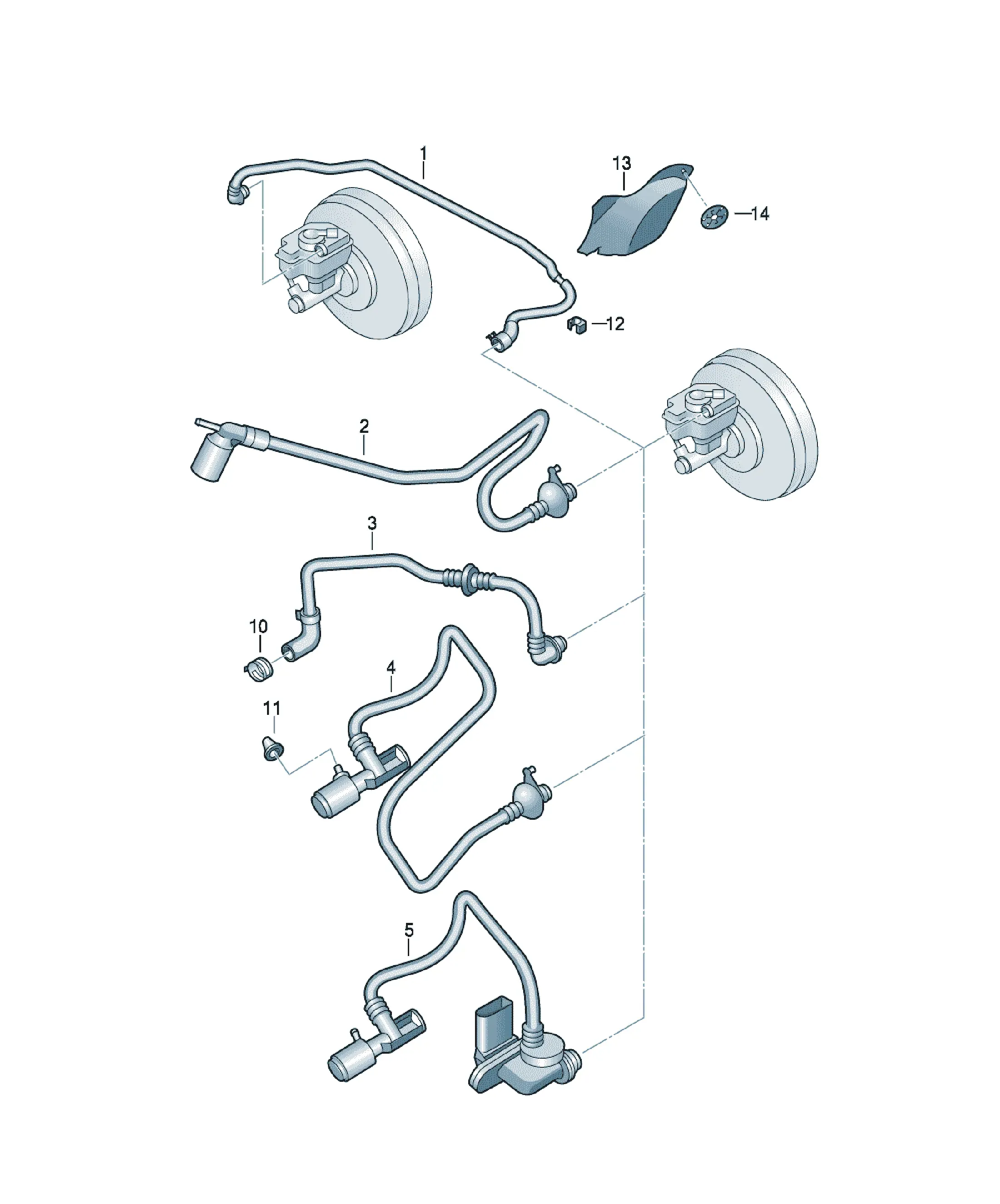

Assembly diagrams

4 diagrams

14 parts

5N2612041E Offers

[Name] [Note] [QTY]
Vacuum pipe rhd 1
Replacements: 5N2612041F
N90926401 Offers

[Name] [Note] [QTY]
Spring band clamp 19X12 X
056129777 Offers

[Name] [Note] [QTY]
Cap closure 4MM 1
rhd
5N2612797 Offers

[Name] [Note] [QTY]
Clip rhd 3
[Name] [Note] [Model info] [QTY]
Heat reflective mat
see illustration, item: 721-025,34 CAWB,CAWA 1
5N0612169 Offers

[Name] [QTY]
Heat reflective mat 1
N90335005 Offers

[Name] [Note] [Model info] [QTY]
Clamping washer 5X30 CAWB,CAWA 2
Replacements: N 90335004
5N0612041L Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve CBAA,CBAB, 1
CBBB,CBBA
Replacements: 5N0612041BJ
5N0612041M Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve BWK,CAVA
D >> - 03.11.2008* 1
5N0612041Q Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve BWK,CAVA
D - 03.11.2008>>* 1
5N0612041R Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve CAWB,CAWA, 1
CCTA+PR:1AT
Replacements: 5N0612041AK
5N0612041R Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve "ROK":CCTA+ 1
PR:1AT
Replacements: 5N0612041AK
5N0612041AN Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve "MEX":CCTA+ 1
PR:1AS
Replacements: 5N0612041AS
5N0612041AE Offers

[Name] [Model info] [QTY]
Vacuum pipe with non-return valve "J..":CAWB, 1
CAWA+PR:1AS
Replacements: 5N0612041AN
